DiGiCo SD12
2-32

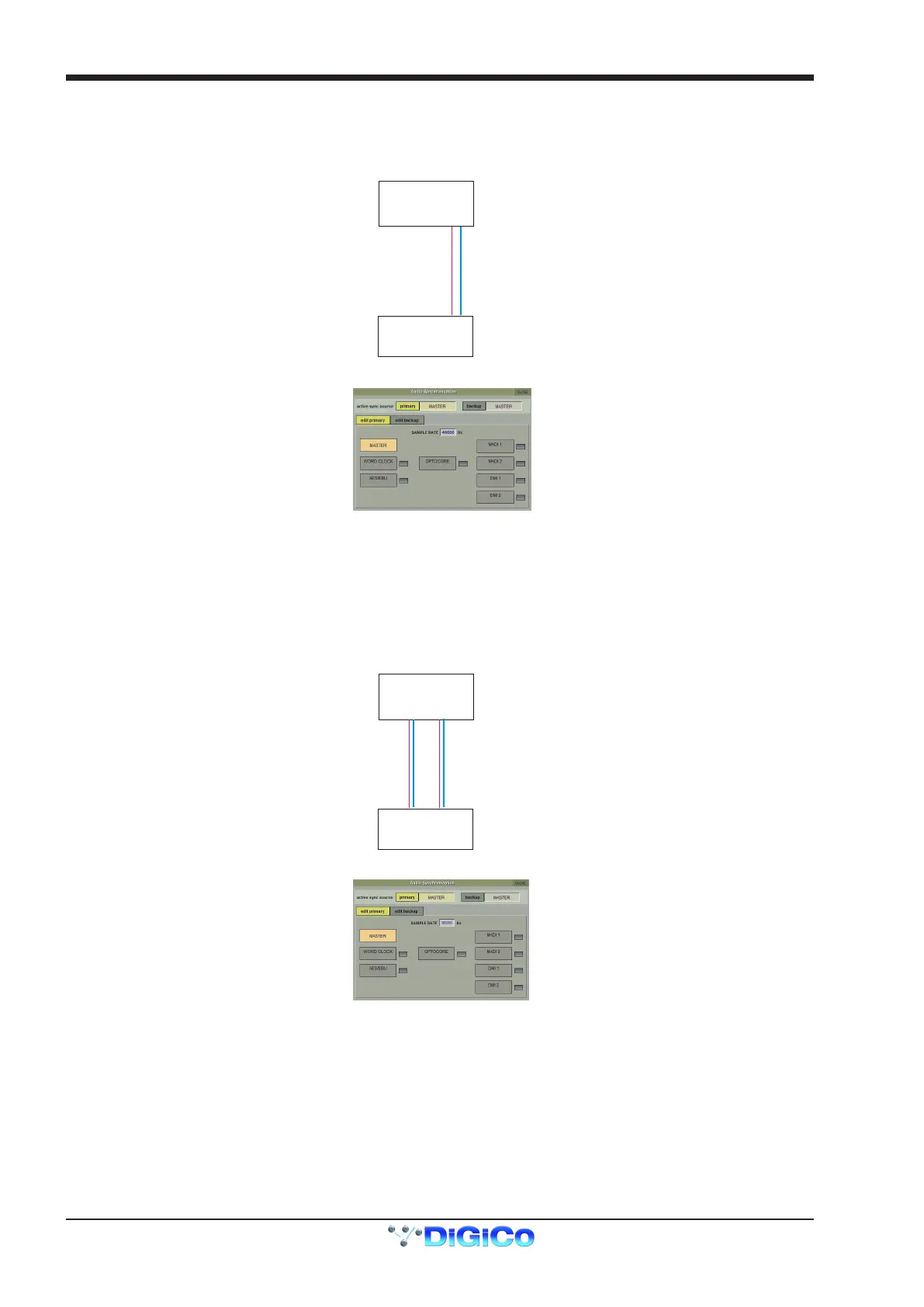

DMI MADI B to D2-Rack, SD-Rack or SD-MINIRack at 48KHz
Connect DMI card BNC IN socket A to D2-Rack BNC OUT MAIN socket
Connect DMI card BNC OUT socket A to D2-Rack BNC IN MAIN socket
D2-Rack
Single SD 12 to D2-Rack with DMI MADI B Card at 48KHz
DMI MADI B PORT A
IN/OUT
BNC MAIN MADI
IN & OUT
CONNECTIONS
Audio Sync = MASTER
SD 12
DMI MADI B to D2-Rack, SD-Rack or SD-MINIRack at 96KHz
Connect DMI card BNC IN socket A to D2-Rack BNC OUT MAIN socket
Connect DMI card BNC OUT socket A to D2-Rack BNC IN MAIN socket
Connect DMI card BNC IN socket B to D2-Rack BNC OUT AUX socket
Connect DMI card BNC OUT socket B to D2-Rack BNC IN AUX socket
D2-Rack
Single SD 12 to D2-Rack with DMI MADI B Card at 96KHz
DMI MADI B PORT A
IN/OUT
DMI MADI B PORT B
IN/OUT
BNC
MAIN MADI
INPUT & OUTPUT
CONNECTIONS
BNC
AUX MADI
INPUT & OUTPUT
CONNECTIONS
Audio Sync = MASTER
SD 12
DMI MADI B to a Standard MADI device at 48KHz
Connect DMI card BNC IN socket A to Standard MADI device BNC OUT
Connect DMI card BNC OUT socket A to Standard MADI device BNC IN
DMI MADI B to a Standard MADI device at 96KHz
Connect DMI card BNC IN socket A to Standard MADI device CH 1-32 BNC OUT
Connect DMI card BNC OUT socket A to Standard MADI device CH 1-32 BNC IN
Connect DMI card BNC IN socket B to Standard MADI device CH 33-64 BNC OUT
Connect DMI card BNC OUT socket B to Standard MADI device CH 33-64 BNC IN
