Digifly AIR-BT - Page 10 Relax

AIR_Manual_506a_ENG_rev_1.pdf Page 20/96
3.6

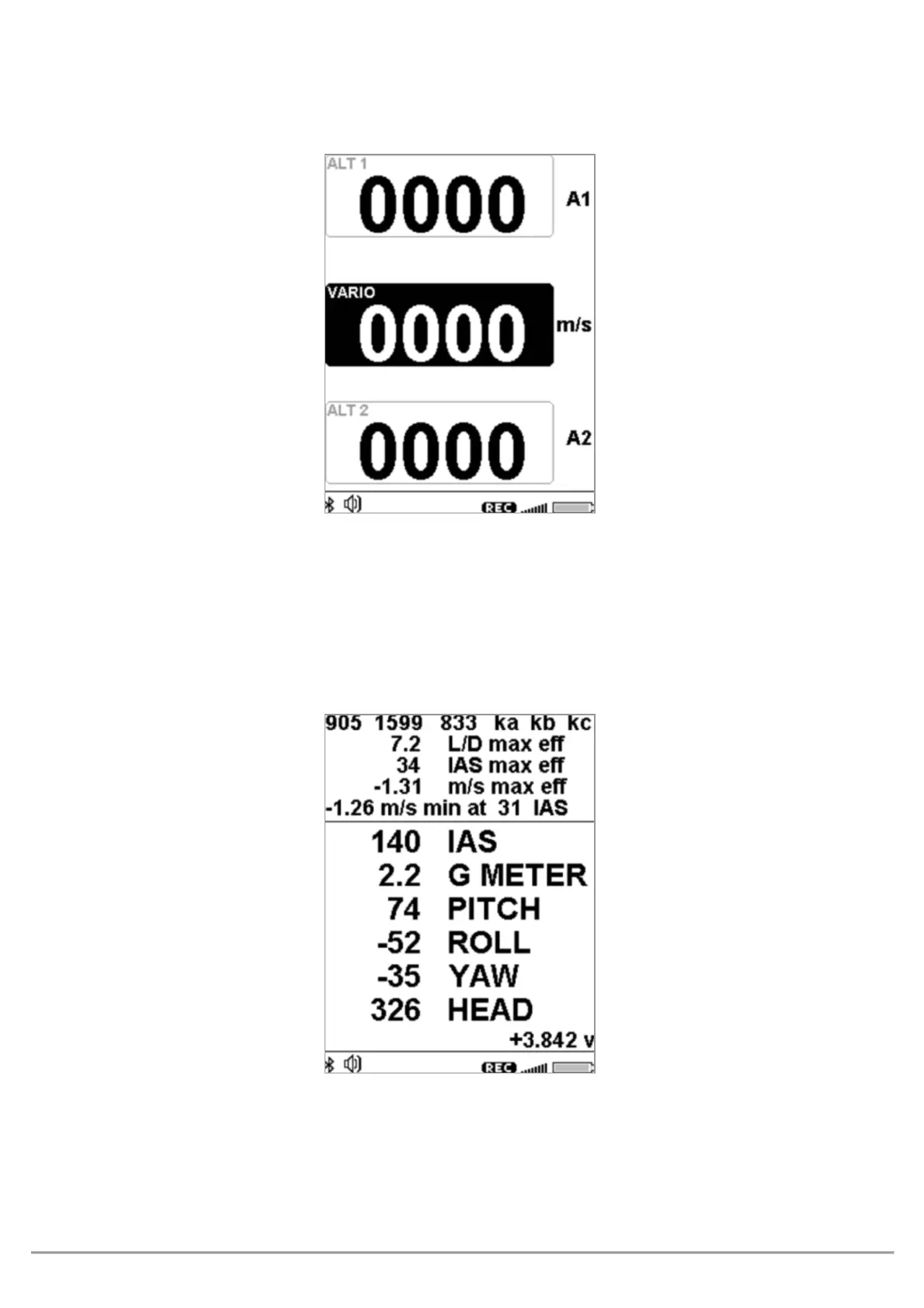

PAGE 10 RELAX
 Page 10 "
RELAX
" displays the most important information in very LARGE font size: A1 barometric altimeter,
Variometer , A2 barometric altimeter.
3.7
PAGE 11 AHRS
 Page 11 "
AHRS
" displays, from top to bottom, the following parameters:
 Polar data (if the Polar is enabled)
 Airspeed
 G-meter
 Pitch
 Roll
 Yaw
 Magnetic compass
 Battery level
