ASE 150 Operator’s Manual
36 Doc. 065207-02 9/08
NOTE The procedure for installing 30-mm filters in
stainless steel and zirconium cells is the same.
The photos in Figure 3-5
show a zirconium cell.

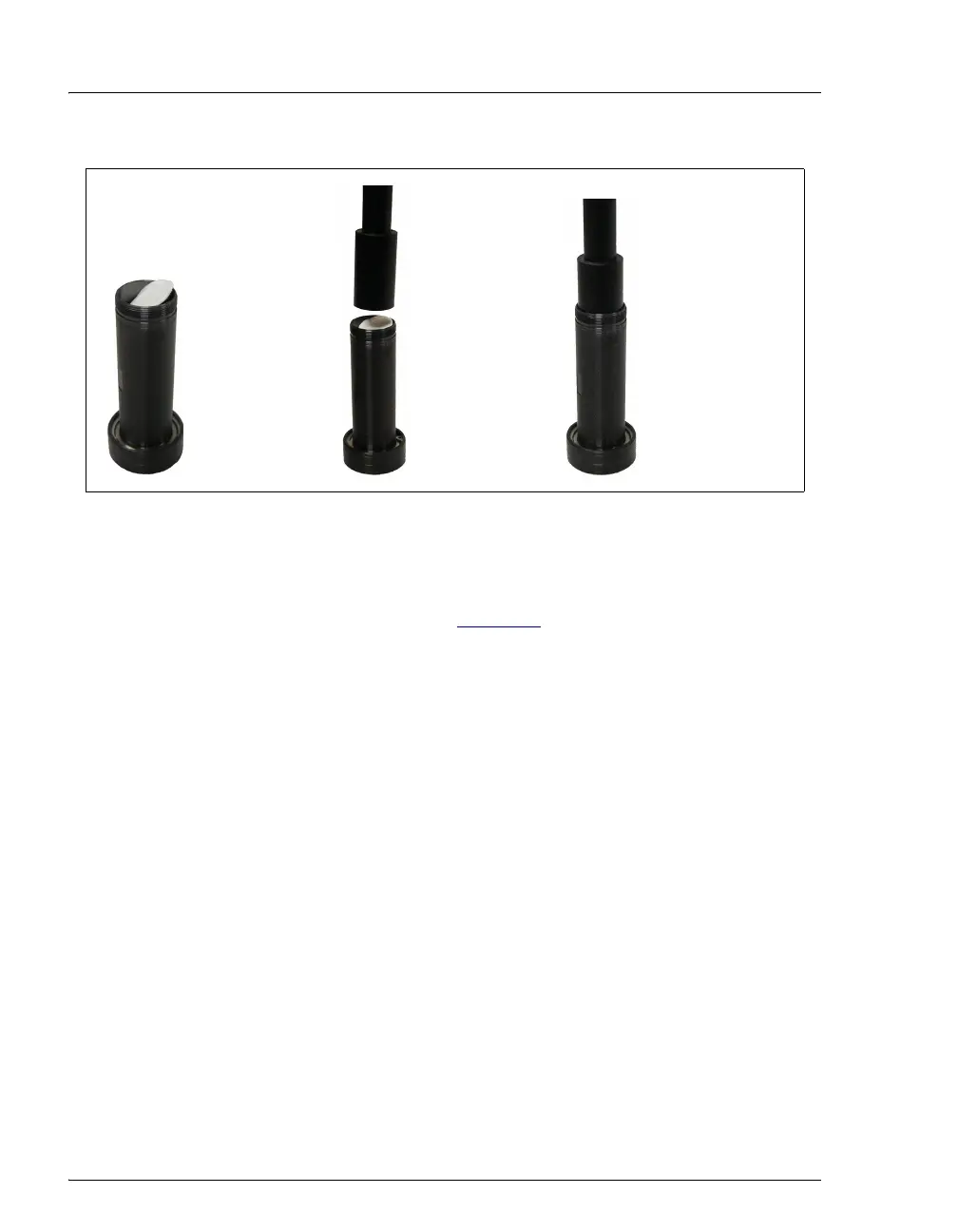

Figure 3-5. Installing a 30-mm Cell Filter in a 34-, 66-, or 100-mL Cell
Insert a 30-mm
filter into the
cell at a slight
angle.
Position the filter
insertion tool
(P/N 056929)
over the filter.
Slowly push the
insertion tool
straight into the
cell.
Push down until
the filter is in full
contact with the
end cap.
