AIM 2 Operation Manual

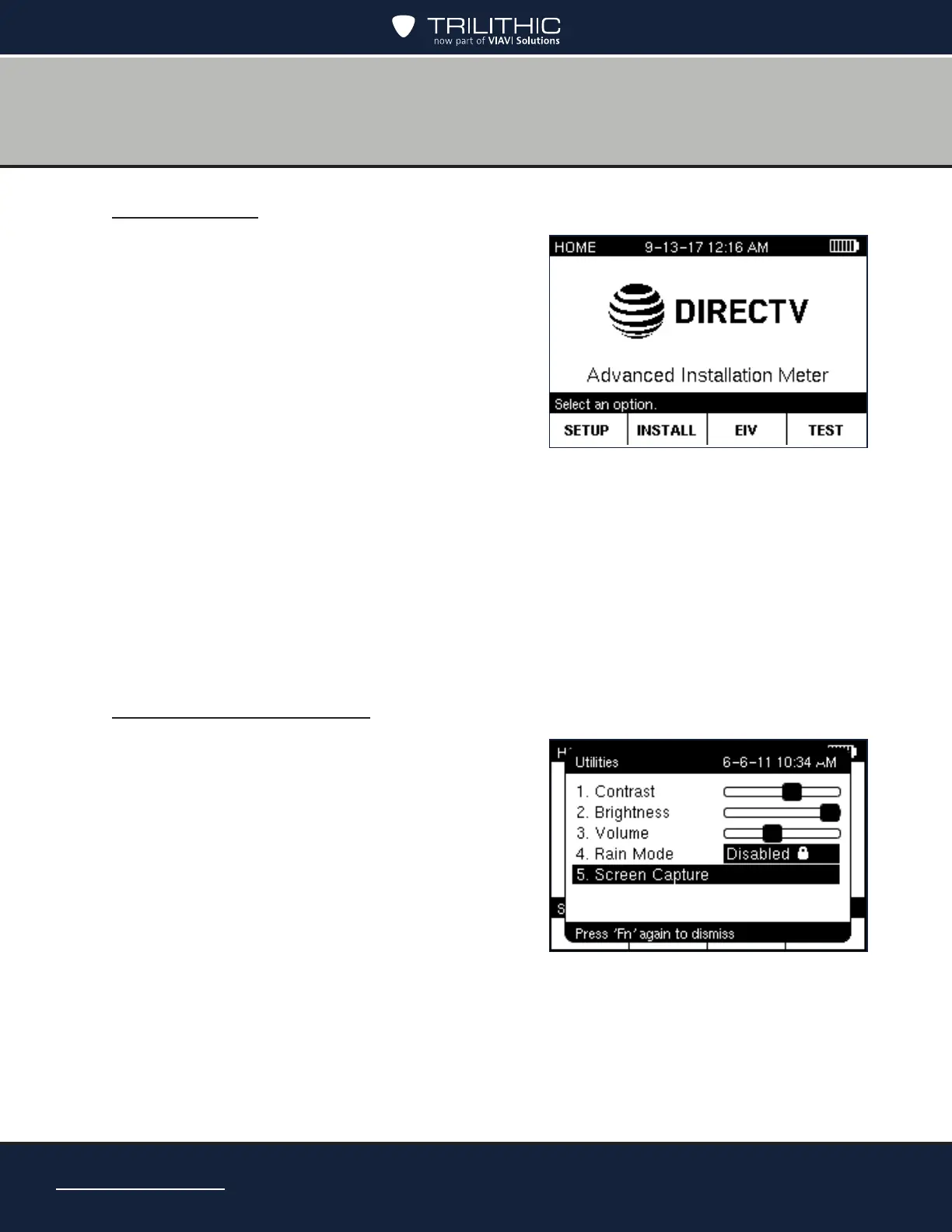

HOME Screen
The HOME screen lets you access the AIM’s main
features. You can press the HOME button at any
time to access the HOME screen.
The HOME screen provides four softkeys that
correspond to each of the main features of the
AIM:
• SETUP – Lets you set up the information for
a job. See Chapter 5: Setting Up a Job.
• INSTALL – Guides you through the steps
for aligning and performing follow-up
Extended Installation Verication (EIV) for each ODU. See Chapter 6: Installing an
ODU.
• EIV – Guides you through the steps for performing Extended Installation Verication
(EIV) at the ODU or another location to help you troubleshoot a problem. See
Chapter 7: Performing EIV.
• TEST – Lets you run network tests to help you troubleshoot a problem with an
installation. See Chapter 8: Performing Other Network Tests.
Capturing a Screenshot
If at any time you encounter a screen you want to
save for reference later, you can take a screenshot
and save it as a record.
You can capture a screen by either of these ways:
• Press the Function button and then 5
• Press Function, use the up/down arrow
buttons to highlight Screen Capture, then
press OK
The screenshot is automatically saved as a record
on the AIM. For instructions on viewing a screenshot, see the Viewing Records section.
