Page 78
AIM 2 Operation Manual

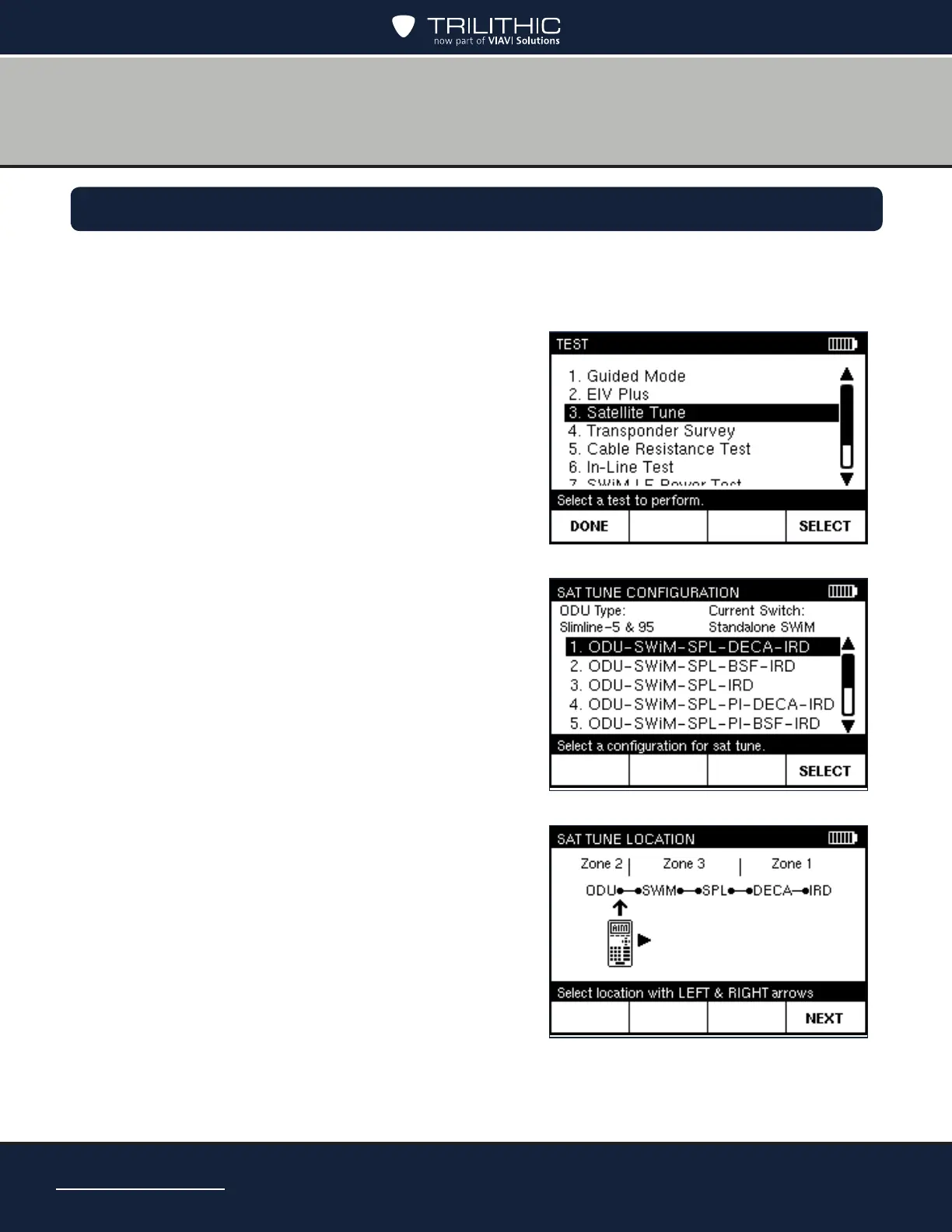

Performing a Satellite Tune Test
You can use the AIM’s Satellite Tune feature to tune to any DIRECTV transponder. Connecting
the AIM in different locations in the distribution network, you can progressively test each
segment of the connection between the ODU and the IRD to locate a problem.
1. Set up the job for the installation. See the
Starting a Job section in Chapter 5.
2. From the HOME screen, press TEST to go to
the TEST screen.
3. Highlight Satellite Tune and press SELECT
to go to the SAT TUNE CONFIGURATION
screen.
4. Highlight the equipment conguration for the
installation and press SELECT to go to the SAT
TUNE LOCATION screen.
5. Use the left/right arrow buttons to position the
image of the AIM under the location where you
are testing.
