Page 61
AIM 2 Operation Manual
www.trilithic.com
Performing EIV
Chapter 7
Overview
Extended Installation Verication (EIV) can be performed at any point in the installation to
quickly conrm that the installation is satisfactory for all supported orbital slots. EIV is an easy
way to pinpoint any potential problems with the installation. The AIM guides you through the
steps for the testing.
1. Set up the job for the installation. See the Starting a Job section in Chapter 5.

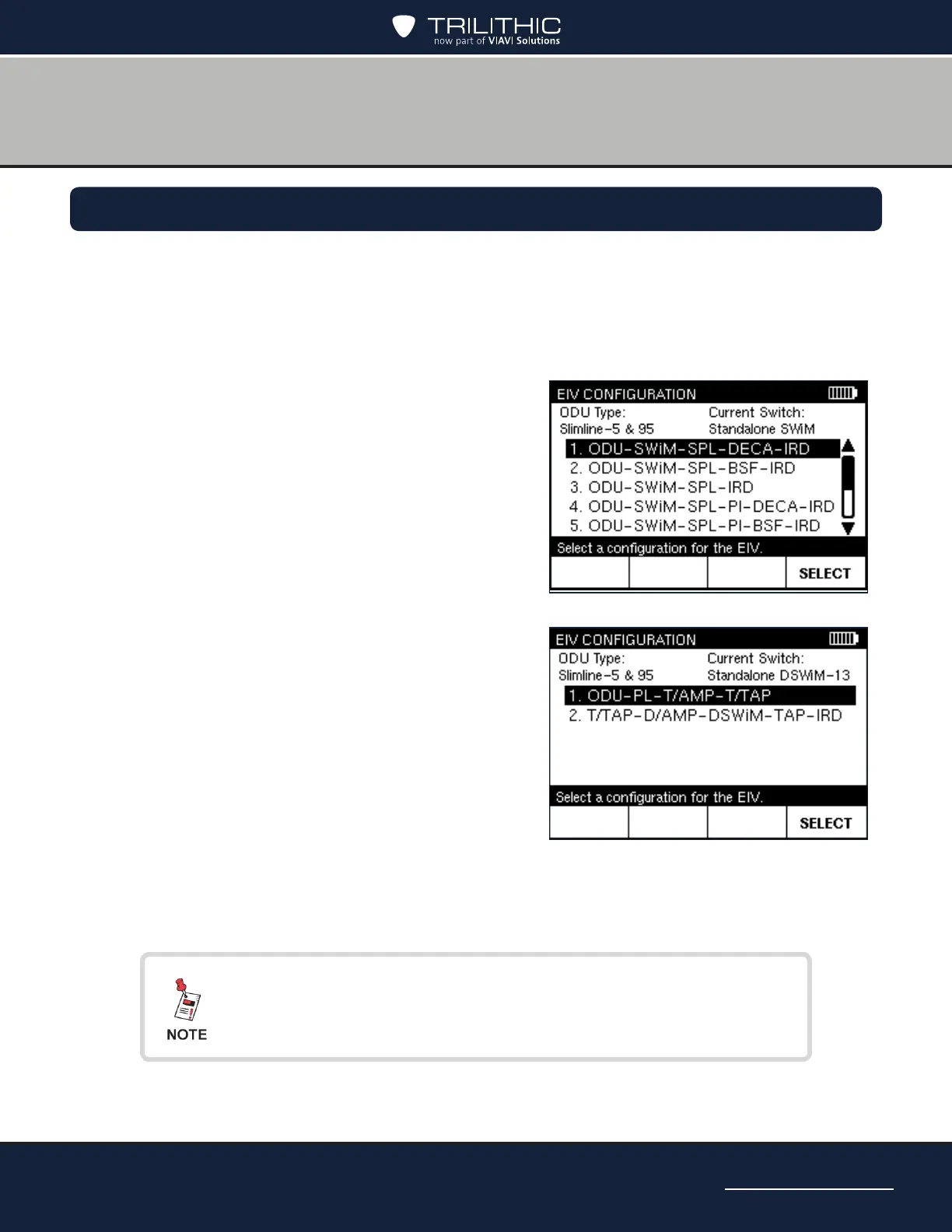

2. From the HOME screen, press EIV to go to the
EIV CONFIGURATION screen.
3. Highlight the equipment conguration for the
installation and press SELECT to go to the EIV
LOCATION screen.
If the installation includes a DSWiM-13, the EIV
CONFIGURATION screen shows two location paths, one from
the ODU to the T/TAP, and one from the T/TAP to the IRD.
