Page 62
AIM 2 Operation Manual

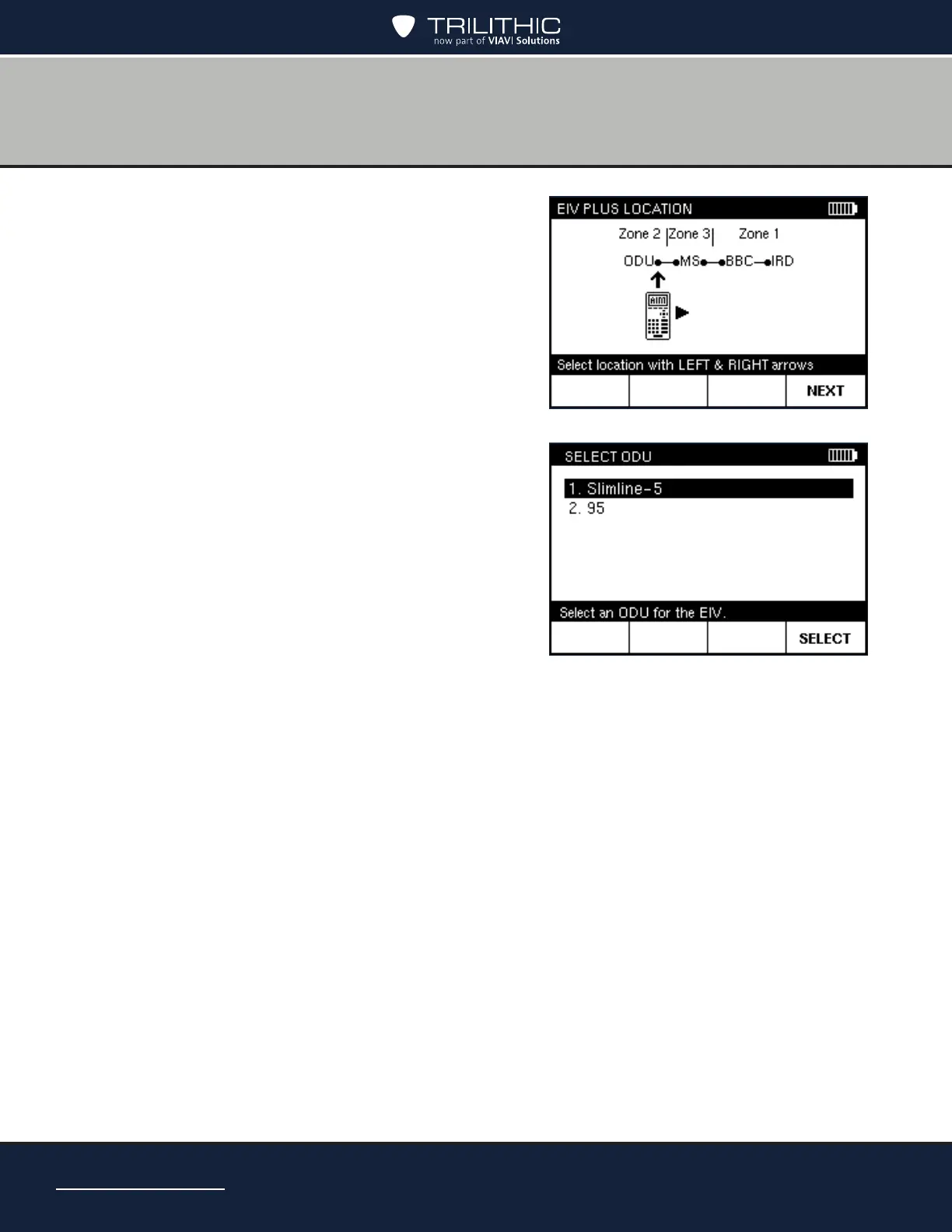

4. Use the left/right arrow buttons to position the
image of the AIM under the location where you
are testing.
5. Connect the AIM ODU F connector at the
location in the distribution network where you
want to test. Then press NEXT to go to the EIV
screen.
To test between the ODU and the multiswitch,
disconnect the cable connecting the ODU to
the multiswitch and connect it to the AIM’s ODU
F connector.
If the installation includes two ODUs, the
SELECT ODU screen appears. Highlight the
ODU for which you want to perform EIV and
press SELECT to go to the EIV screen.
