DirecTV Advanced Installation Meter 2 - Task A: Installation Setup

Page 53
AIM 2 Operation Manual

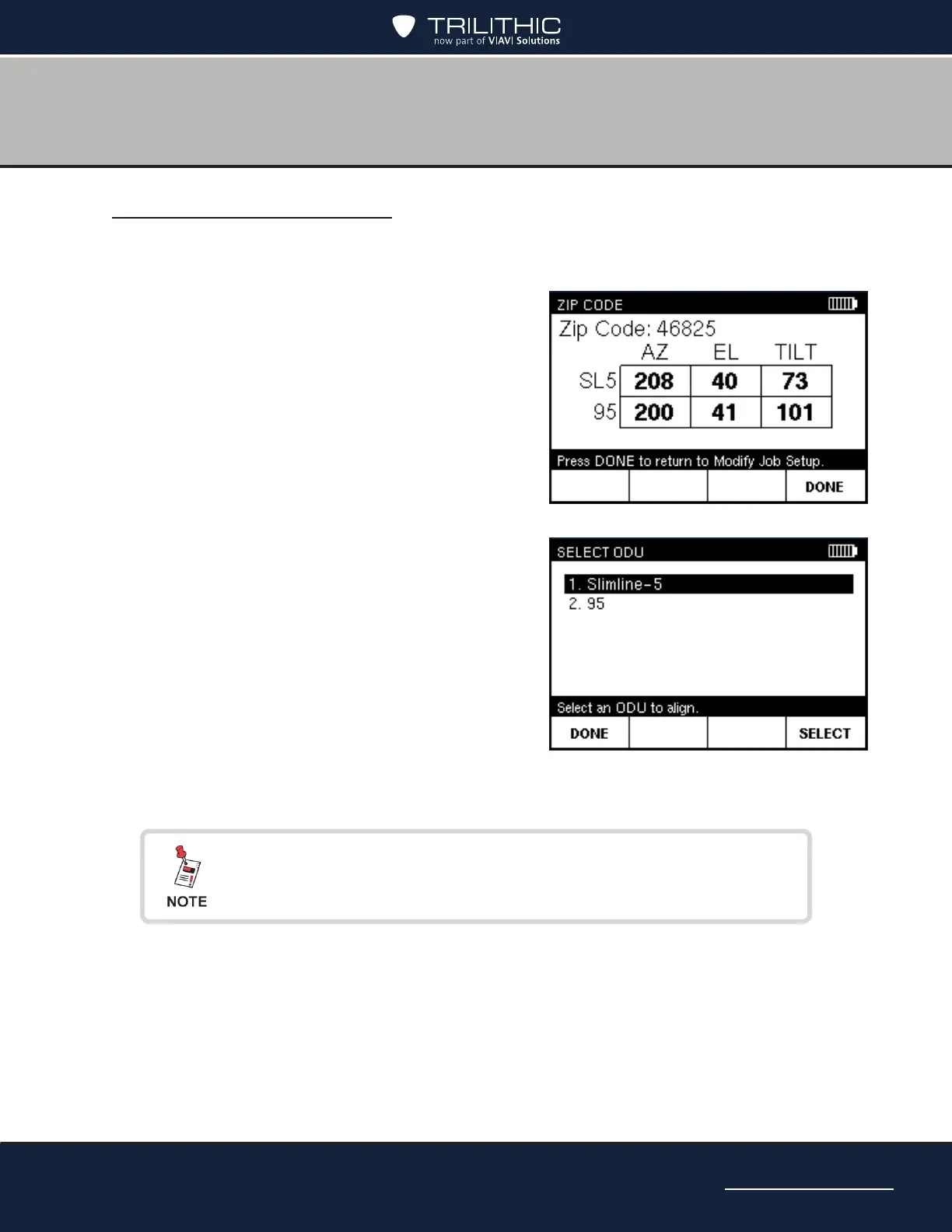

Task A. Installation Setup
1. Set up the job for the installation. See the Starting a Job section in Chapter 5.
2. From the HOME screen, press INSTALL.
The PRE-CONFIGURE ODU screen appears
showing the default azimuth and elevation
coordinates for the job. If appropriate, the
default tilt coordinate also appears.
3. Perform the ODU site survey. Using the AIM
azimuth and elevation coordinates, conrm that
the selected location has a clear line-of-sight
to the supported orbital slots (see the ODU
Installation Tasks table on the previous page).
4. Install the ODU according to the DIRECTV
procedure.
5. Connect the AIM’s ODU F Connector to the
ODU’s LNB output.
6. Press NEXT on the PRE CONFIGURE ODU
screen.
• If the installation includes two ODUs, the
SELECT ODU screen appears. Highlight
the ODU to align and press SELECT to
continue.
The default coordinates for the job are based on the ODU type
and zip code selected for the job.
