DirecTV Advanced Installation Meter 2 - Performing Post-Alignment EIV

Page 58
AIM 2 Operation Manual
Performing EIV Following ODU Installation
When you complete the alignment process for the ODU, the EIV AT ODU screen appears.
You can:
• Immediately perform Extended Installation
Verication (EIV) on the ODU that you just
aligned. Follow the steps below.
• If the installation includes two ODUs, you
can press NEXT to return to the SELECT
ODU screen and align the other ODU.
• Press DONE to return to the HOME screen
and perform EIV later. For instructions, see
the Performing EIV section.
To perform the Extended Installation Verication
(EIV) for the ODU that you just aligned:

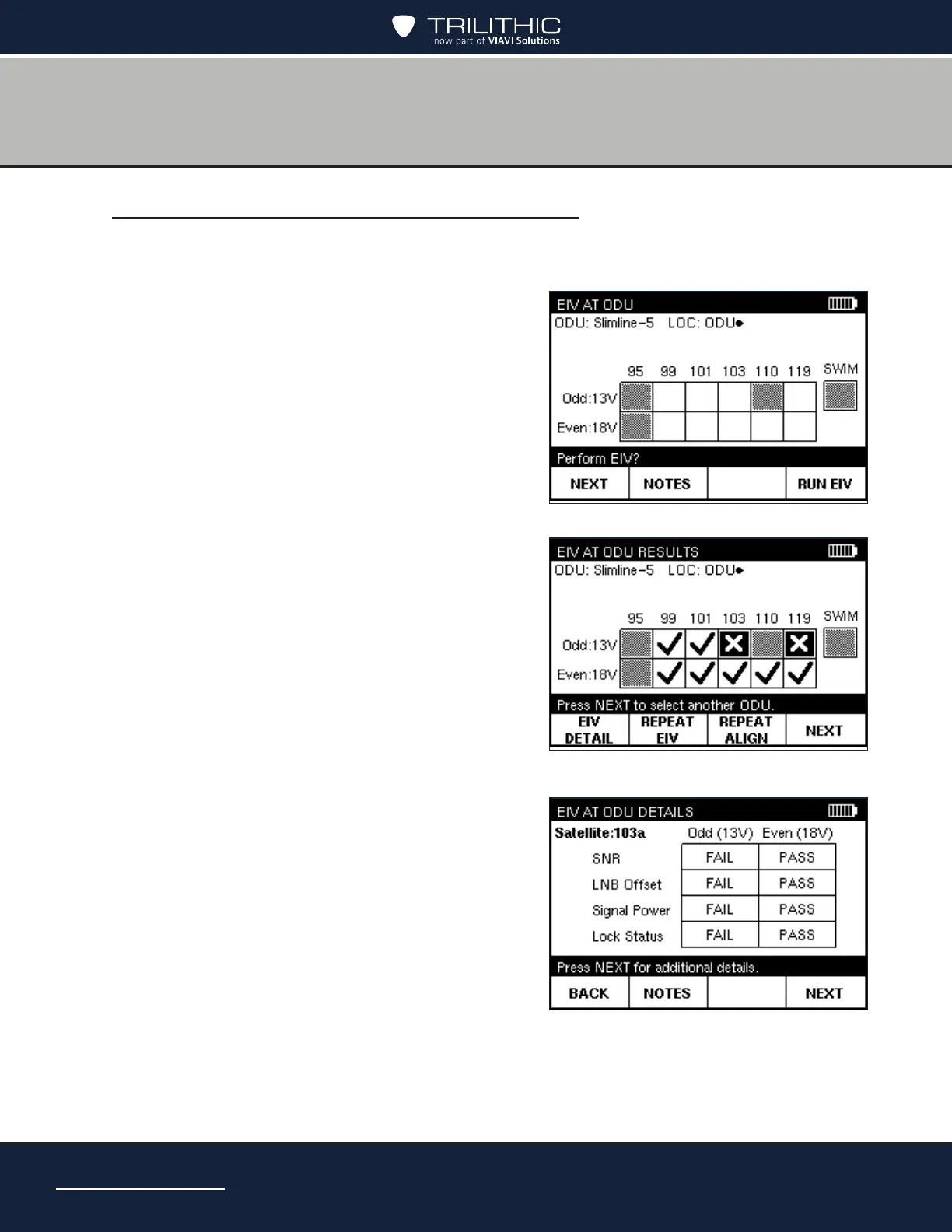

1. On the EIV AT ODU screen, press RUN EIV
and wait briey for the results.
2. On the EIV AT ODU RESULTS screen,
review the results for all supported orbital
slots and SWiM channels (if applicable).
A satisfactory result is indicated by a
checkmark. A problem is indicated by an X.
If a checkmark appears for all supported
orbital slots, the ODU alignment is
acceptable.
If X appears for an orbital slot, perform the
following steps:
• Press REPEAT EIV to conrm the
problem.
• If X appears again for one or more
orbital slots, you can press EIV
DETAIL to determine which tests
failed. Troubleshoot any failures
following the instructions provided by DIRECTV.
• To repeat the alignment process, press REPEAT ALIGN.
