Page 74
AIM 2 Operation Manual
If an EIV Plus test fails and the failure could be due to
inclement weather, you can use the Rain Mode feature
to continue troubleshooting with EIV Plus. Rain Mode
allows for a slight degradation in the RF signal in order
to account for environmental conditions, allowing
you to continue troubleshooting beyond the ODU. If
an EIV Plus test was run using Rain Mode, the Rain
Mode icon appears on the Results screen. While Rain
Mode accounts for environmental factors, it does not
increase the chance of passing Installation Verication
(IV) at the IRD.
For easy troubleshooting, you can use Guided Mode
to let the AIM’s built-in intelligence guide you through a
series of EIV Plus tests at recommended locations to
identify an issue. Or, you can perform EIV Plus at any
location in the distribution network for an installation,
following the steps below.
1. Start the job for the installation.

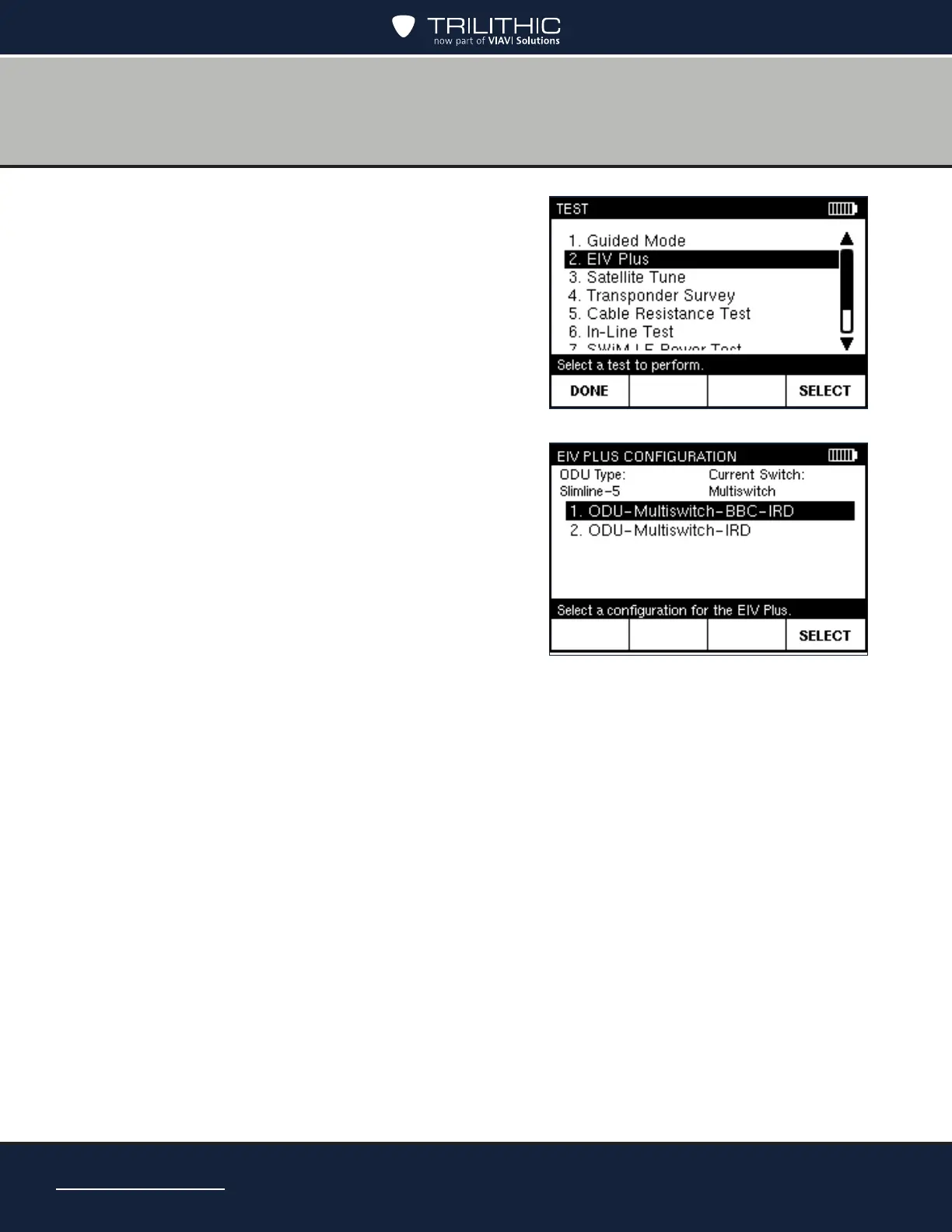

2. From the HOME screen, press TEST to go to
the TEST screen.
3. Highlight EIV Plus and press SELECT to go to the EIV PLUS CONFIGURATION
screen.
4. Highlight the equipment conguration for the installation and press SELECT to go to the
EIV PLUS LOCATION screen.
