Page 88
AIM 2 Operation Manual

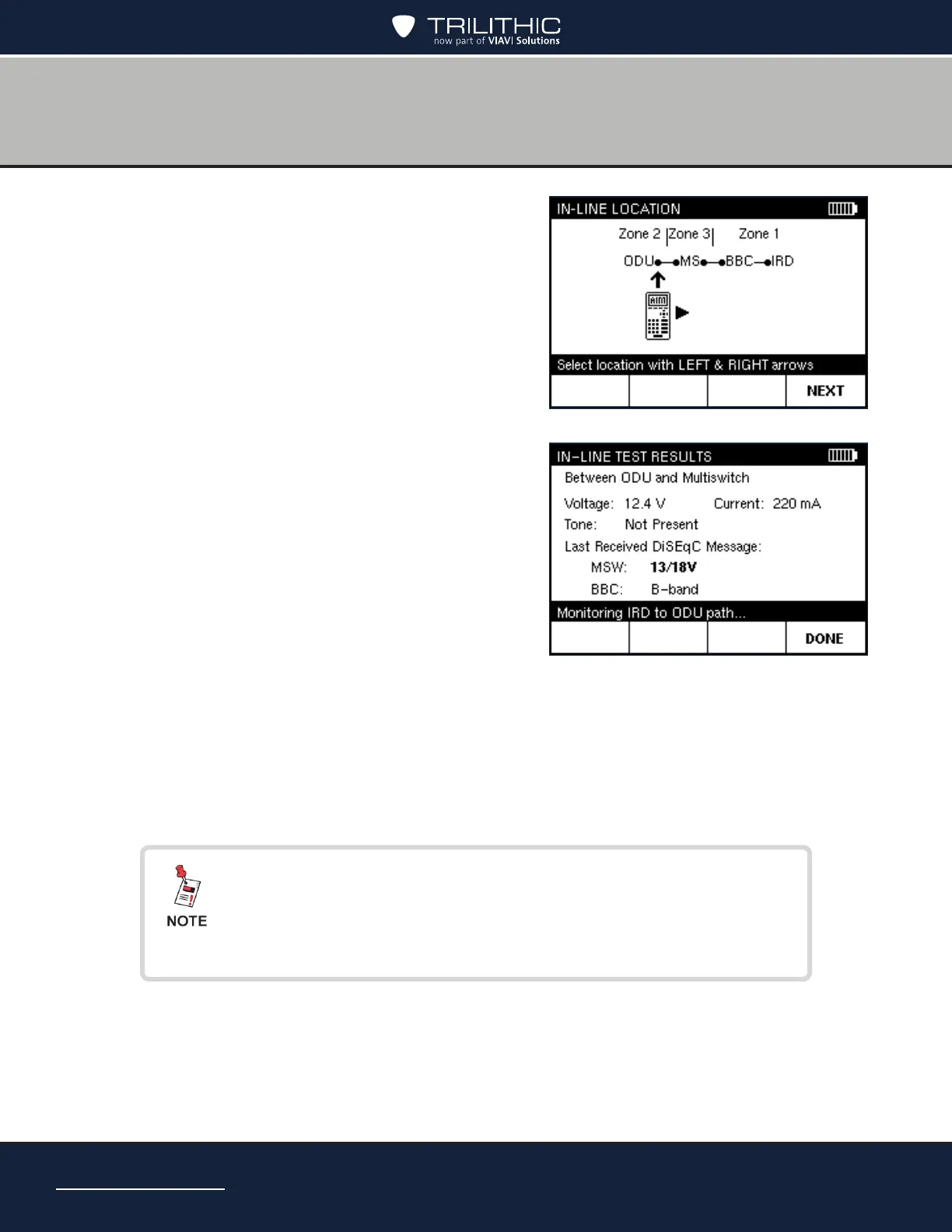

5. Use the left/right arrow buttons to position the
image of the AIM under the location where you
are testing.
6. Connect the AIM in series with the equipment
at the location where you want to test.
To test between the ODU and the multiswitch,
disconnect the cable connecting the ODU to
the multiswitch and connect it to the AIM’s ODU
F connector. Then connect the AIM’s IRD F
connector to the multiswitch.
7. Press NEXT and wait briey for the results of
the test.
8. On the IN-LINE TEST RESULTS screen,
review the results of the test. The screen
indicates whether the test passed or failed. The
screen also shows:
• Voltage supplied (in volts).
• Current supplied (in milliamps).
• If present, amplitude of the 22 kHz tone.
• Indication as to whether DiSEqC commands are being received by the
multiswitch (MSW) and BBC.
9. Troubleshoot any problems following the instructions provided by DIRECTV.
10. Press DONE to return to the TEST screen.
As messages are received from the multiswitch (MSW) and
BBC, the multiswitch port and BBC frequency range ash
bold. If no messages are received, “N/A” appears.
