CT100 inverter Detailed instructions of function parameters
97
switches to the opposite direction.

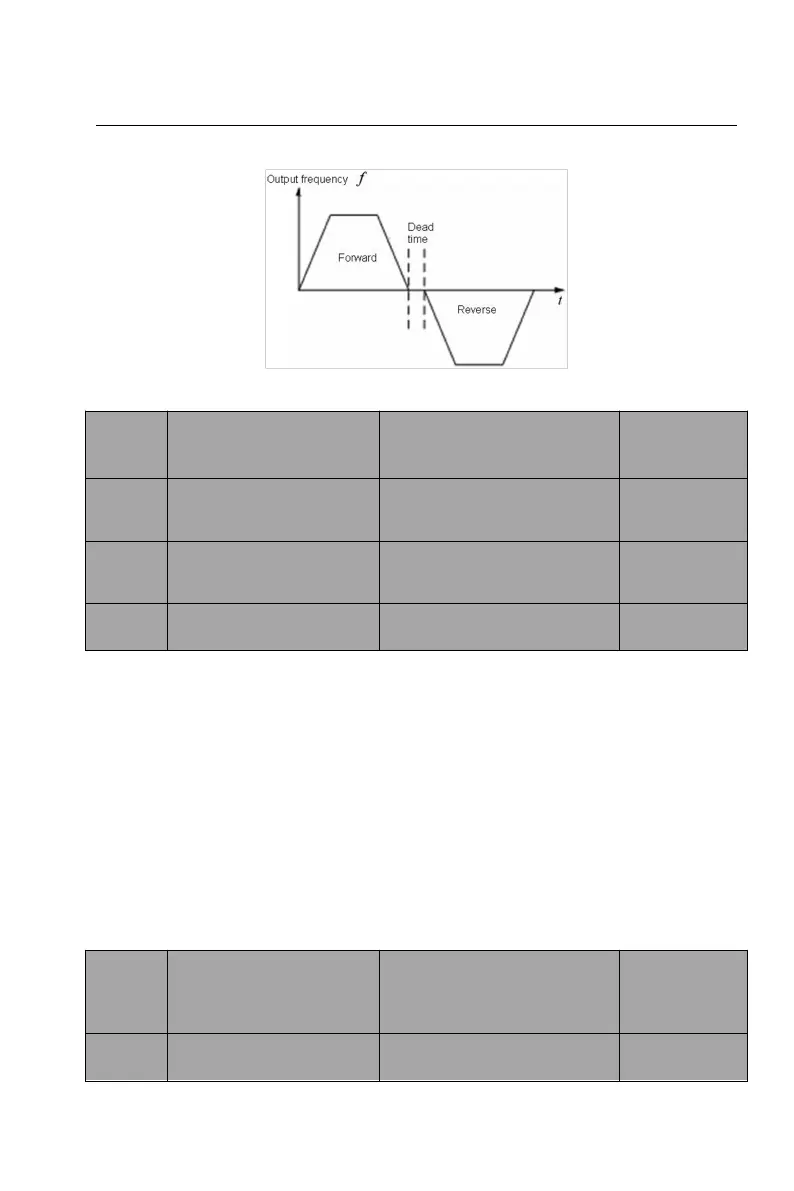

Figure 6-2 Forward and reverse dead time
F02.12
Starting frequency
before stop DC braking
Setting range: 0.00 ～
F00.06
Default
value:
0.00Hz
F02.13
Waiting time before
stop DC braking
Setting range: 0.0～60.0s
Default
value: 0.0s
F02.14
Stop DC braking
current
Setting range: 0.0 ～
160.0%
Default
value: 0.0%
F02.15
Stop DC braking time
Setting range: 0.0～60.0s
Default
value: 0.0s
Starting frequency of stop braking: During deceleration, start the DC braking
when running frequency reaches the starting frequency. If the value of stop
braking starting frequency is 0 or lower than starting frequency (P1.02), DC
braking is invalid; the variable frequency speed control system will coast to stop
when running frequency reaches starting frequency.
Waiting time before DC braking: The system will block output before reaching
starting frequency of stop braking during DEC and the DC braking will start after
the waiting time, which prevents over-current fault caused by DC braking at high
speed.
Stop DC braking current: The added DC braking current. The bigger the DC
braking current, the larger the braking torque.
Stop DC braking time: The time for DC braking
F02.16
Frequency for
deceleration to stop
(reserved)
Setting range: F00.08 ～
50.00Hz
Default
value:
0.00Hz
F02.17
Delay time of stop
Setting range: 0.0～100.0s
Default
value: 0.0s
