CT100 series inverters Product overview
15
e) CT100-4T-355G～CT100-4T-500G

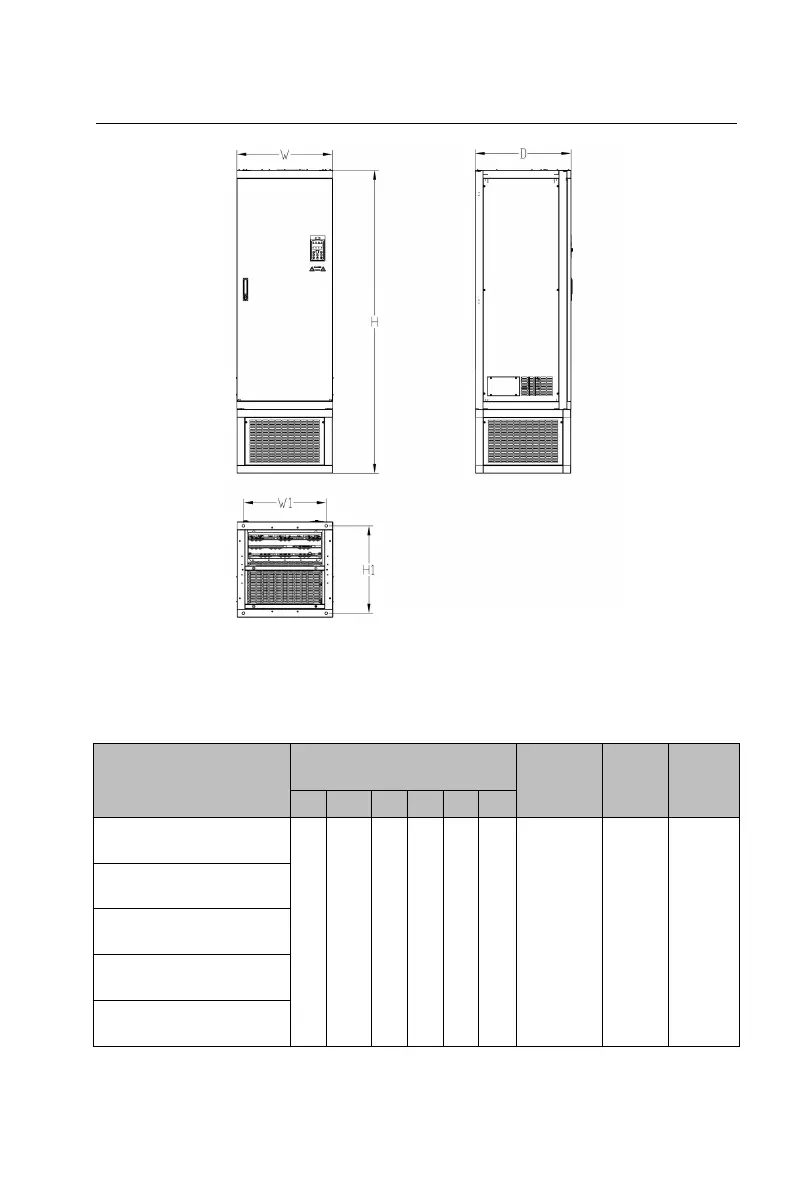

Figure 2-4 Structure diagram of the inverter
Table 2-3 Structure, mounting dimension and weight
Inverter model
Structure and mounting
dimension (mm)
Mounting
hole size
(mm)
Weight
(kg)
Cabinet
W
H
D
W1
H1
H2
CT100-2S-0.7G-B
126
186
155
115
175
---
5
1.6
C0
CT100-2S-1.5G-B
CT100-2S-2.2G-B
CT100-4T-0.7G-B
CT100-4T-1.5G-B
