D439E Service Manual 2. Engine Mechanical System (D439E)

Exhaust Manifold

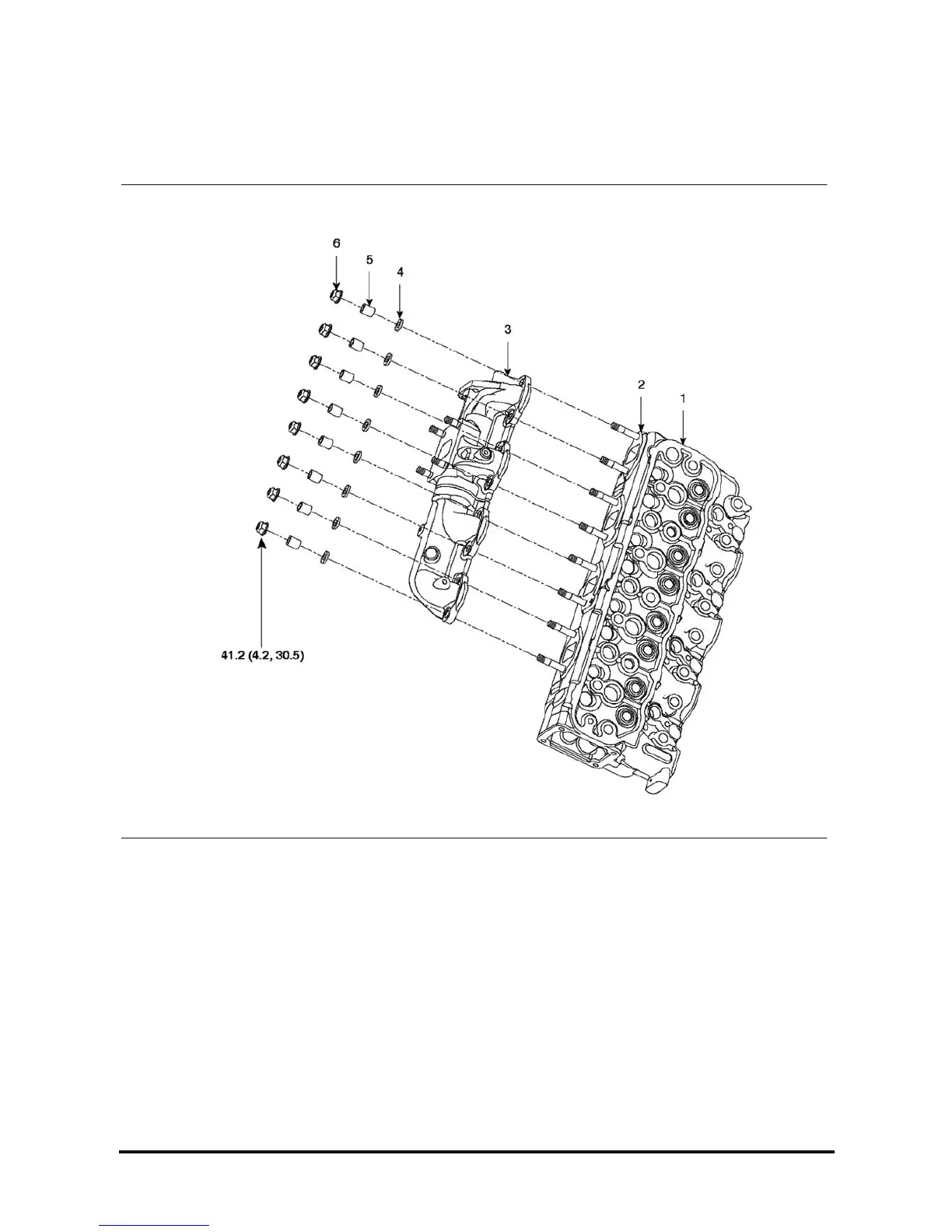

Components

1. Cylinder head assembly

2. Exhaust manifold gasket

3. Exhaust manifold assembly

4. Plain washer

5. Distance piece

6. Exhaust manifold self lock flange nut (M10 x 1.25)

Tightening Torque : Nm (kgf.m, lb-ft)
