D439E Service Manual 3. Engine Electrical System (D439E)
137

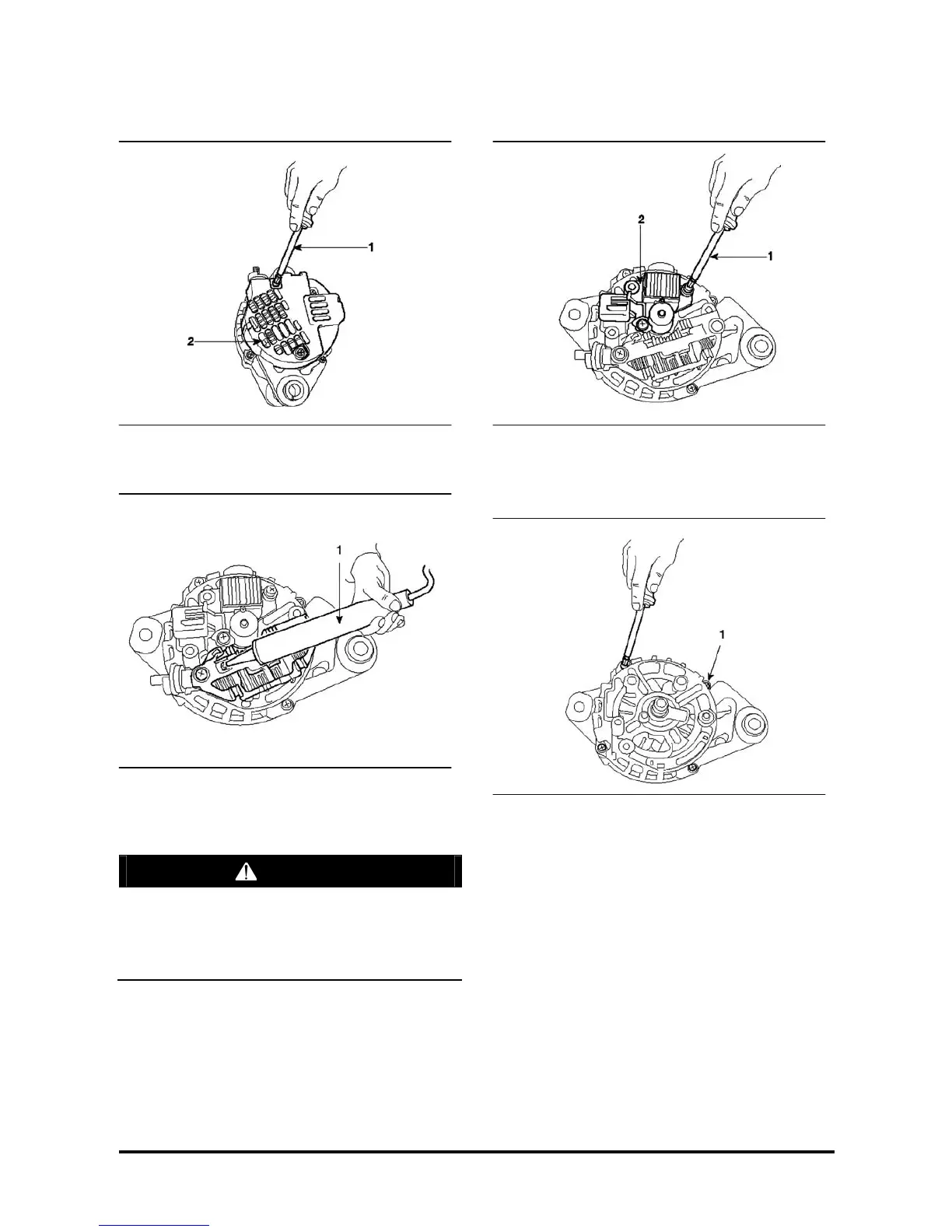

Disassembly
1. Remove rear cover (2) using a drive (1)
2. Remove the end portions of the 4 stator coils
soldered to the commutator main diodes using a
soldering tool.
CAUTION
a. Do not overheat the diodes for a long time
when soldering or unsoldering.
b. Be careful not to apply excessive force to
stator coils soldered to diodes.
3. Remove the commutator mounting screws using
a drive (1) so as to disassemble the commutator
(2).
4. Remove 4 rear-bracket-through-bolts.
NOTE : When removing rear bracket, insert (-) drive
(1) into the groove of the through bolt and then
separate the rear bracket.
