D439E Service Manual 3. Engine Electrical System (D439E)

136

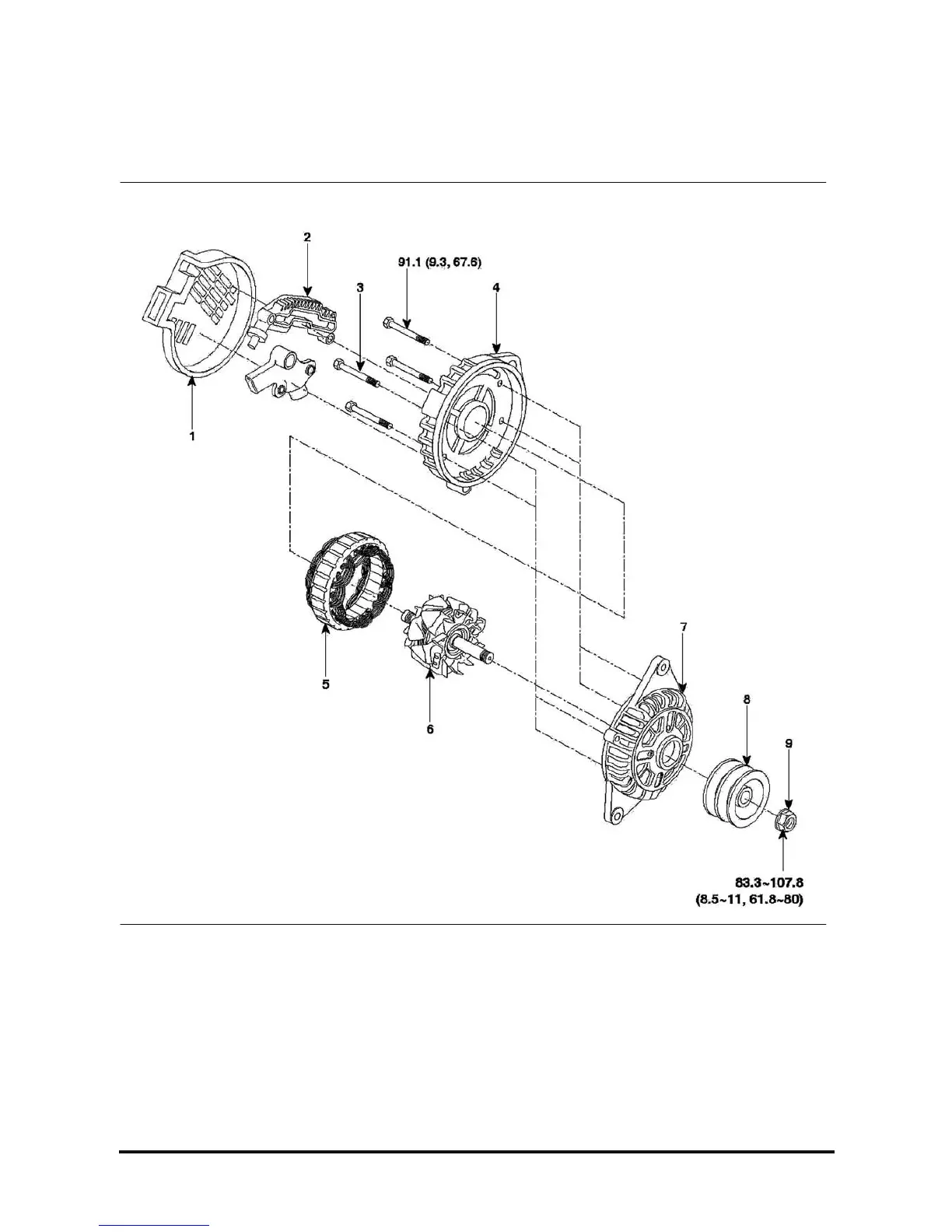

Alternator

Components

1. Rear cover

2. Commutator assembly

3. Rear bracket mounting bolt

4. Rear bracket

5. Stator

6. Rotor

7. Front bracket

8. Alternator pulley

9. Alternator pulley nut

Tightening Torque : Nm(kgf.m, lb-ft)
