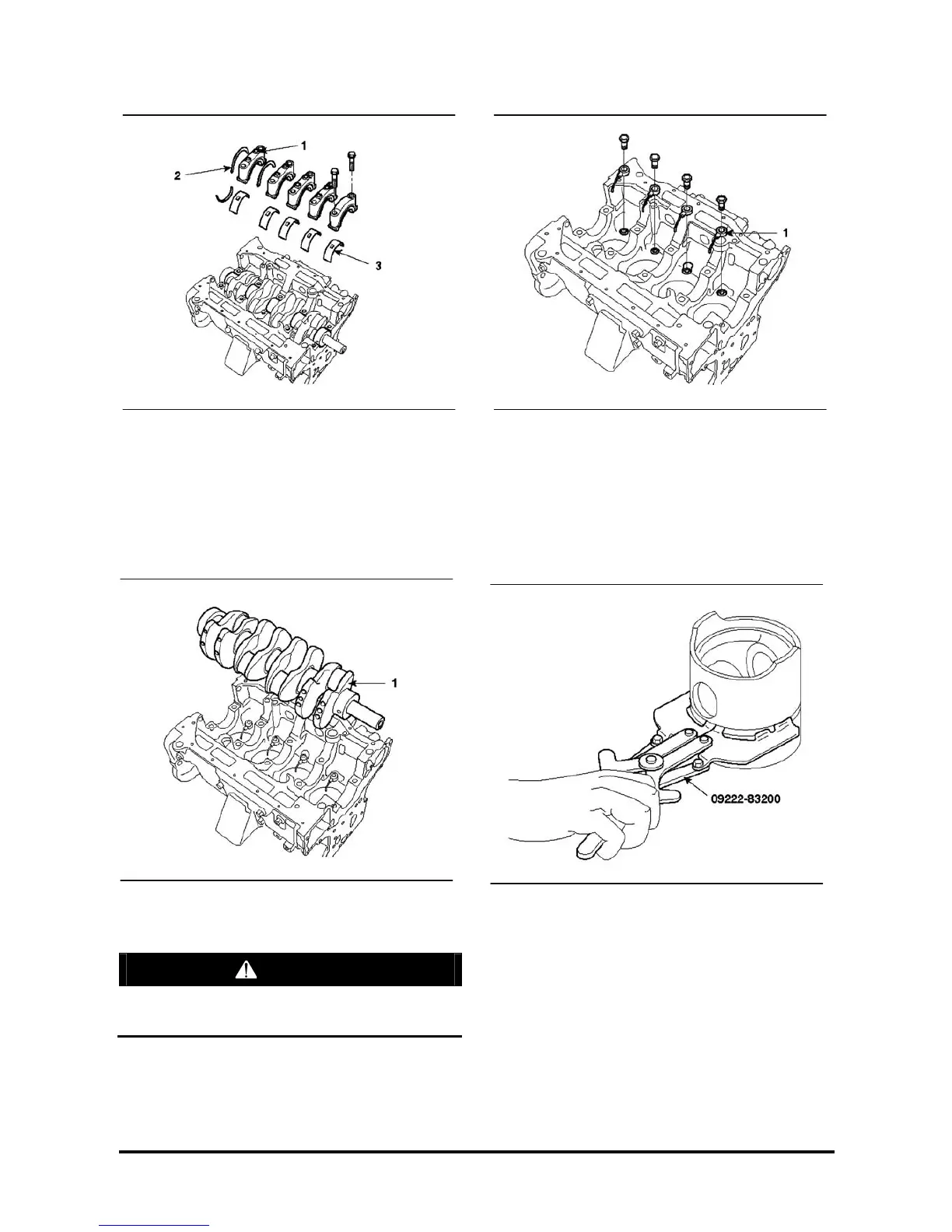

17. Remove the front, rear and main bearing caps.
a. Remove the front bearing cap and rear end
bearing cap. Remove the thrust plate (2) from
the rear-bearing cap (1).
b. Remove the main bearing cap (1) and bearing
(3).
18. Remove the crankshaft (1) from the cylinder
block.
CAUTION
Handle the crankshaft carefully so that the
joumal is not damaged.
19. Remove the oil jet (1) from the cylinder block.
Disassembly
Piston and Connecting Rod Assembly
1. Remove the piston ring using the special tool
(09222-83200).
