D439E Service Manual 5. Service Tool
299
CARB OBD-II
CARB OBD-II is to diagnose the power train of the vehicle which uses CARB OBD-II protocol.
CARB OBD-II

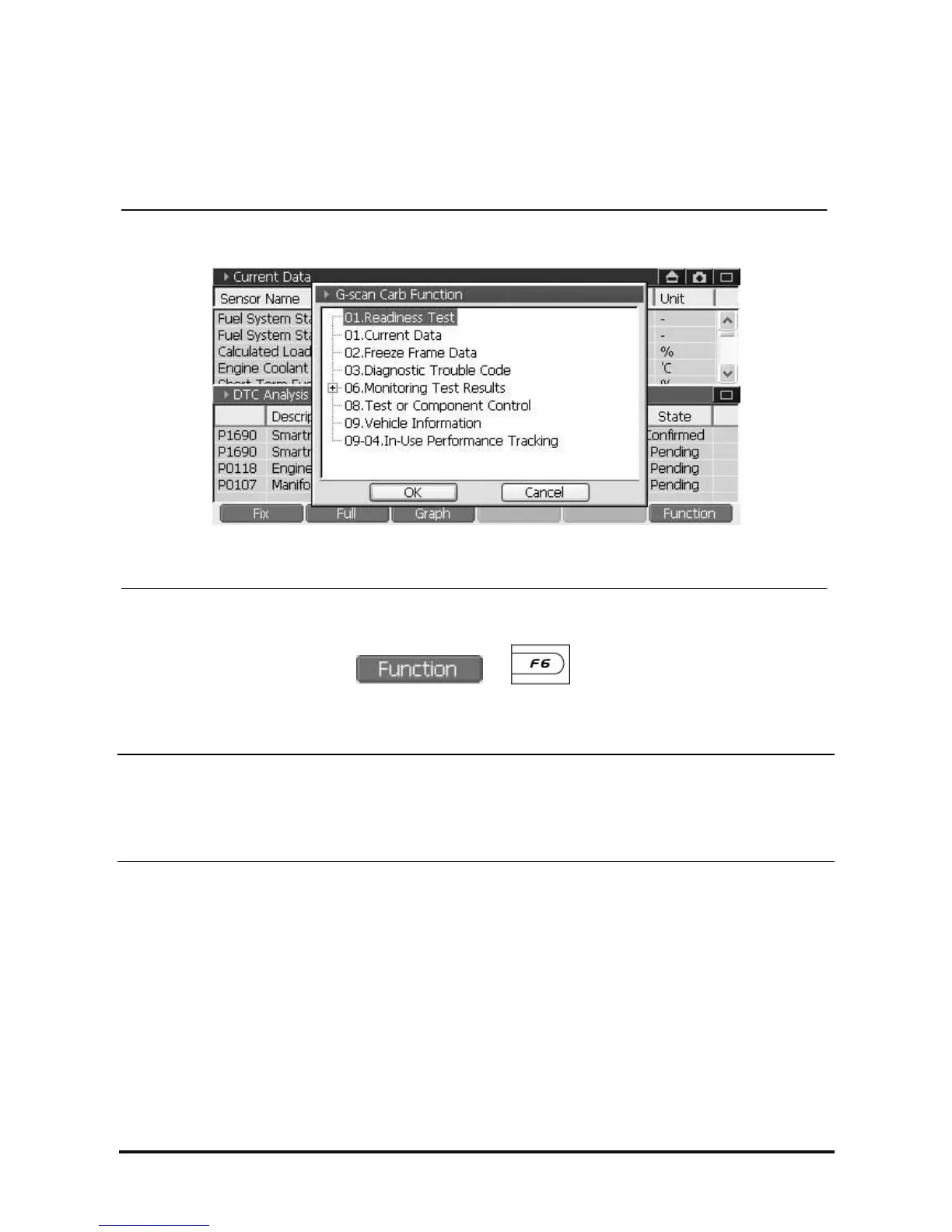

<Figure 1. CARB OBD-II Function List>
CARB OBD-II Function Menu
On the CARB OBD-II screen, select or button. And then the pop-up menu for
the OBD-II function will be shown as <Figure 1>.
In G-scan CARB OBD-II, the detail function will be changed only using the pop-up menu as <Figure 1>.
NOTE
• When conducting diagnosis in the CARB OBD-II, the location of DTC analysis is fixed on the bottom and
CARB OBD-II Function will be located on upper part.
• According to the ECU specification, the list in the pop-up menu may be different.
To Next Page
