D439E Service Manual 2. Engine Mechanical System (D439E)
93

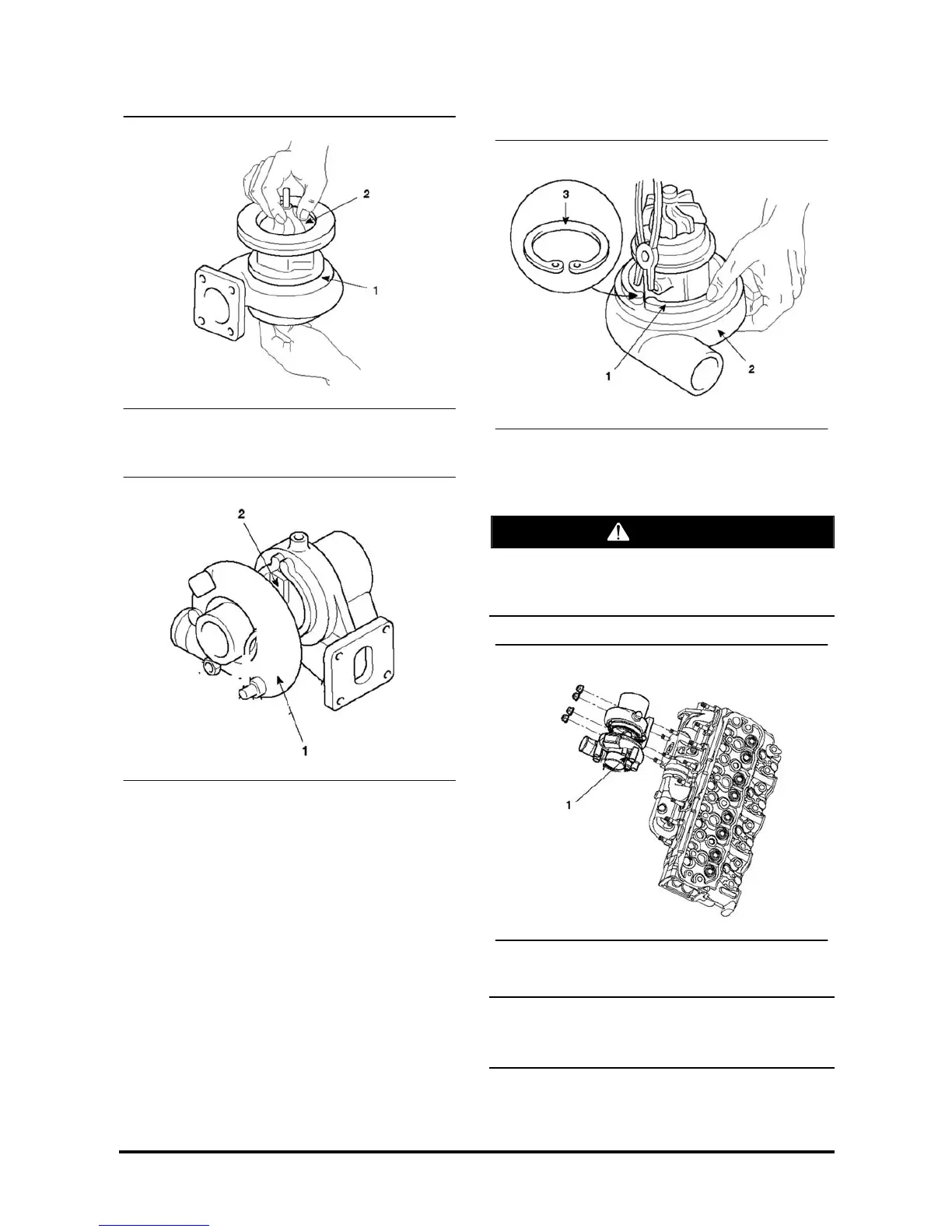

3. After assembling the turbocharger assembly (1),
turn each wheel (2) to see if it rotates smoothly.
4. When assembling turbocharger assembly (1), fill
with the engine oil through the oil hole (2) so that
each part operates smoothly.
Installation
1. When assembling the snap ring (1) to compressor
cover (2), assemble it so that the snap ring taper
side (3) faces up.
CAUTION
When installing the snap ring, install it to the
compressor cover by holding the snap with one
hand.
2. Install the turbocharger assembly (1).
Tightening torque : 41.2 Nm
(4.2 kgf.m, 30.5 Ib-ft)
