D439E Service Manual 2. Engine Mechanical System (D439E)
51

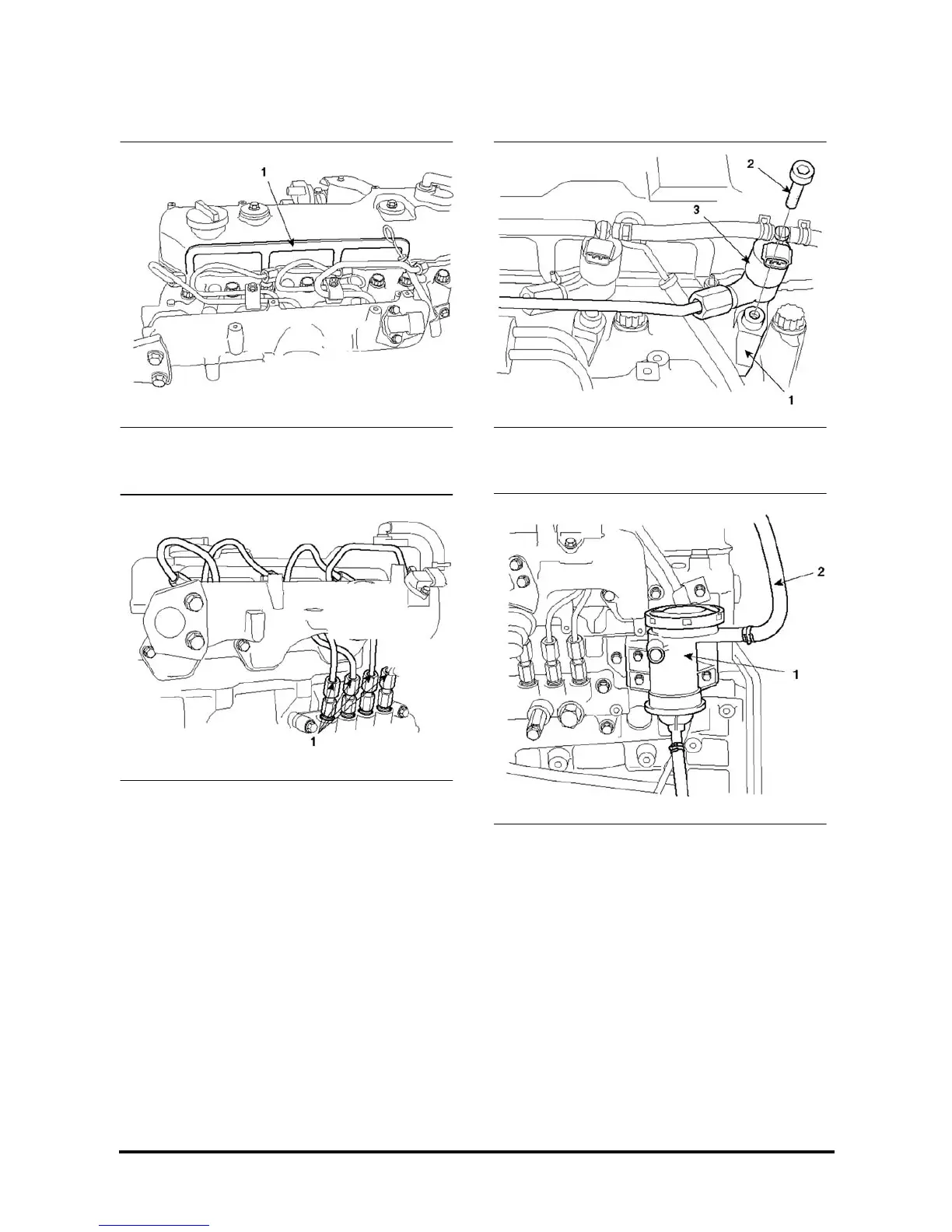

Removal
1.2. Remove the glow plug and glow plug plate (1).
3. Remove the injection pipe (1) No 1, 2, 3 and 4
running from the common rail assembly to the
injector.
4. Loosen the hexa-bolt (2) of injector nozzle bridge
(1) and remove the injector (3).
5. Remove the oil separator (1) and blow-by hose
(2)
