D439E Service Manual 4. Fuel system
200
Injection Pump-Electronic
Supply pump

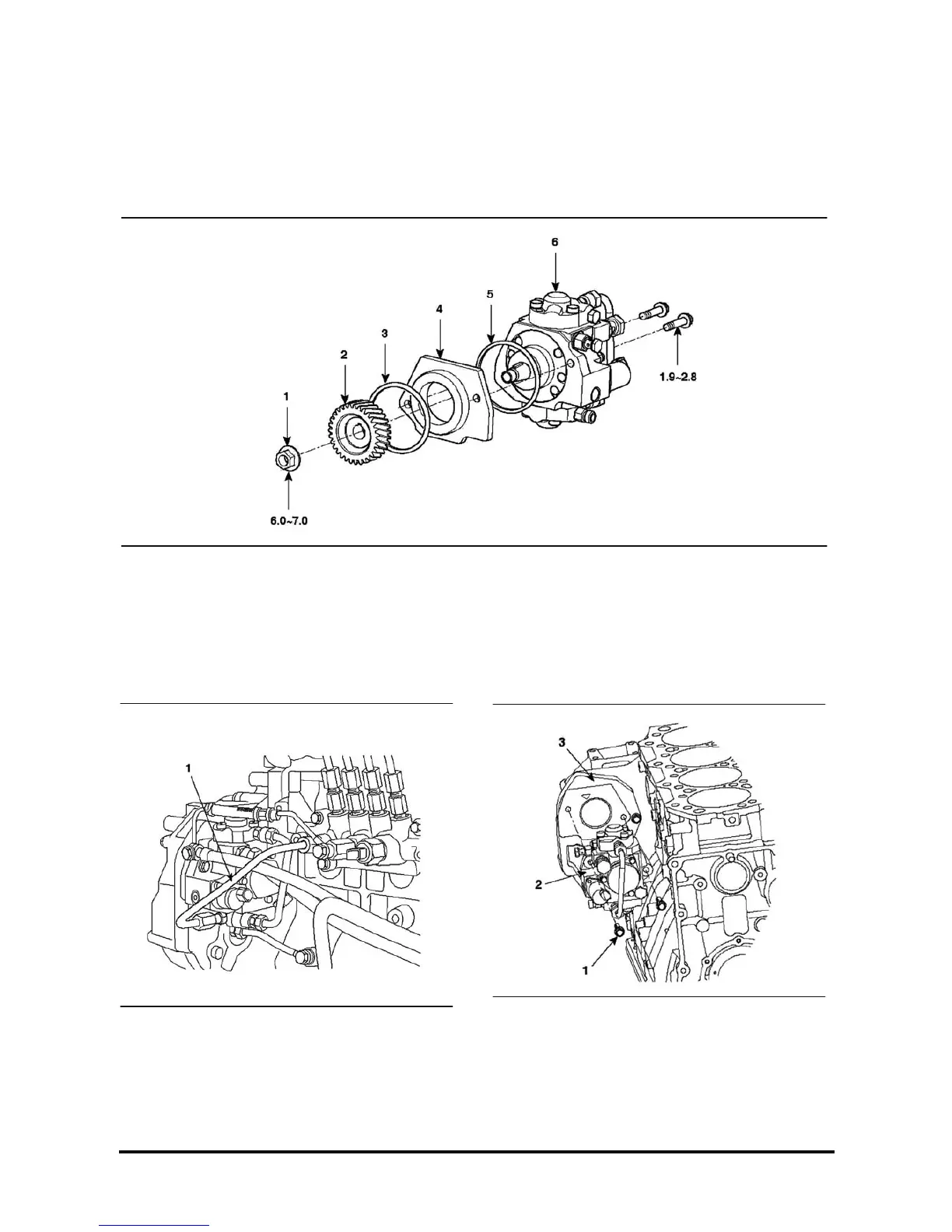

Component
1. Suppply pump mounting nut
2. Supply pump gear
3. O-ring 2
4. Spacer
5. O-ring 1
6. Supply pump
Removal
1. Disconnect the high-pressure pipe (1) connected
between supply pump and rail.
2. Remove supply pump mounting bolt (1)
3. Remove the pump (2) from timing gear case (3).
NOTE : When removing supply pump, remove pump,
spacer, and supply pump gear from the assembly.
