D439E Service Manual 5. Service Tool
281
Left Zone of "Actuation Test" Screen:
You can check the list for actuation test. Move the scroll bar by using the stylus pen or
button to select.
Right Zone of "Actuation Test" Screen:
You can check the Duration, Test Condition and Test Result.

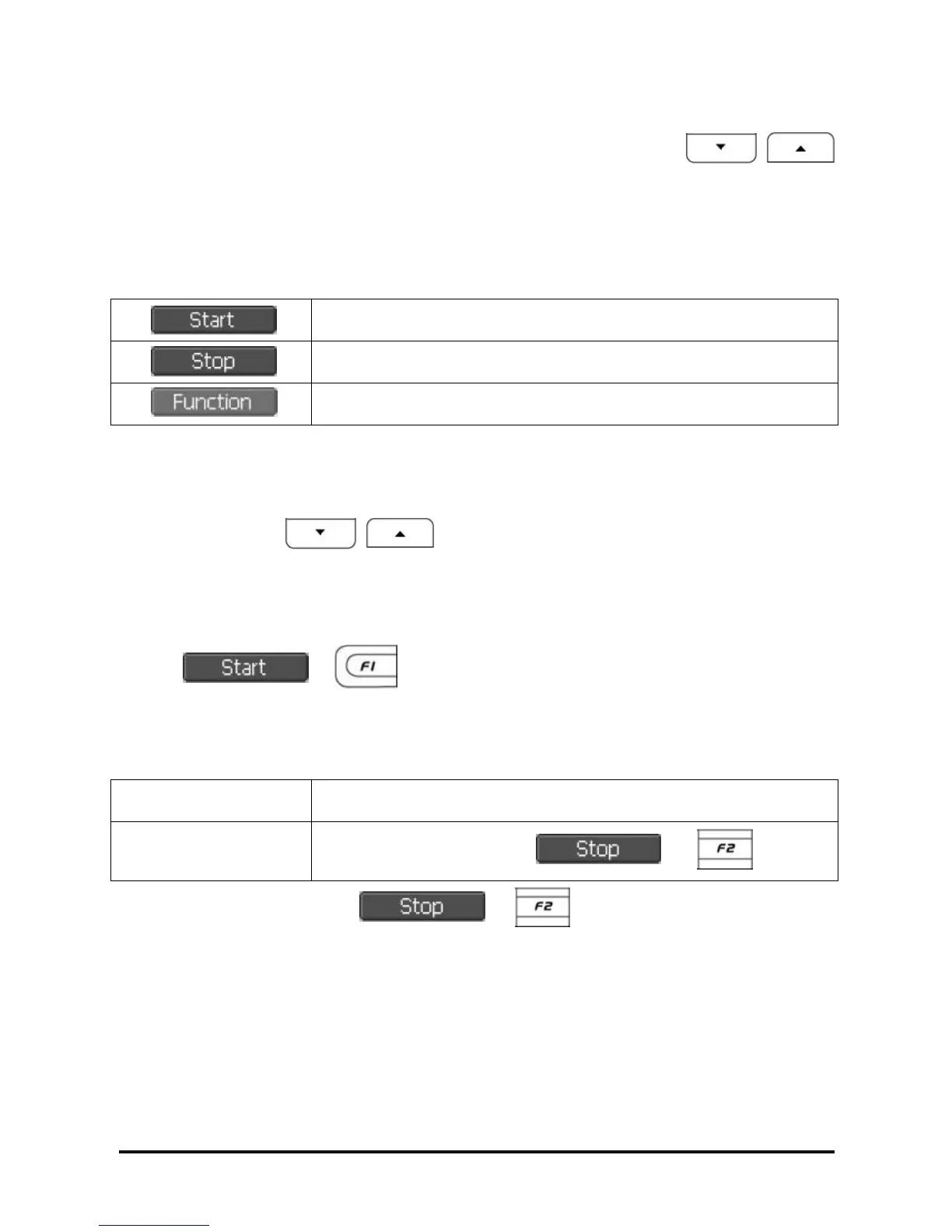

Bottom zone of “Actuation Test” screen
Starts the test for the selected item.
Finishes the test for selected item.
Changes to the Current Data, DTC, ECU Info, or Vehicle S/W management.
How to execute the Actuation Test
1. Select the Actuator for Actuation Test
At the left zone of “Actuation Test” screen, select a item directly using stylus pen on the touch screen or
move the cursor using , buttons.
2. Check Actuation Test condition and set vehicle
After checking the “Duration” and “Condition” at the right zone of “Actuation Test” screen, set the vehicle
accordingly.
3. Start Actuation Test
Select or button to start the test.
4. Check the Actuation Test result
Test result (Failure or Success) will be show at the right zone of the “Actuation Test” screen.
5. Stop the Actuation Test
When duration is fixed Test will be finished when duration is over automatically.
When duration is not fixted
After checking the result, select or to finish
the test.
NOTE : Test could be finished when or selected, although duration is fixed
