D439E Service Manual 2. Engine Mechanical System (D439E)
45

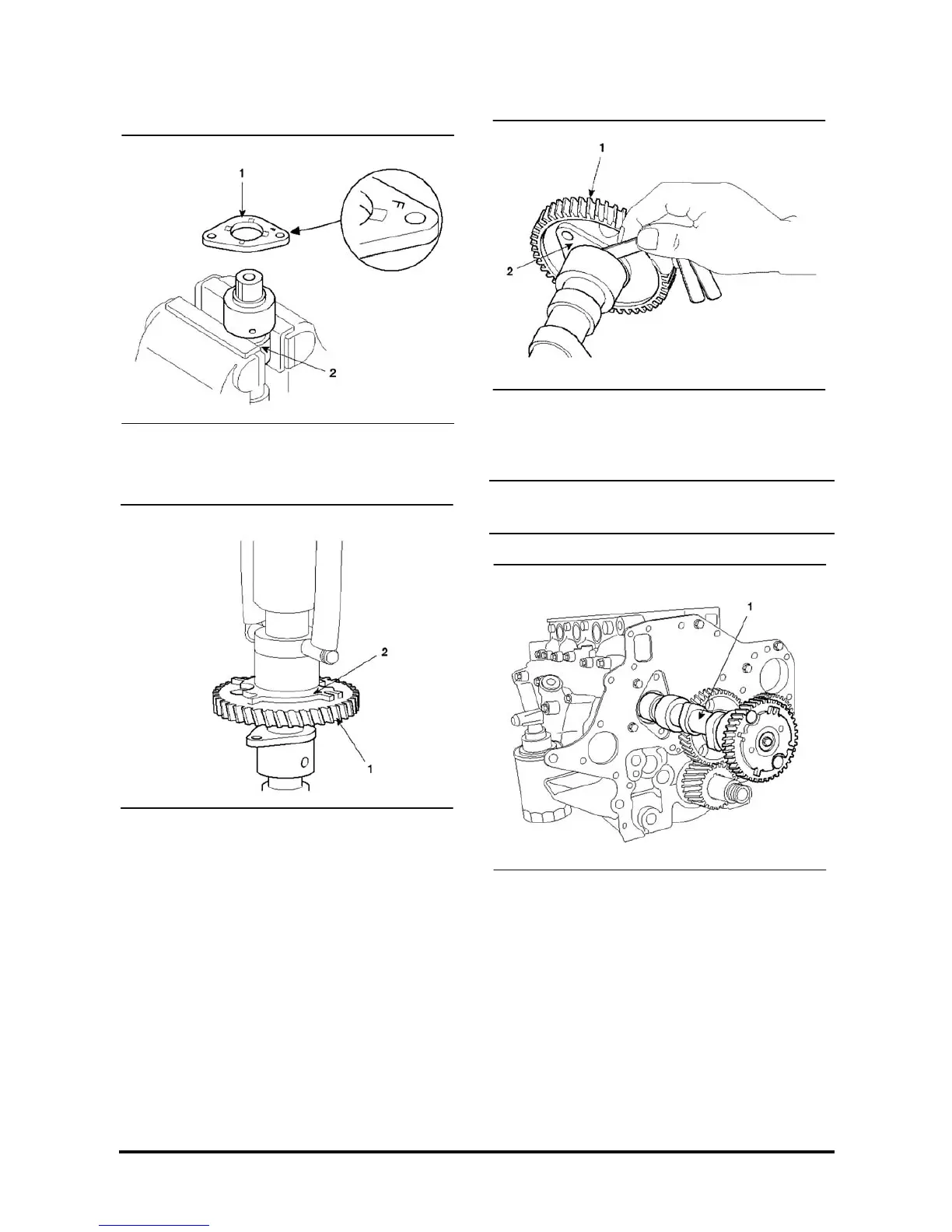

5. Install the camshaft gear assembly.
a. Install the thrust plate (1) so that the “F” mark of
its oil hole faces to the camshaft gear (2).
b. Press fit the camshaft gear assembly (1) of the
cam plate (2) so that it faces outward.
c. Measure the endplay between camshaft gear
(1) and thrust plate (2) and install them as the
clearance to be within the reference.
Reference : 0.05 ~ 0.22 mm
d. Install the camshaft assembly (1) to the
crankcase.
