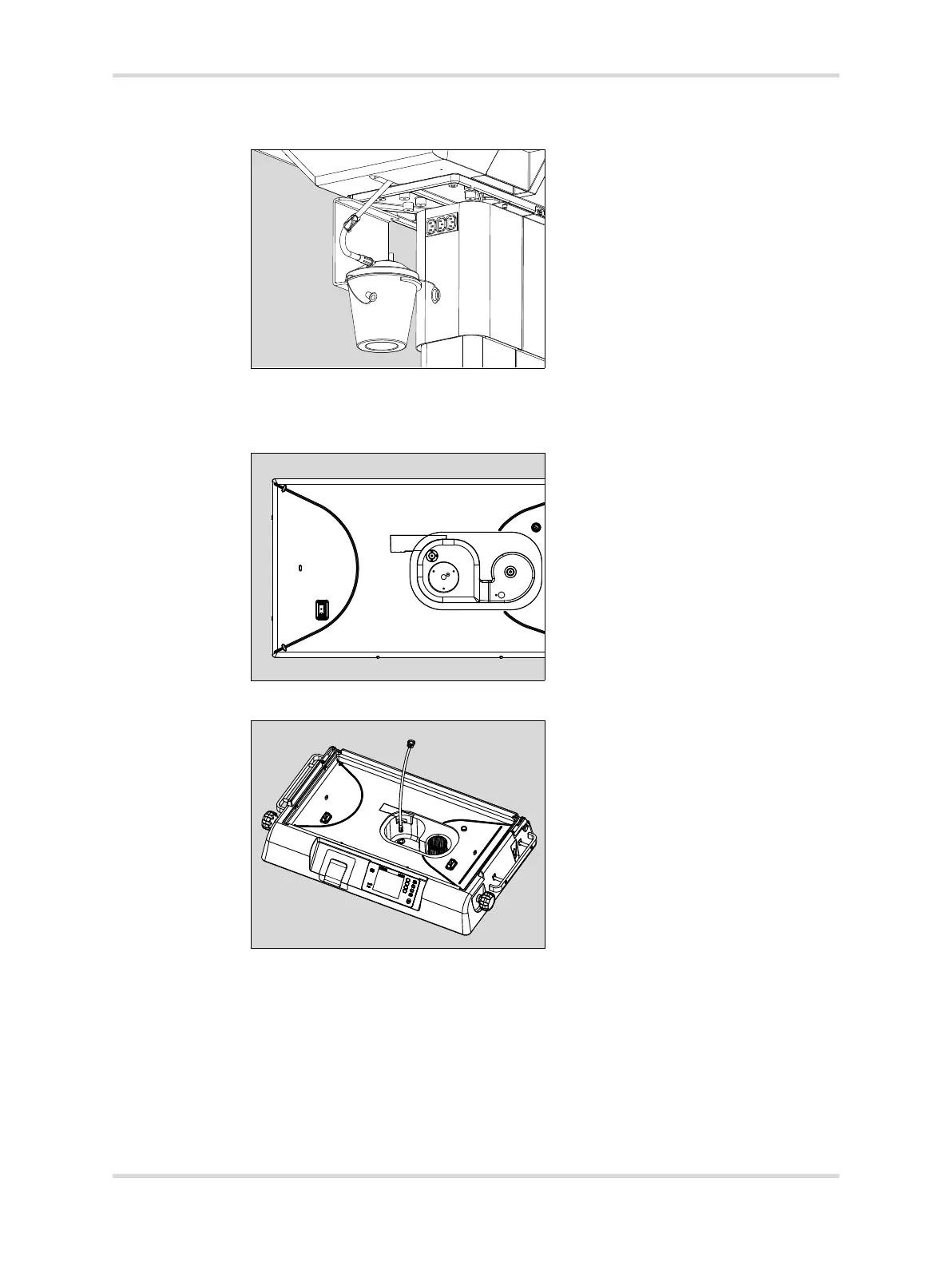

11 Remove the clamp (B) from the condensation management hose.
12 Remove the condensation management hose:
A Turn the plug (C) at the bottom of the heater well 90 degrees
counterclockwise.
B Pull the hose/plug assembly out completely (D).
13 Discard the collection bottle, hose/plug assembly, and clamp.
14 Remove the clamp from the new condensation management hose and set
aside.
15 Insert the new hose/plug assembly fully into the drain opening at the bottom of
the heater well.
16 Push the hose plug down until it is flush with the heater well floor. Turn the plug
90 degrees clockwise.
070071064
A
B
C
D
