50 Instructions for use Isolette 8000 plus SW 5.n
Assembly and preparation

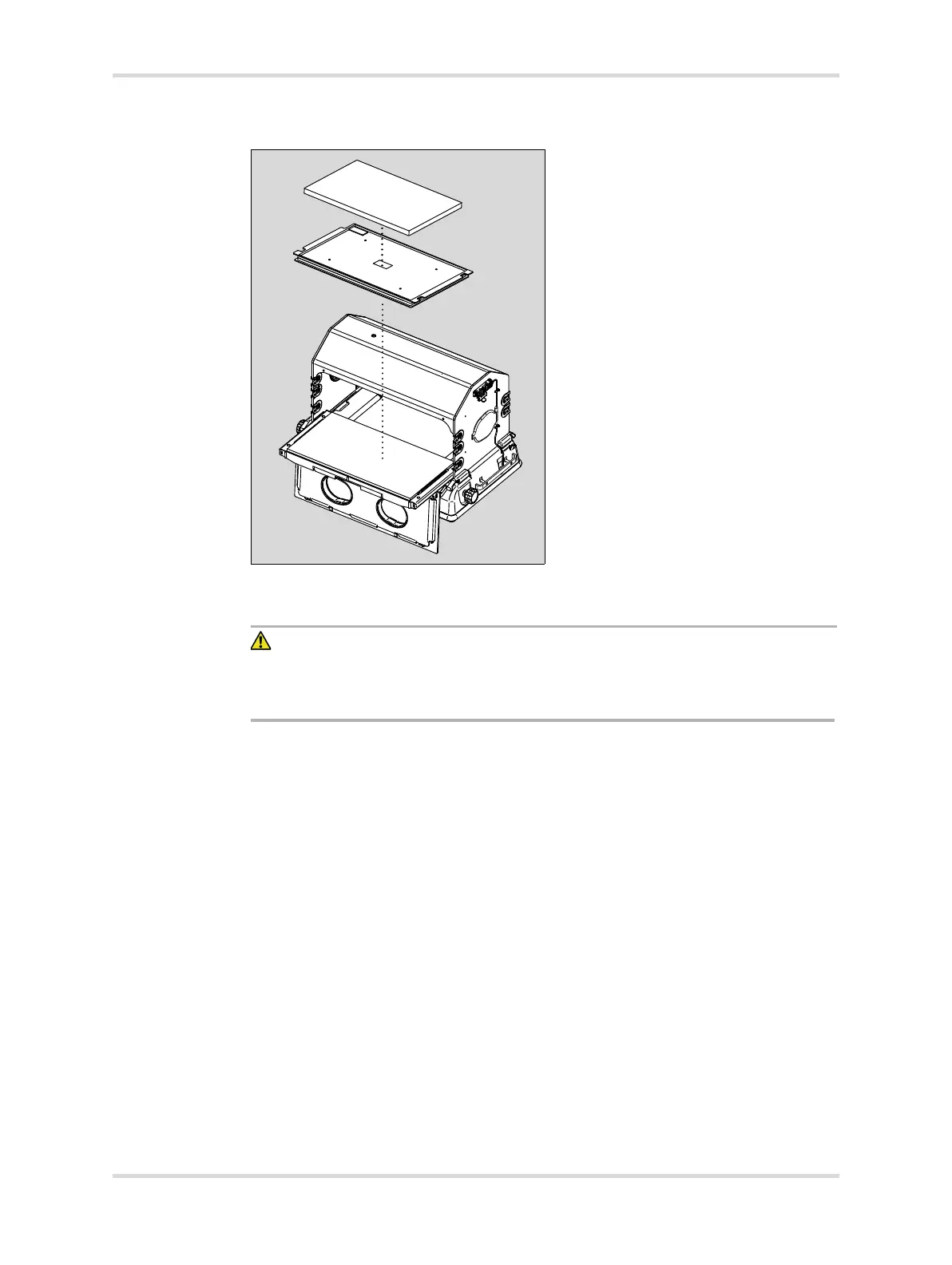

5 Replace the mattress (C).
6 Connect the scale cable to the weight connector on the sensor module
assembly (see Sensor Module on page 31).
WARNING
Risk of death or serious injury
Infant could become entangled with cables and be injured.
► Use cable management clips.
7 Ensure that all sensor leads are properly routed.
– To allow the bed to be fully withdrawn from the hood, and to allow the sensor
module to be withdrawn from the hood for O
2 calibration, ensure that there is
sufficient cable slack between the edge of the hood and the scale.
– To allow for correct weight measurements, make sure that there is no
interference or rubbing of the cable with the scale top.
– Secure the scale cable to the incubator end wall using the cable clips
provided inside the incubator wall.
– Loop the cable at the lower clip.
8 To ensure proper operation, perform the scale check (see Weighing system
(option) functional check on page 75).
6.4.2 OIML/NAWI scale assembly (not available in all markets)
1 Rotate the locking knobs, and open the front access panel of the incubator.
2 Remove the mattress from the incubator.
3 Orient the scale so that the scale cable is on the right-hand side of the incubator
towards the sensor module assembly.
