EL7.5 - EL12.5 (S - SS) User manual - ENG 45/70
5.4.1 Power cable
Call the Service Department or see the Service Manual.
5.4.2 Strainer
For the strainer removing, follows the instructions listed below:
- place the pump vertically and overturned in a stable and safe condition;
- remove the n°3 bolts [207] and related washers [300] (see Fig. 25);
- handly rotate the agitator [10] so as to fit with the through hole of the strainer
(see Fig. 26a);
- remove the strainer [50] (see Fig. 26b).
Reassemble all the components in reverse order to restore the pump at the initial
conditions. Before reassembling, check the good conditions of any bolt and eventually
replace the damaged ones.

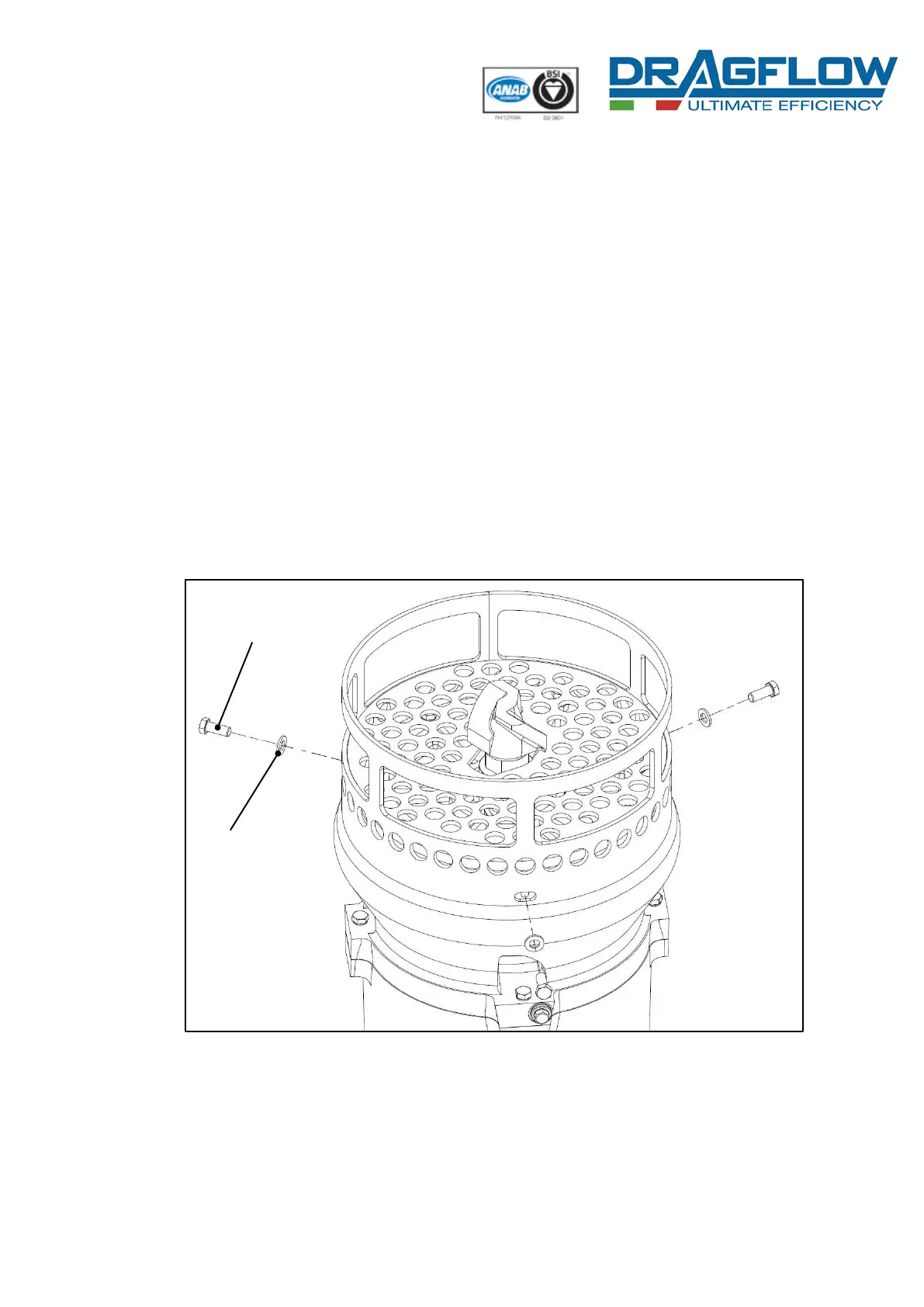

Fig. 25
[207]
[300]
