EL7.5 - EL12.5 (S - SS) User manual - ENG 68/70
7.7 Aggressive environment kit
The aggressive environment kit is a optional configuration of the pump suitable for work
in aggressive (chemically or termically) conditions.
7.7.1 Spare parts
POS.
Q.TY
PART NUMBER
DESCRIPTION
REPLACE POS./NR.
7A1
2
A6503010 (*) (^)
SEAL
61 / F39288
7A2
1
A6503007 (*) (^)
SEAL
62 / A6503030
7A3
3
A2517011
EYEBOLT
141 / A2517002
7A4
1
A6001020
PLUG
170 / A6504065
7A5
12
A2501248
BOLT TE M10x30
200 / A2501005
7A6
4
A2501256
BOLT TE M10x40
201 / A2501013
7A7
13
A2501237
BOLT TE M12x30
202 / A2501028
7A8
4
A2501159
BOLT TE M12x50
204 / A2501018
7A9
3
A2527063
BOLT TE M12x40
205 / A2501016
7A10
3
A2501179
BOLT TE M12x45
206 / A2501049
7A11
7
A2527043
WASHER M12
300 / A2510003
7A12
12
A2527017VITON
SEAL WASHER M10
350 / A2527016
7A13
16
A2527072VITON
SEAL WASHER M12
351 / A2527018
7A14
1
A6503042
SEAL WASHER
180 / A1504019
7A15
4
A2501234
NUT M10
400 / A2508005
7A16
3
A2509012
NUT M12
401 / A2508012
7A17
1
161065 (*)
AGITATOR CONNECTOR
11 / F21204
7A18
1
A2509006 (*)
AGITATOR NUT
12 / A2508027
7A19
1
F0155634 (*)
AGITATOR SPACER
13 / F21215

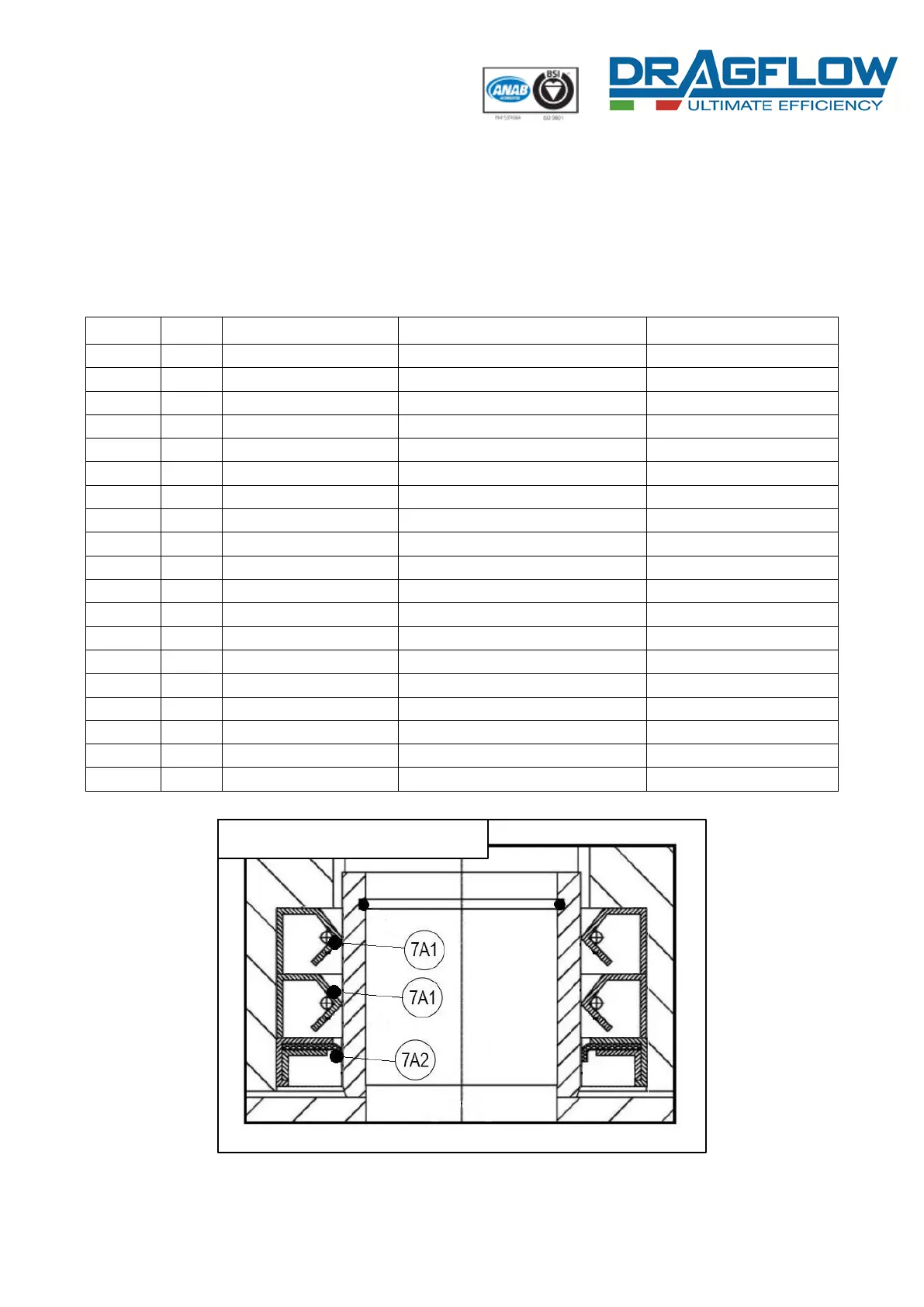

Fig. 45
(^) Lip seals cross section
