EL7.5 - EL12.5 (S - SS) User manual - ENG 50/70
5.4.5 Impeller
Refer to the table in the Maintenance replacing instructions section for the previous
disassembling sequence.
Subsequently, follow the instructions listed below:
- place the pump vertically and overturned in a stable and safe condition;
- remove the impeller [1] and the key [503] from the shaft [2] (see Fig. 30).
Reassemble all the components in reverse order to restore the pump at the initial
conditions. Before reassembling, check the good conditions of any bolt and eventually
replace the damaged ones.

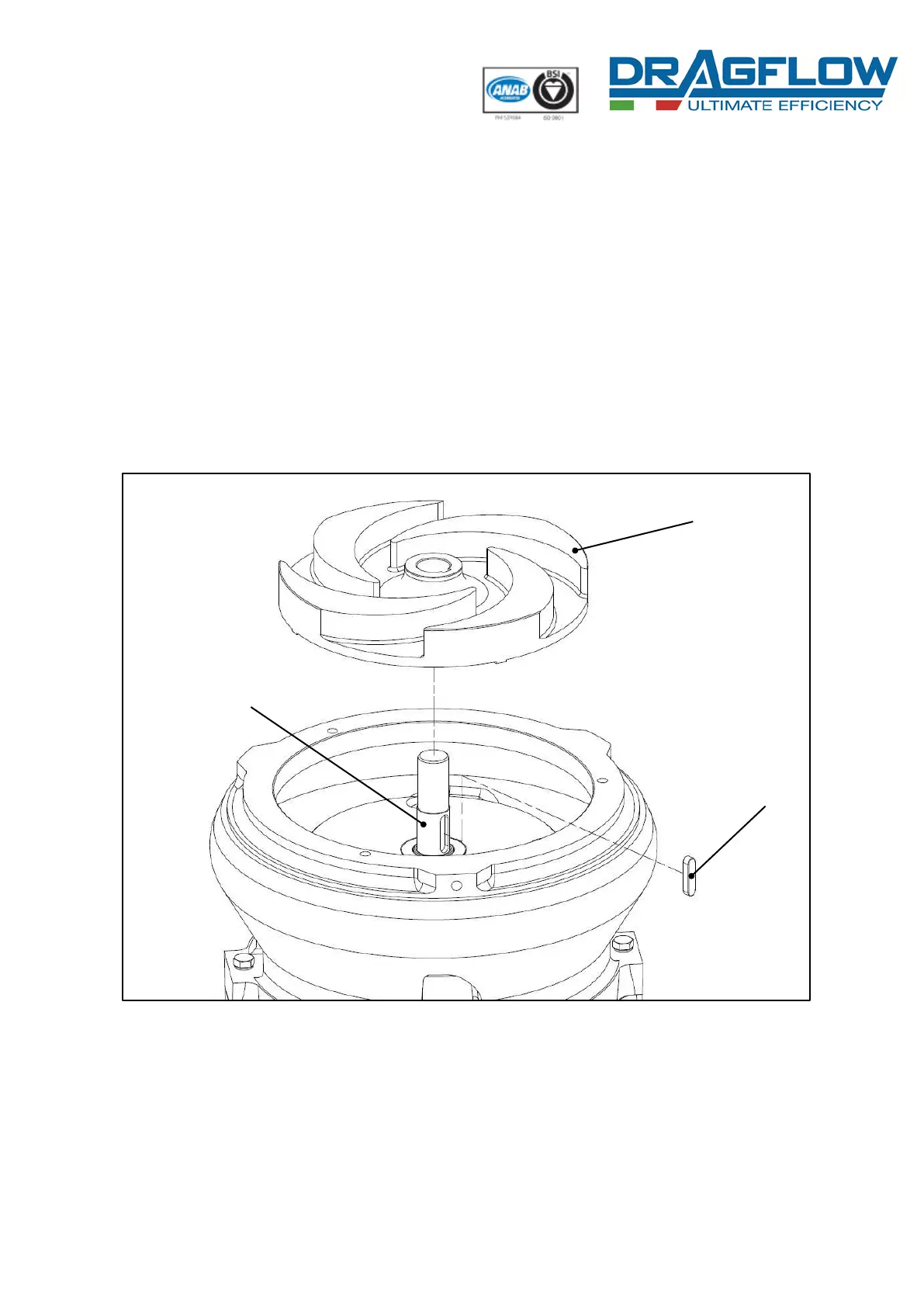

Fig. 30
[2]
[1]
[503]
