EL7.5 - EL12.5 (S - SS) User manual - ENG 49/70
5.4.4 Agitator kit
Refer to the table in the Maintenance replacing instructions section for the previous
disassembling sequence.
Subsequently, follow the instructions listed below:
- place the pump vertically and overturned in a stable and safe condition;
- maintaining blocked the impeller (e. g. by inserting an iron rod), unscrew the
agitator [10] by hitting smartly in counterclockwise direction with a hammer
(see Fig. 29);
- after removing the agitator, unscrew the connector [11], the nut [12] and
remove the spacer [13] directly installed on the main shaft [2] (see Fig. 29a
and Fig. 29b).
Reassemble all the components in reverse order to restore the pump at the initial
conditions. Before reassembling, check the good conditions of any bolt and eventually
replace the damaged ones.

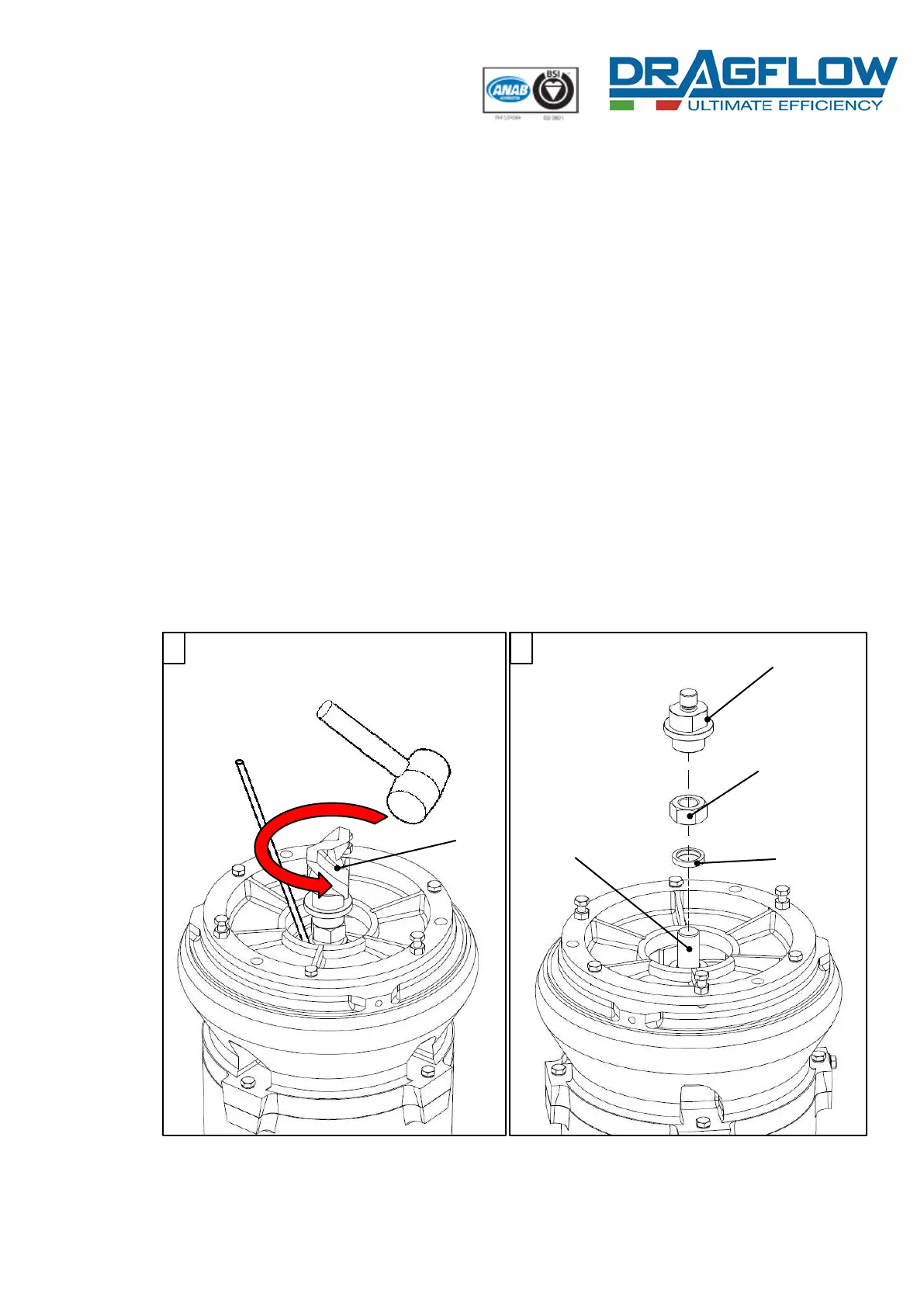

Fig. 29
a
b
[10]
[11]
[12]
[13]
[2]
