Draytek Vigor167 User Manual

99

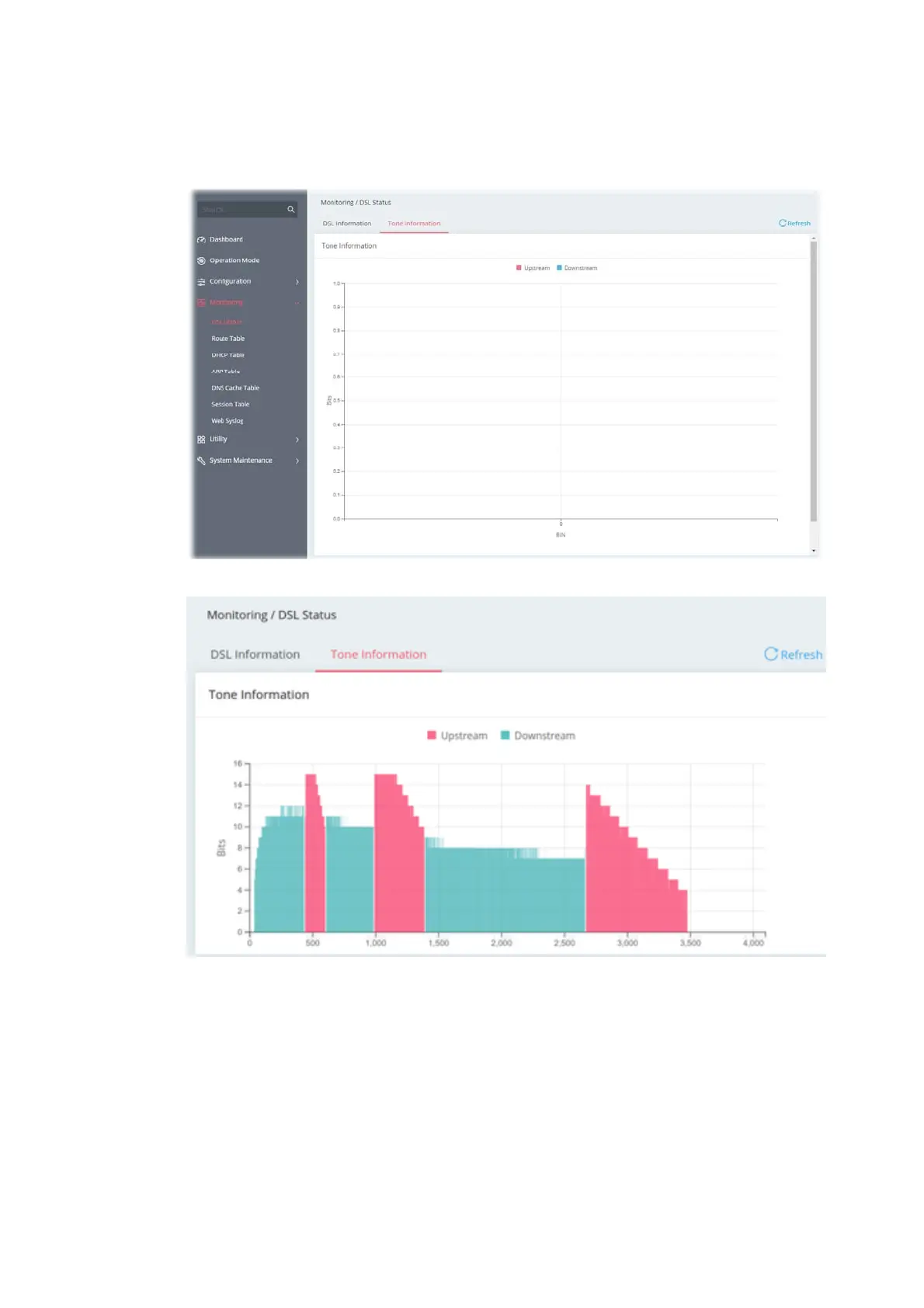

IV-1-1-2 Tone Information
This web page displays the DSL line quality and bin usage.
Click Refresh to reload this page with the most up-to-date information.
The above figure shows the bandwidth shared between Upstream (Red) and Downstream (Blue).

Draytek Vigor167 Specifications

General

VDSL	Yes
Interface	RJ-45, RJ-11
Modem speed	30000 Kbit/s
Antenna type	Internal
Storage temperature (T-T)	-25 - 70 °C
Operating temperature (T-T)	0 - 45 °C
Operating relative humidity (H-H)	0 - 45 %
DC input voltage	12 V
Power consumption (typical)	4.4 W
Routing protocols	IP

Weight and Dimensions

Depth	181 mm
Width	40 mm
Height	125 mm
Weight	270 g
