Draytek Vigor167 User Manual

3
I-2 Hardware Installation
This section will guide you to install the Vigor167 through a hardware connection and configure the
device’s settings through the web browser.
Before starting to configure Vigor167, you have to connect your devices correctly.
I-2-1 Network Connection

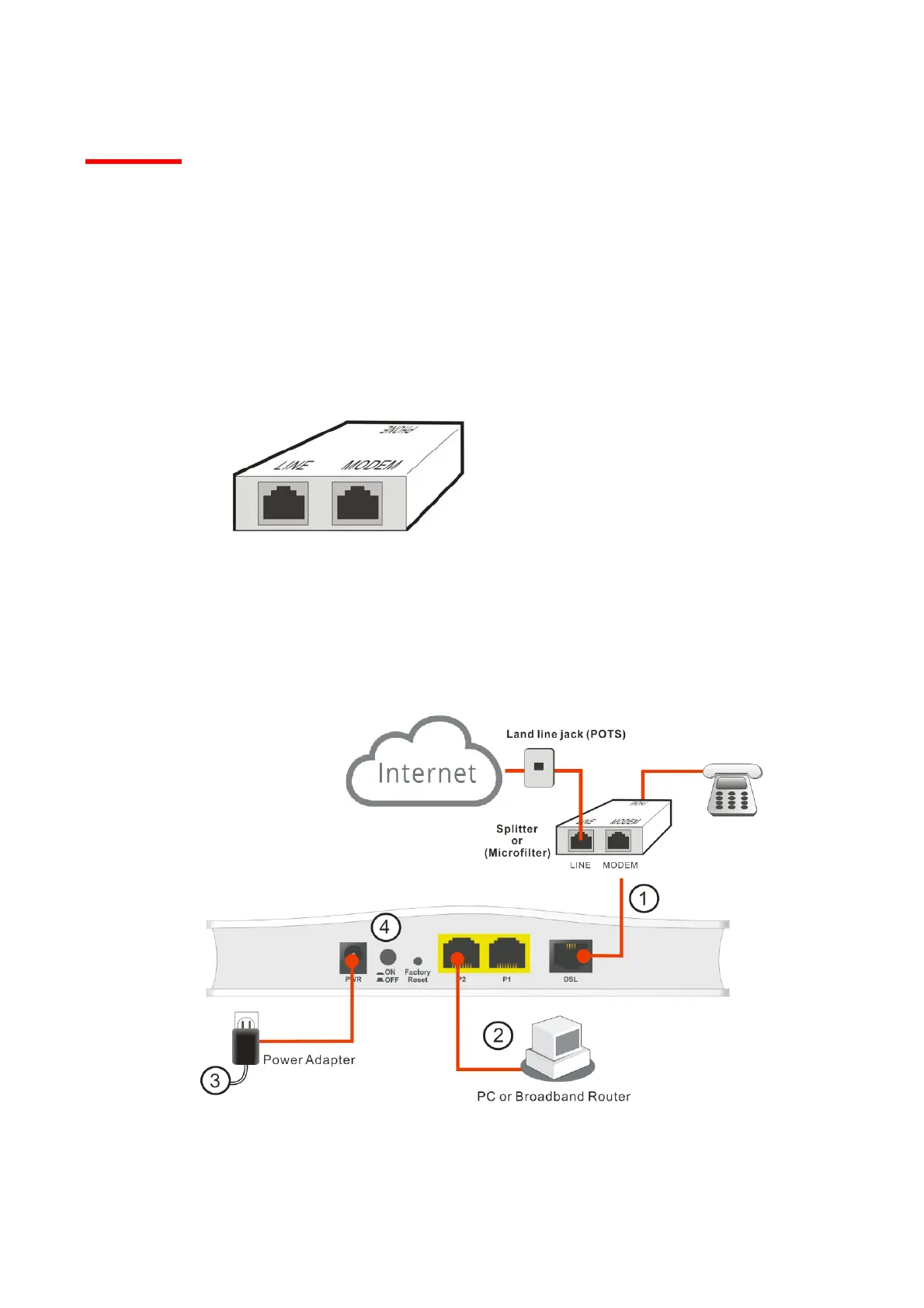

1. Connect the DSL interface to the MODEM port of the external splitter with a DSL line cable.
(splitter)
2. Connect the LAN port to your computer with an RJ-45 cable.
3. Connect one end of the power adapter to the Power port of this device. Connect the other end
to the wall outlet of electricity.
4. Power on the modem.
5. Check the POWER, ACT, LAN, DSL, and INTERNET LEDs to assure network connections.
(For the detailed information of LED status, please refer to section 2.)

Draytek Vigor167 Specifications

General

VDSL	Yes
Interface	RJ-45, RJ-11
Modem speed	30000 Kbit/s
Antenna type	Internal
Storage temperature (T-T)	-25 - 70 °C
Operating temperature (T-T)	0 - 45 °C
Operating relative humidity (H-H)	0 - 45 %
DC input voltage	12 V
Power consumption (typical)	4.4 W
Routing protocols	IP

Weight and Dimensions

Depth	181 mm
Width	40 mm
Height	125 mm
Weight	270 g
