Draytek Vigor167 User Manual

83
III-1-3 Firmware
Before firmware upgrade, please download the newest firmware from the DrayTeks website or FTP
site first. The DrayTek website is www.draytek.com (or local DrayTeks website) and the FTP site is
ftp.draytek.com.

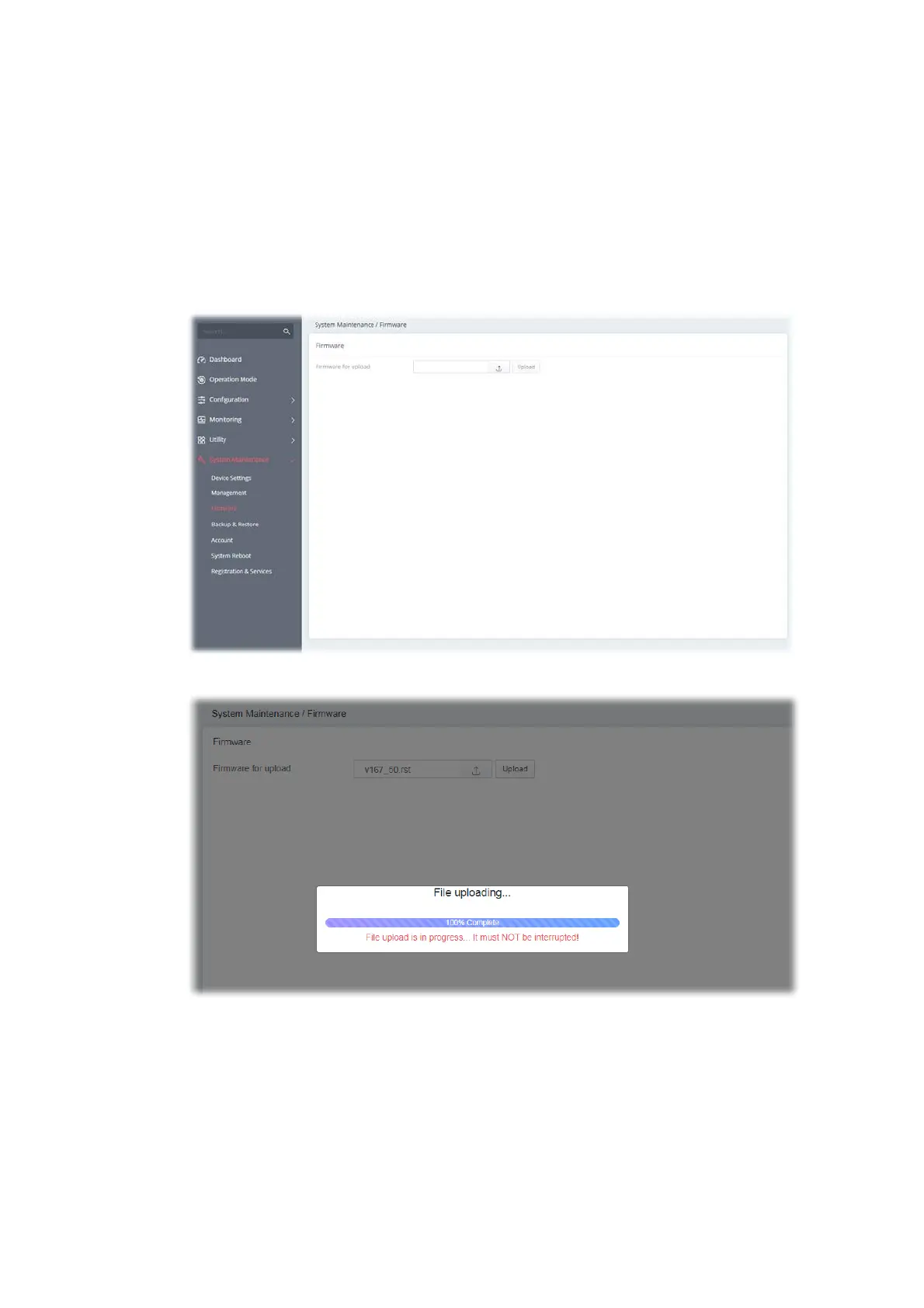

Open System Maintenance>>Firmware. The following web page will guide you to upgrade
firmware by using an example. Note that this example is running over Windows OS (Operating
System).
Then click Upload and wait for a few seconds.
When the upload is finished, please click the Restart button.

Draytek Vigor167 Specifications

General

VDSL	Yes
Interface	RJ-45, RJ-11
Modem speed	30000 Kbit/s
Antenna type	Internal
Storage temperature (T-T)	-25 - 70 °C
Operating temperature (T-T)	0 - 45 °C
Operating relative humidity (H-H)	0 - 45 %
DC input voltage	12 V
Power consumption (typical)	4.4 W
Routing protocols	IP

Weight and Dimensions

Depth	181 mm
Width	40 mm
Height	125 mm
Weight	270 g
