Chapter 1 Before Operation

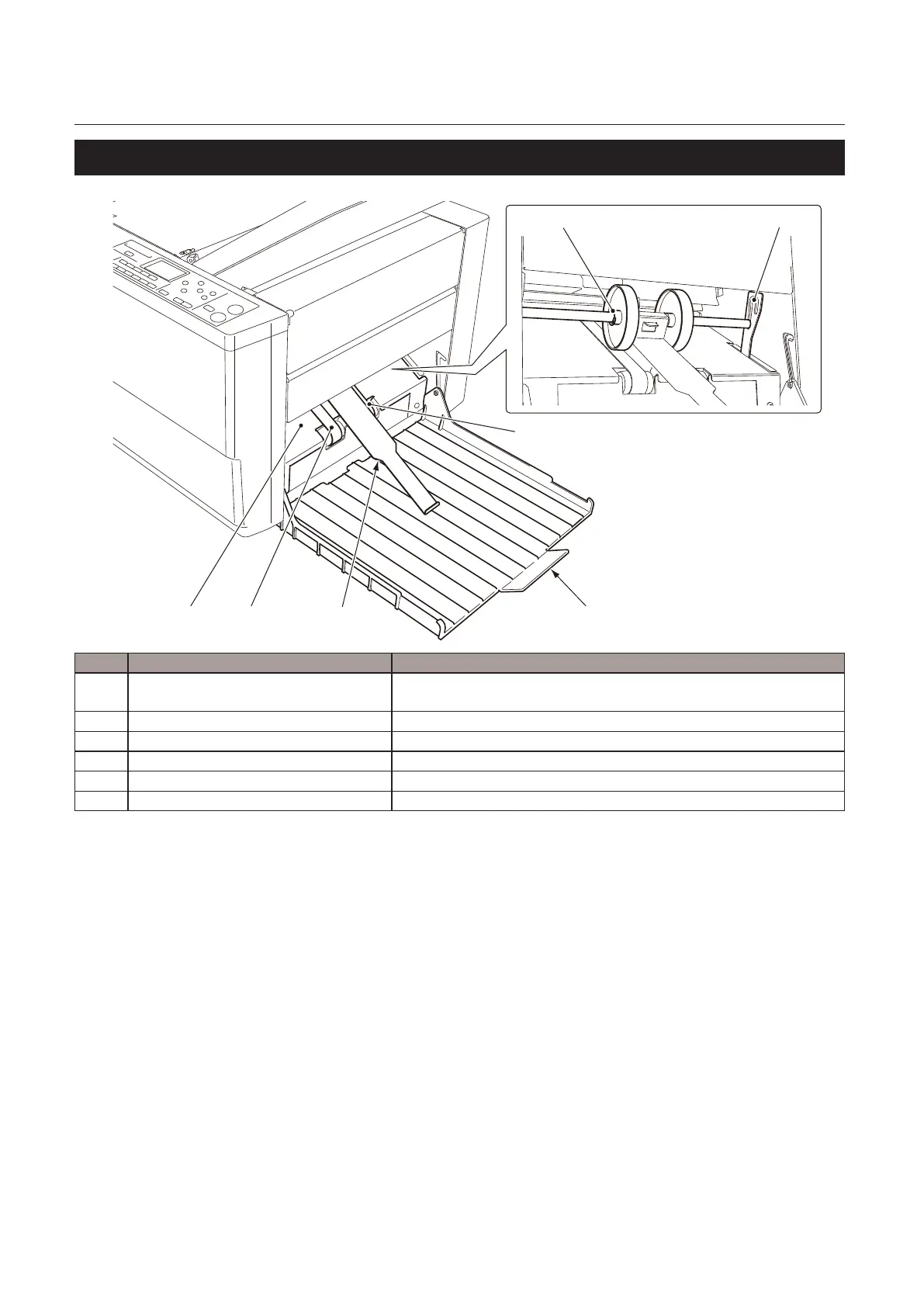

3-2. Internal parts (Paper ejecting section)
[1][5]
[3]
[4]
[6][4]
[2]
No. Name Function
[1] Stacker lever This is the lever that supports the stacker roller. The height of the
roller can be adjusted.
[2] Ejecting section For receiving folded paper ejected out.
[3] Paper receiving tray For stacking ejected paper.
[4] Stacker belt For ejecting folded paper.
[5] Stacker roller It holds down the ejected paper and supports conveyance of paper.
[6] Auxiliary paper ejection guide Used to hold the ejected paper.
