Chapter 3 Advanced Operation
1-2.

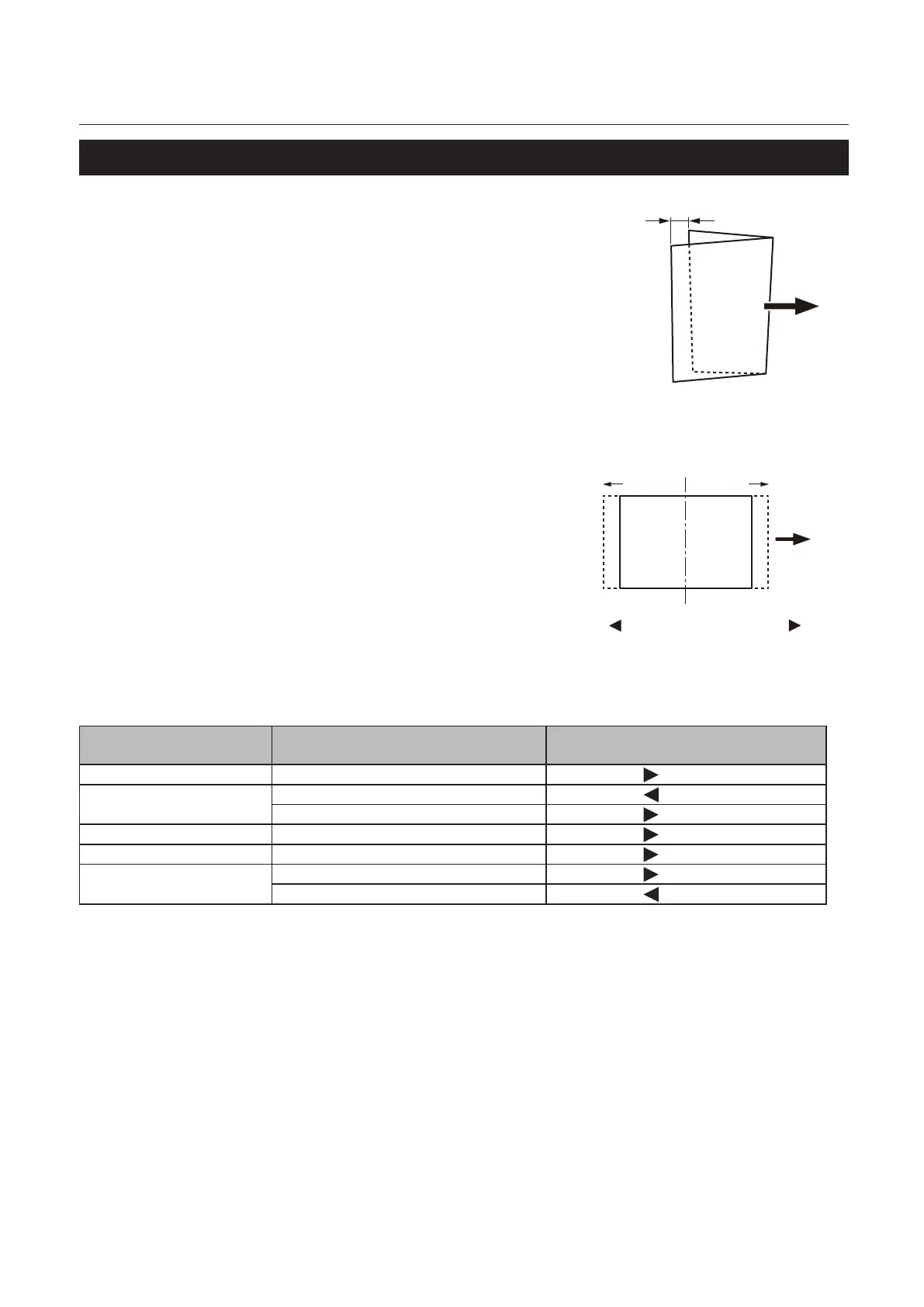

Adjustment the folding misalignment in the up and down direc
t
ion
Ejection
direction
When the folded paper is misaligned along
the vertical length, adjust the positions of the
folding stopper of folding plates 1 and 2 to
correct the misalignment.
Adjustable range and correction restrictions
Ejection
direction
Paper
-5.0 mm/0.20 inch
or less
+5.0 mm/0.20 inch
or less
Adjustment by
using the key.
Adjustment by
using the key.
Center
• For standard folding, the adjustable range
using the stopper adjustment key is within ± 5
mm/0.20 inch from the center of the paper.
• The positions of the folding stoppers of
folding plates 1 and 2 may not be adjustable
to ± 5 mm/0.20 inch according to the length
of the paper used.
• For [Special folding] and [Stopper xing
mode], the folding positions are set directly
according to the paper length, and the
adjustable range of ± 5 mm/0.20 inch is not
restricted.
The restricted folding plate and adjustment details dier according to the folding mode and paper length.
Folding mode Restricted range of paper length* Restricted folding plate and
adjustment key
Double fold 182 to 203.9 mm/7.16 to 8.02 inches Correction by key of folding plate 2
Irregular accordion fold-out 182 to 186.7 mm/7.16 to 7.35 inches Correction by key of folding plate 1
182 to 199.9 mm/7.16 to 7.87 inches Correction by key of folding plate 2
Letter fold 141 to 150.5 mm/5.55 to 5.92 inches Correction by key of folding plate 2
Accordion-fold 141 to 151.1 mm/5.55 to 5.94 inches Correction by key of folding plate 2
Gate fold 425.1 to 432 mm/16.73 to 17.00 inches Correction by key of folding plate 1
422.8 to 432 mm/16.64 to 17.00 inches Correction by key of folding plate 2
* Range of paper length which cannot be corrected to ± 5 mm/0.20 inch. The adjustment value diers
according to the paper length.
