Chapter 3 Advanced Operation

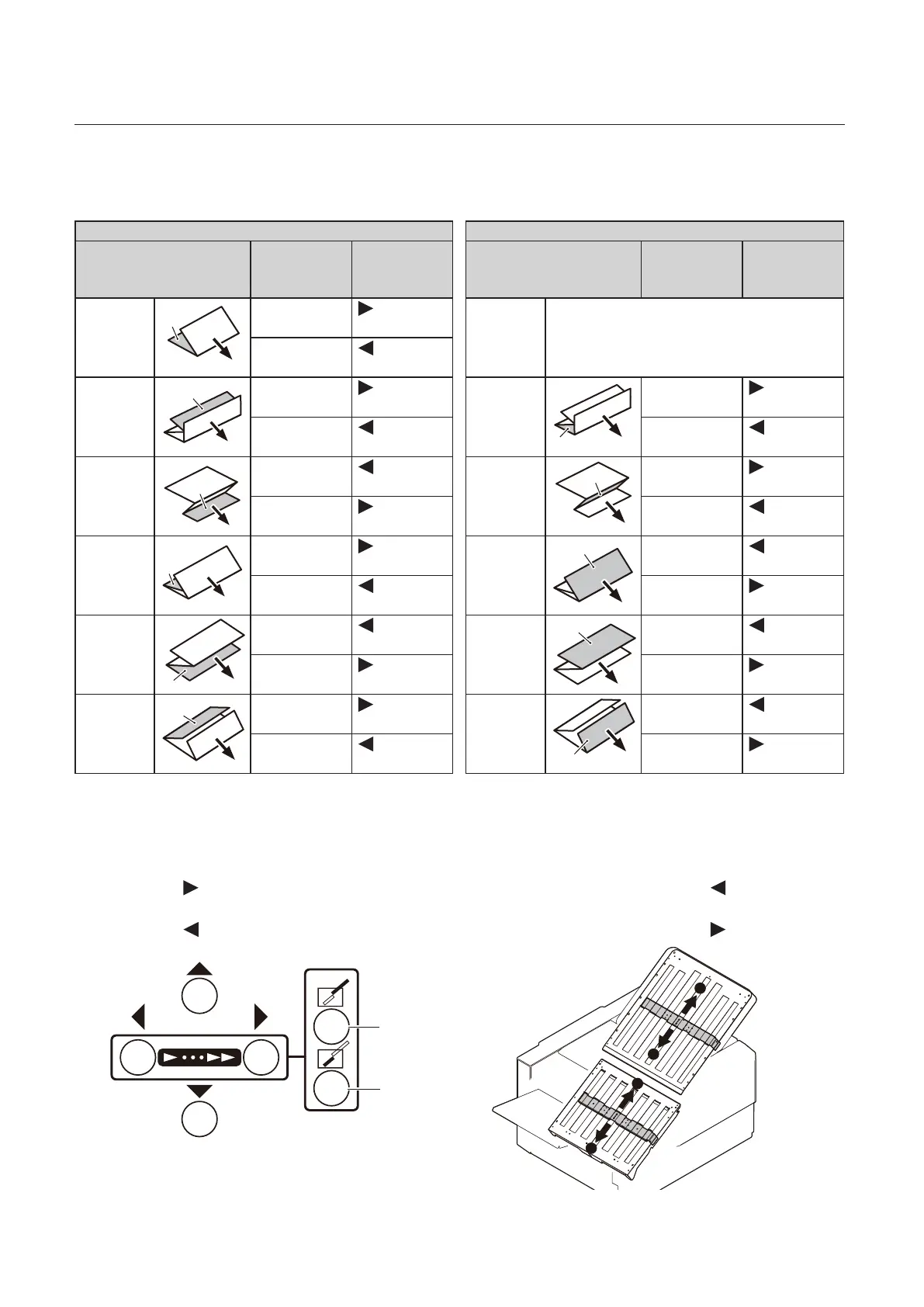

Adjustment folding misalignment along vertical length of paper by folding mode
Adjust folding misalignment along the vertical length of the paper in standard folding using the folding
stopper Adjustment keys of folding plates 1 and 2.
Folding plate 1 Folding plate 2
Folding mode State of
folded plane
A
Adjustment
key
Folding mode State of
folded plane
B
Adjustment
key
Single
fold
A
A is long key Single
fold
* Folding plate 2 is not used in single
folding.
A is short key
Double
fold
A
A is long key Double
fold
B
B is long key
A is short key B is short key
Irregular
accordion
fold-out
A
A is long key Irregular
accordion
fold-out
B
B is long key
A is short key B is short key
Letter
fold
A
A is long key Letter
fold
B
B is long key
A is short key B is short key
Accordion
fold
A
A is long key Accordion
fold
B
B is long key
A is short key B is short key
Gate
fold
A
A is long key Gate
fold
B
B is long key
A is short key B is short key
Adjustment method
Adjust the positions of the folding stopper using the stopper adjustment keys of folding plates 1 and 2 on
the control panel.
Folding plate 1 :The folding stopper of the folding plate 1 moves in the direction of A shown in the gure by
pressing the key, and moves in the direction of B shown in the gure by pressing the key.
Folding plate 2 :The folding stopper of the folding plate 2 moves in the direction of A shown in the gure by
pressing the key, and moves in the direction of B shown in the gure by pressing the key.
A
A
B
B
Folding plate 2
Folding plate 1
