Chapter 3 Advanced Operation

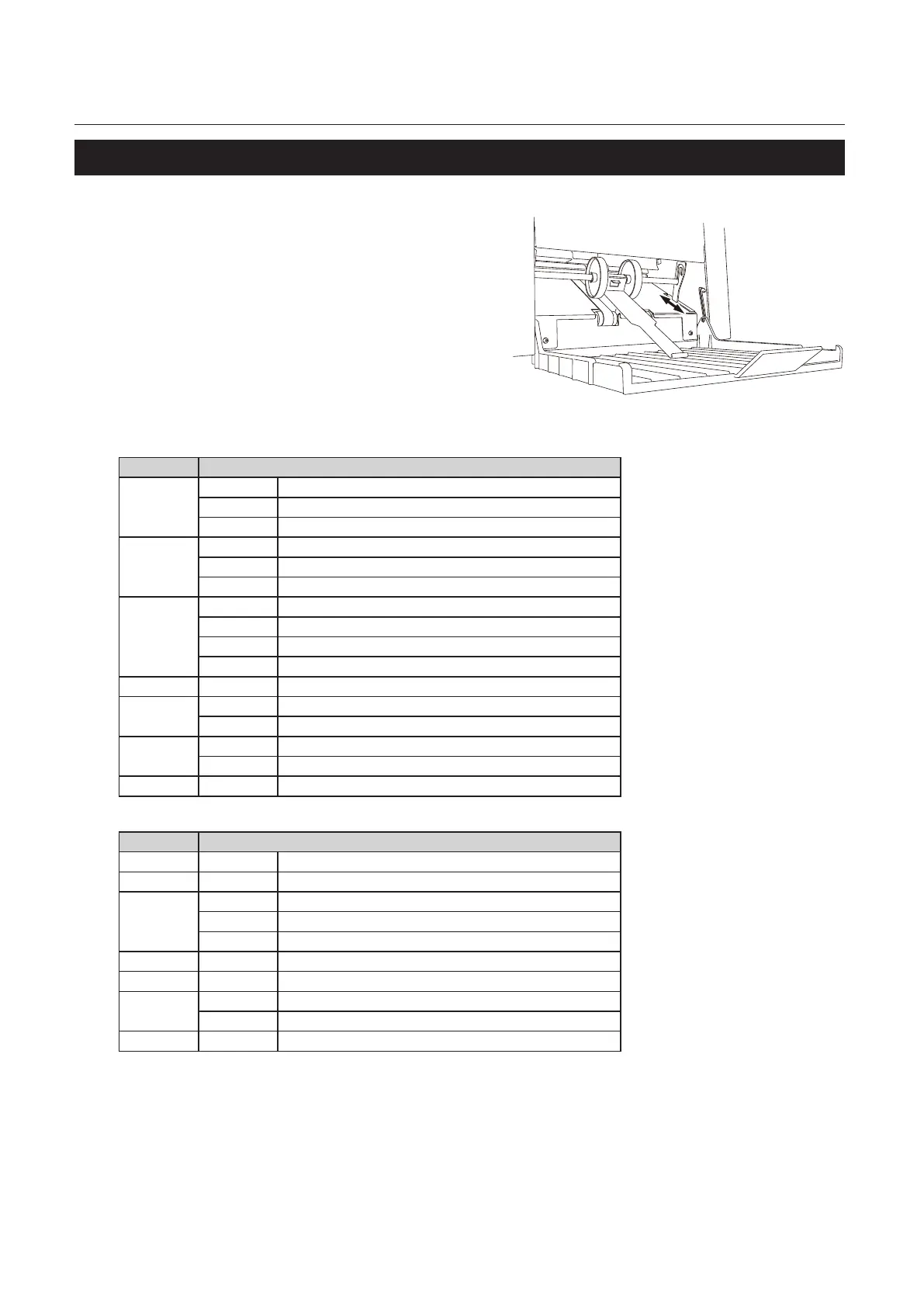

8-5. Stacker roller adjustment
When the paper opens, paper does not align,
or paper jams at the paper ejecting section in
processing Cross fold or folding of thick paper,
adjust the stacker roller position.
Guide for the setting position of stacker roller
For EU
Settings Applicable standard paper size and folding mode
1 B5 Double fold
A5 Double fold, Letter fold, Accordion-fold
B6 Double fold, Letter fold, Accordion-fold, Gate fold
3 A4 Double fold
B5 Accordion-fold, Gate fold
A5 Gate fold
5 A3, B4 Double fold
A4 Letter fold, Accordion-fold
B5 Letter fold
A5, B6 Single fold, Irregular accordion fold-out
7 A4 Gate fold
9 B4 Letter fold, Accordion-fold
B5 Single fold, Irregular accordion fold-out
11 A3 Letter fold, Accordion-fold
A4 Single fold, Irregular accordion fold-out
15 A3, B4 Single fold, Irregular accordion fold-out, Gate fold
For North America
Settings Applicable standard paper size and folding mode
1 STMT, INV Double fold, Letter fold, Accordion-fold
3 LTR Double fold
5 STMT, INV Single fold, Irregular accordion fold-out, Gate fold
LTR Letter fold, Accordion-fold
LGL, LGR Double fold
8 LTR Gate fold
9 LGL Letter fold, Accordion-fold
11 LTR Single fold, Irregular accordion fold-out
LGR Letter fold, Accordion-fold
15 LGL, LGR Single fold, Irregular accordion fold-out, Gate fold
