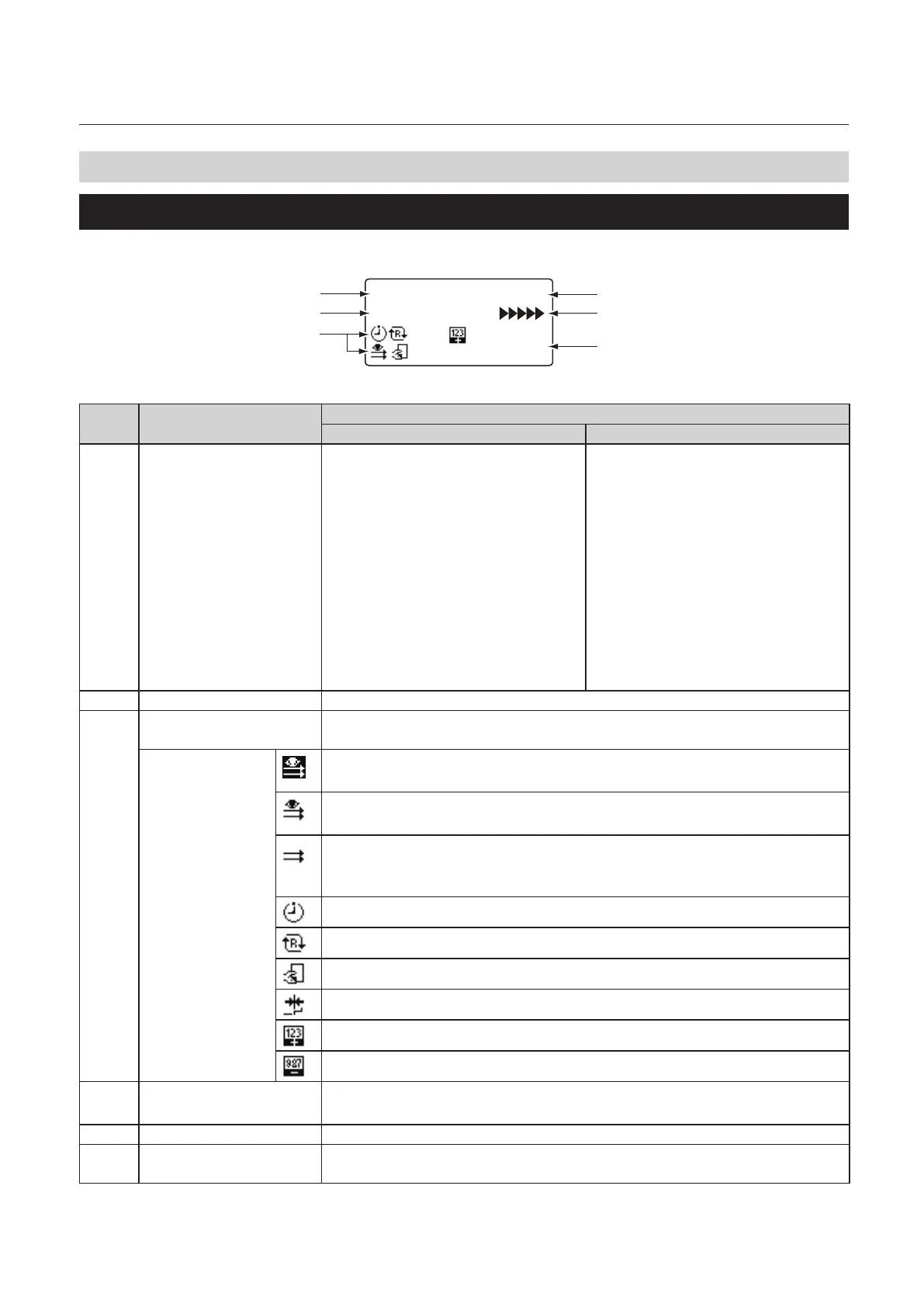

Chapter 1 Before Operation
5. Screen Descriptions
5-1. Top screen
The top screen is a screen displayed rst when you turn on the power.
A4 +0.0/+0.0
Ready
0
[1]
[2]
[3]
[4]
[5]
[6]
No. Information displayed Details
DF-980 DF-970
[1] Paper size Displays the detected paper size.
[A3][A4][A5][B4][B5][B6]/
[LGR][LGL][LTR][INV][STMT]
The following will be displayed when
custom folding is set.(*: memory
number)
[IR *]
Set values are displayed when paper
size is manually set.
If paper size is not displayed, the paper
size is not detected and folding cannot
be started.
Displays the selected paper size.
[A3][A4][A5][B4][B5][B6]/
[LGR][LGL][LTR][INV][STMT]
The following will be displayed when
custom folding is set.(*: memory
number)
[IR *]
Set values are displayed when non-
standard paper is set.
[2] Machine status Displays the current status of the machine.
[3] Special function setting
display
Displays the settings of each special function.
Double-feed detection is set.
(State where the test folding is not performed)
Double-feed detection is set.
(State where the test folding is performed)
Double-feed detection is set.
(Double-feed detection is not performed because the paper length is 250
mm/9.84 inches or less.)
Interval function is set.
The refold mode is set.
Hand feed is set (option).
The stopper xation mode is set.
Counting up.
Counting down.
[4] Stopper correction Displays the adjustments of the folding plates 1 and 2.
The stopper position will be displayed when custom folding is set.
[5] Process Speed The processing speed which is set is displayed with an icon.
[6] Number of processed
sheets
Displays the number of processed sheets.
