Chapter 1 Before Operation
DF-970
[1] [2]
[3] [4]
[5]
[6]
[7]
[9]
[10]
[11]
[12]
[13]
[14]
[15]
[8]

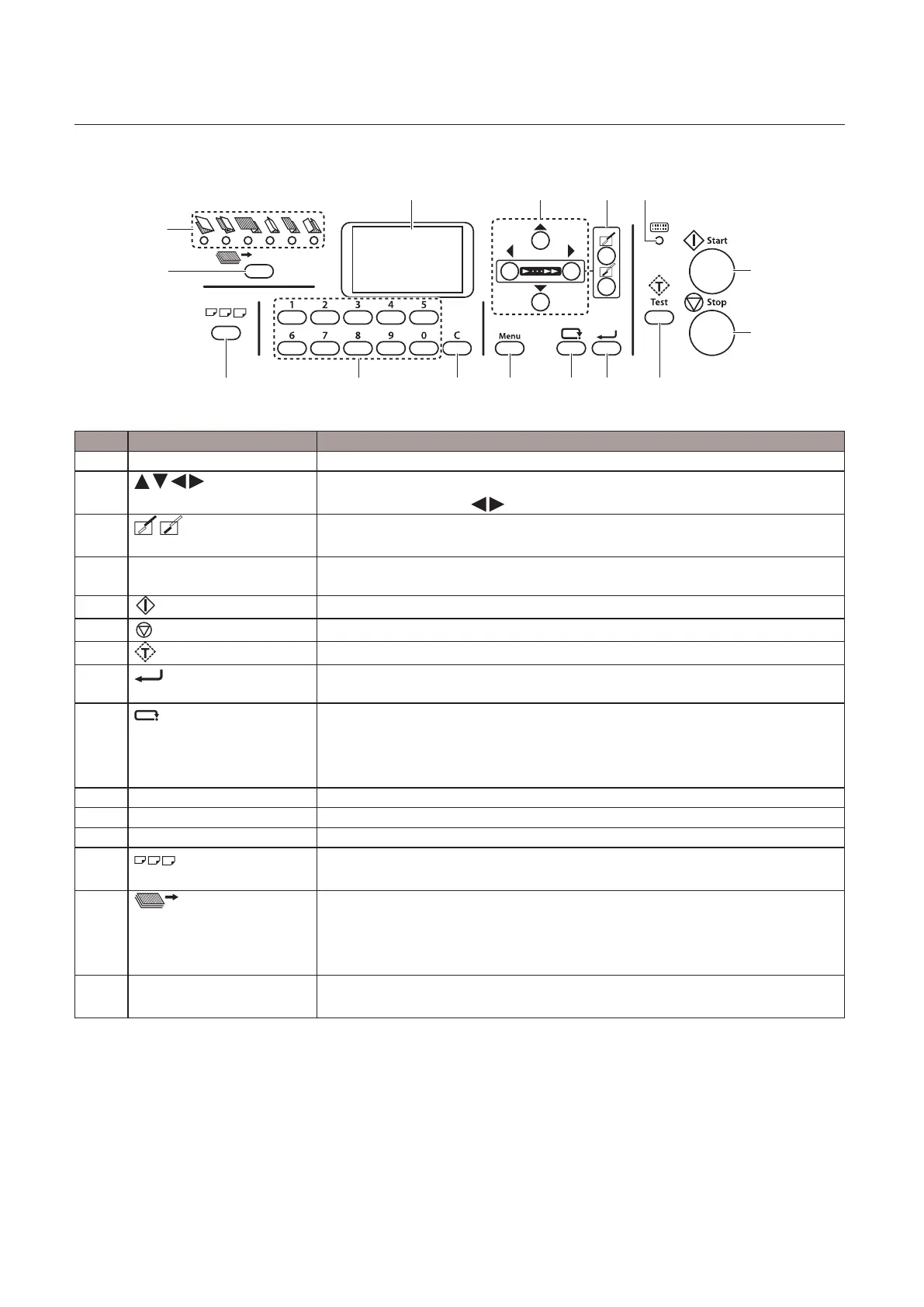

No. Name Function
[1] LCD display Displays the menus or error messages.
[2] key Used to change a value.
On the top screen, use keys to change processing speed.
[3]
(Stopper adjustment) key
Press to open Stopper adjustment window of folding plates 1 and 2.
[4] Lamp When the machine is in the power saving mode, the lamp blinks slowly. When a
message requiring service personnel is displayed, the lamp blinks faster.
[5]
Start key
Press to start paper folding.
[6]
Stop key
Press to stop paper folding.
[7]
Test key
Press to test fold two sheets of paper.
[8] (Enter) key Press to enter the settings. Stopper adjustments can be stored by holding down
this key on the top screen.
[9] (Cancel) key Use to cancel setting data.
Forces eject while cancel key and test key are pressed down at the same time.
Forces eject at folding plates while cancel key and clear key are pressed down at
the same time.
[10] Menu key Press to display the setting menu window.
[11] C(Clear) key Press to cancel the number of sheets to be processed, selected items or settings.
[12] Keypad Use to input numeral value.
[13]
(Paper size select) key
Press to select one of six standard paper sizes.(ve standard paper sizes For
North America)
[14] (Folding mode) key Press to select the folding mode from six standard folding modes. When the
machine is switched on, the single folding mode lamp will light up.
Lighting up will shift to the right every time the key is pressed.
Single folding mode will be performed when custom folding is selected.
[15] Standard folding lamp Of the six standard folding modes, the lamp of the one selected will light up.
All the lamps will go out when the custom folding mode is selected.
