Chapter 4 Using Options
Usable staples
1.5 mm/
0.05 inch
or less
5.0 mm/
0.20 inch
8.4 mm/
0.33 inch
Use a staple No. 10 (Max No10-1M), standard
item. The length of staple: width of 8.4
mm/0.33 inch, and height of 5.0 mm/0.20 inch.
Use a at type stapler the height of which is 1.5
mm/0.05 inch or less in the stapled state.
Stitching with stapler
Front surface
of paper
Front surface
of paper
Stitch the paper with stapler in parallel with
the paper.
20 mm/
0.78 inch or less
Reverse side
of paper
Paper feed
direction
Stitching position is within 20 mm/0.78 inch or
less from the edge of paper.
When the top left corner of the paper is
stitched with the stapler, reverse the paper,
and insert the paper into the inlet so that
the staples will be positioned at the top
right corner.
Reverse side
of paper
: Staple (reverse side)
: Staple (front side)
Paper
feed
direction
Single
fold
Letter
fold
Ejection
direction
Accordion-
fold

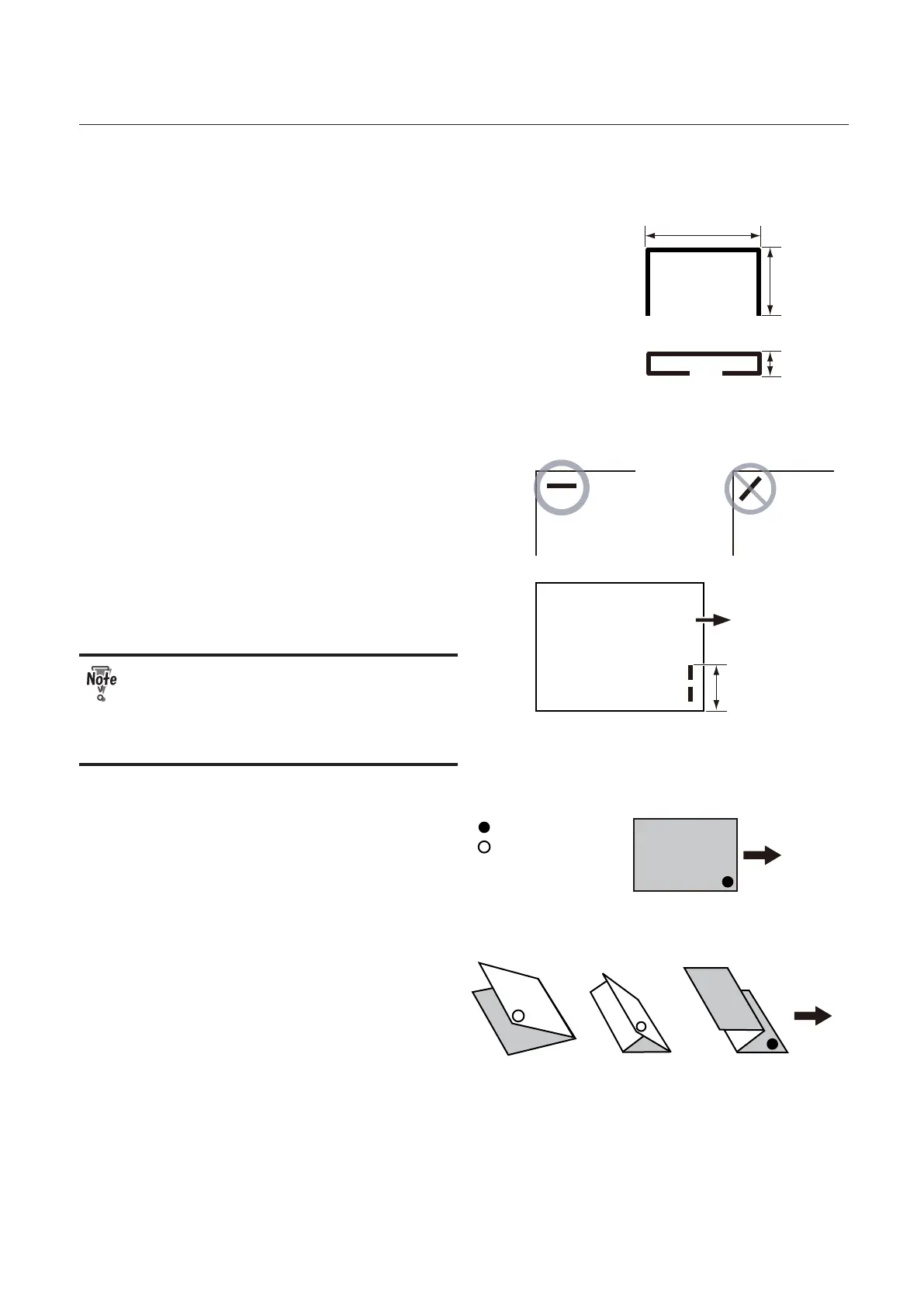

Stitching position with staples and folding
style are as shown in the gure.
