Duplo DPB-500 User Manual

2-11
CHAPTER 2 PREPARING FOR OPERATION

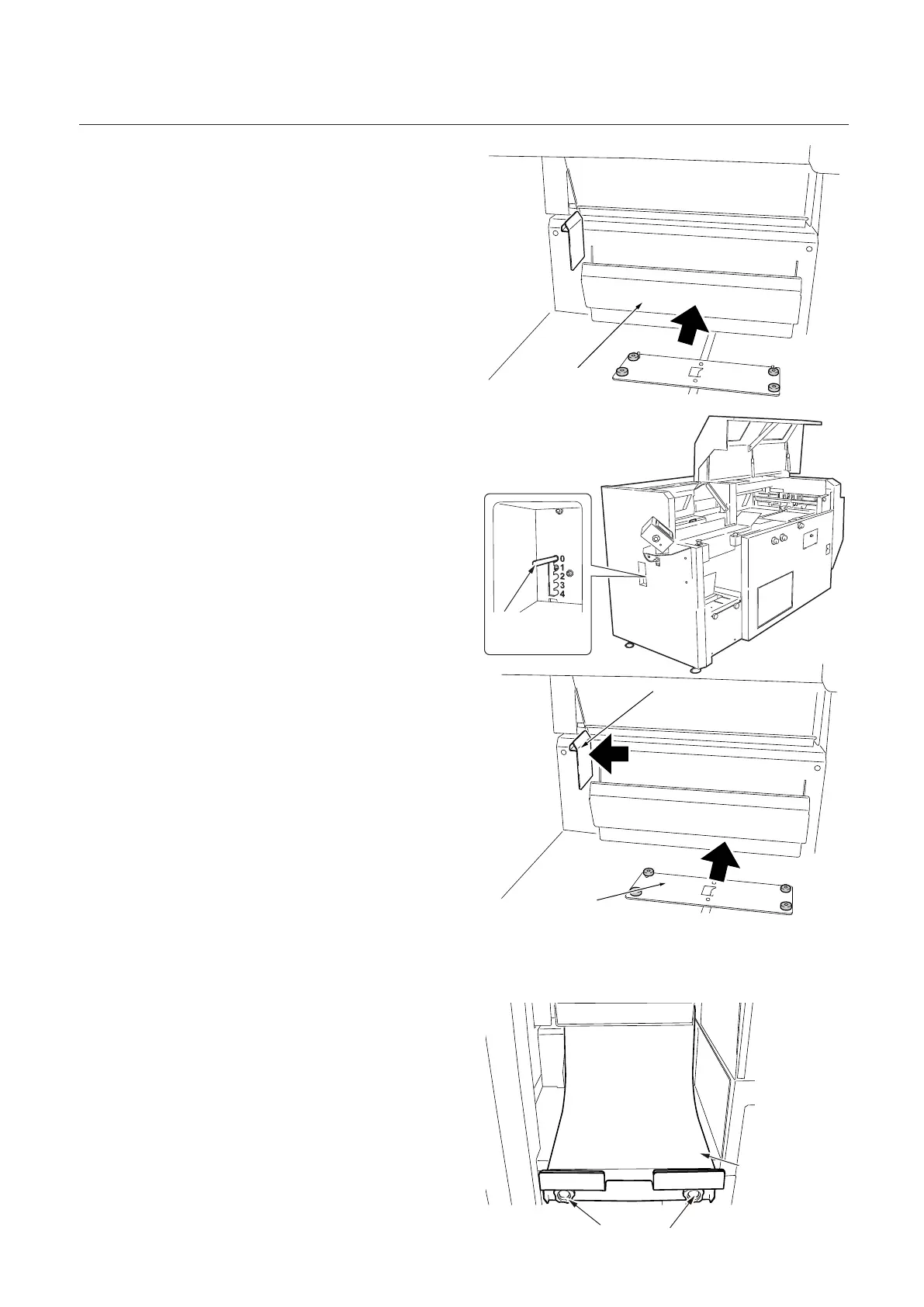

Movable stacker
5.
Check that the movable stacker
has been pushed backward (non-
operator's side).
Book exit
damper
adjustment
6.
Check that the book exit damper
adjustment lever is set to "0."
Stacker stopper base
Stacker side guide
7.
Move the stacker side guide to the
left side.
8.
Move the stacker stopper base to the
non-operator's side by hand.
Knob bolt
Receiving
tray
9.
Place the supplied receiving tray as
shown in the figure and secure it to
the machine using the supplied knob
bolts (2).
