CHAPTER 3 STARTING BINDING OPERATION
Cover
Stack height
sensor adjustment

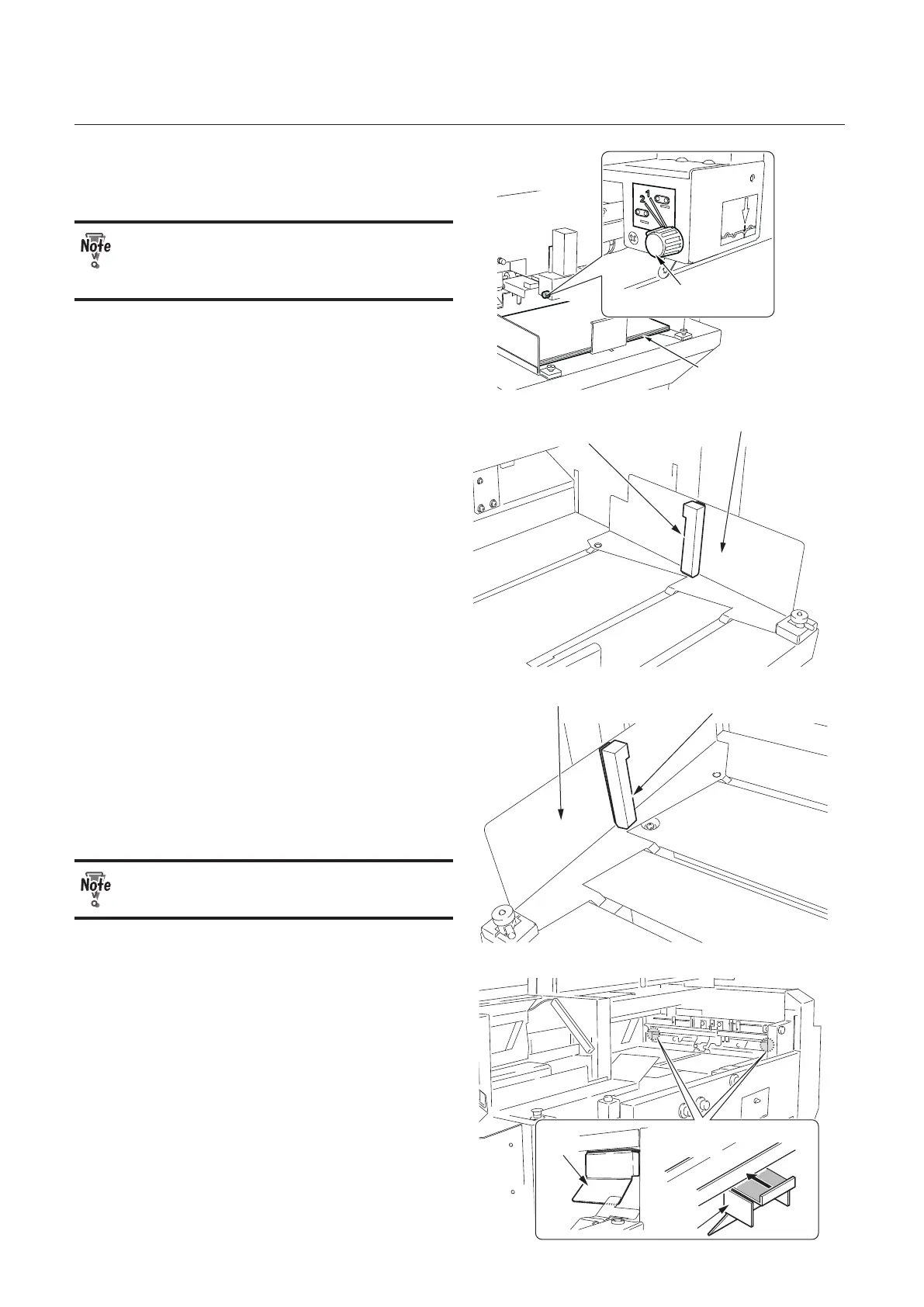

Set the stack height sensor adjustment to
"2."
Do not use the small cover feed belt
accessory for paper weighing 157g/m²
or more.
Small cover guide (R)
Paper feed guide (back)
Small cover guide (R)
(For a cover with the length of 170 mm (6.69
inches) or less)
The small cover guide holds down the tail
edge of a cover. Attach the magnet surface
of the small cover guide (R) to the paper
guide (back).
Small cover guide (L)
Paper feed guide (front)
Small cover guide (L)
(For a cover with the length of 170 mm (6.69
inches) or less)
The small cover guide holds down the tail
edge of a cover. Attach the magnet surface
of the small cover guide (L) to the paper
guide (front).
Do not load paper as high as 41 mm (1.61
inches) or more.
Press the guide firmly
to the machine.
Guide
Guide
Guide
When a cover does not fit into the nipper
guides because of its curled edge, attach
the magnet surface of each guide to the
either side of the scoring section.
