Duplo DPB-500 User Manual

3-26
CHAPTER 3 STARTING BINDING OPERATION

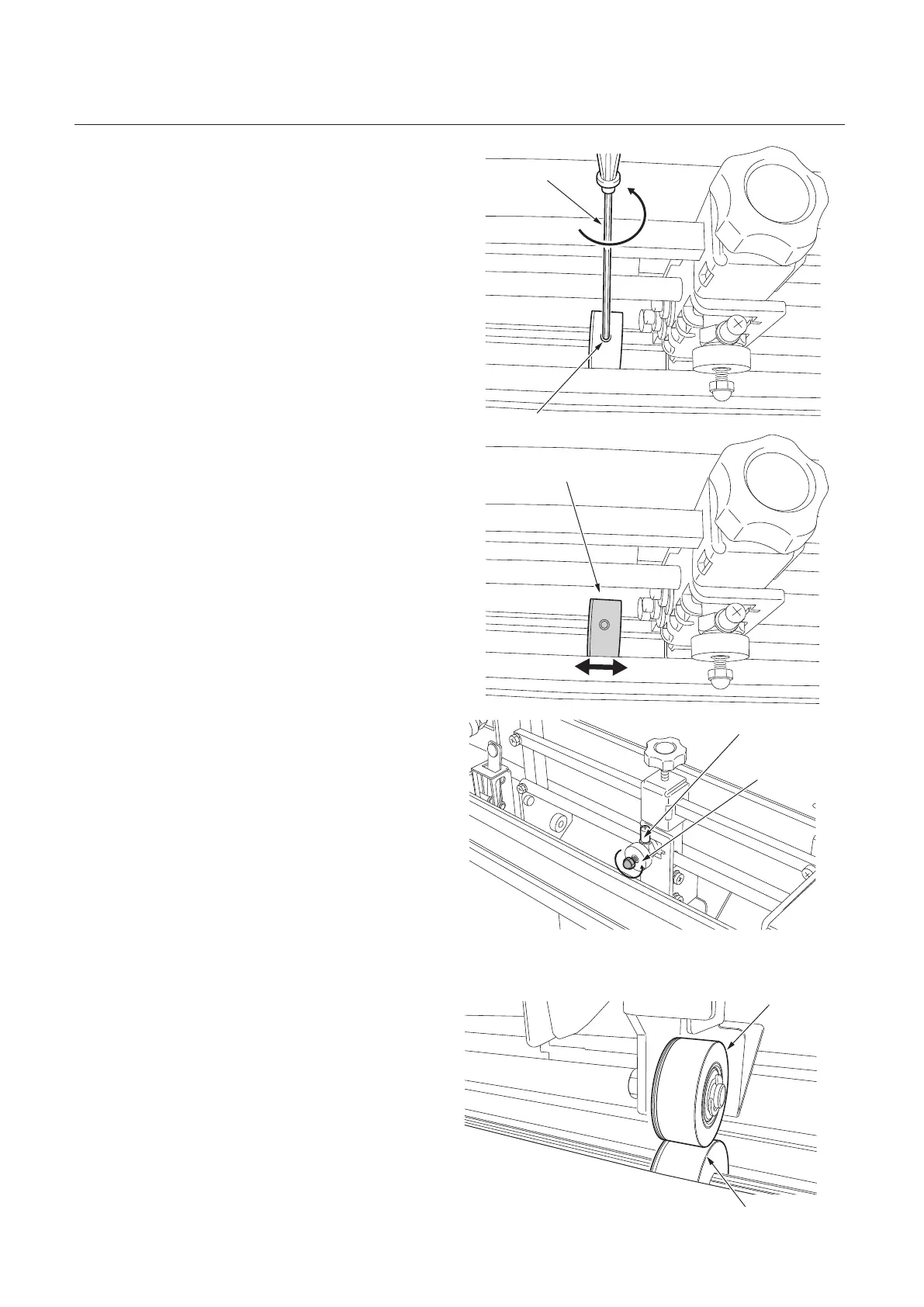

Fixing screw
Wrench
3.
Loosen the fixing screw (1) of the
lower scoring roller by turning it
counterclockwise using the supplied
wrench (opposite side distance 2
mm).
Lower scoring roller
4.
Move the lower scoring roller to the
desired position for scoring.
5.
Fasten the fixing screw (1) of the
lower scoring roller by turning it
clockwise using the supplied wrench
(opposite side distance 2 mm).
Scoring depth adjustment
Knob
6.
Loosen the knob of the upper
scoring roller and put the scoring
depth adjustment in the upright
position.
Lower scoring roller
Upper scoring roller
7.
Move the upper scoring roller to the
same position as the lower scoring
roller.
