DURKOPP ADLER 669 ECO - Tilting the Machine Head

Operation
Operating Instructions 669 - 00.0 - 08/2019 45
4.11 Tilting the machine head

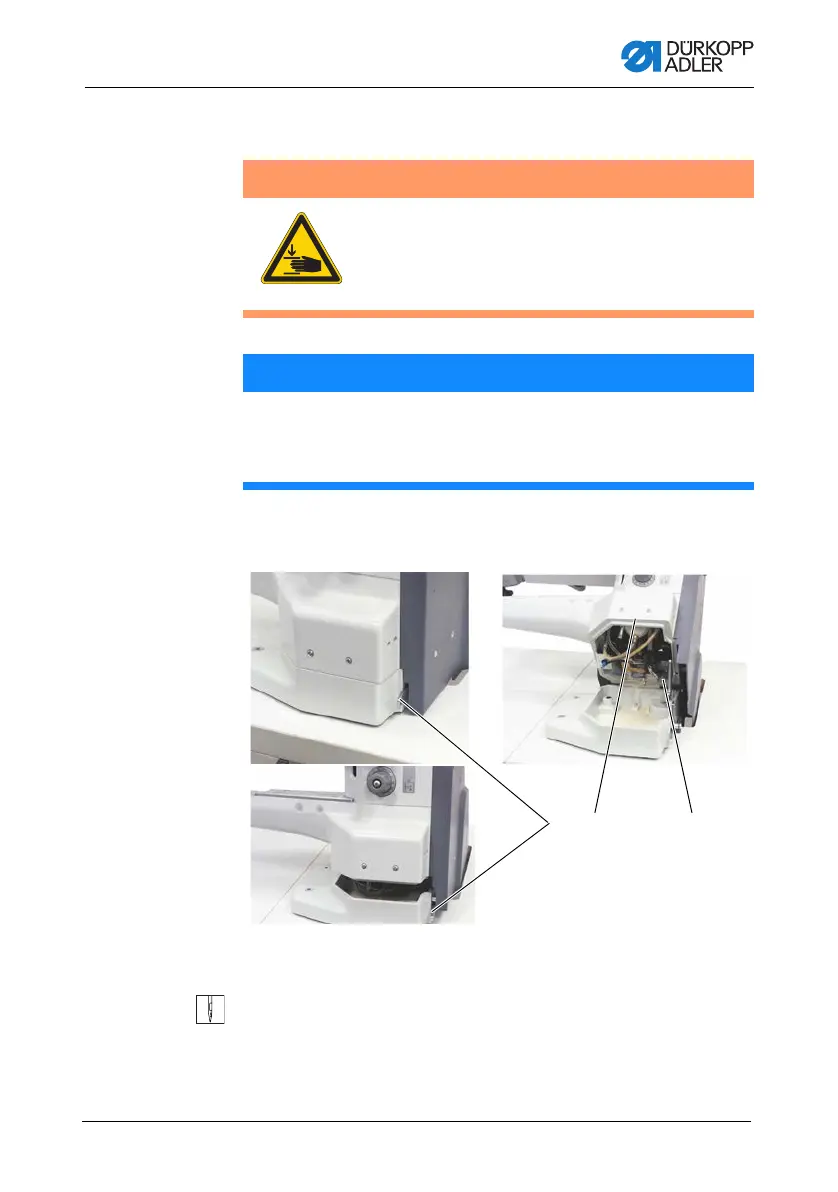

Fig. 20: Tilting the machine head
To tilt the machine head:
1. Press lever (1) upwards.
 The locking mechanism is then released.
WARNING
Risk of injury from moving parts!
Crushing possible.
DO NOT reach between base and machine arm
when tilting the machine head.
NOTICE
Property damage may occur!
Oil leakage possible.
Tilt the machine head only briefly.
(1) - Lever
(2) - Strap
(3) - Machine head
