Setup
78 Operating Instructions 669 - 00.0 - 08/2019
6.7 Assembling the operating panel

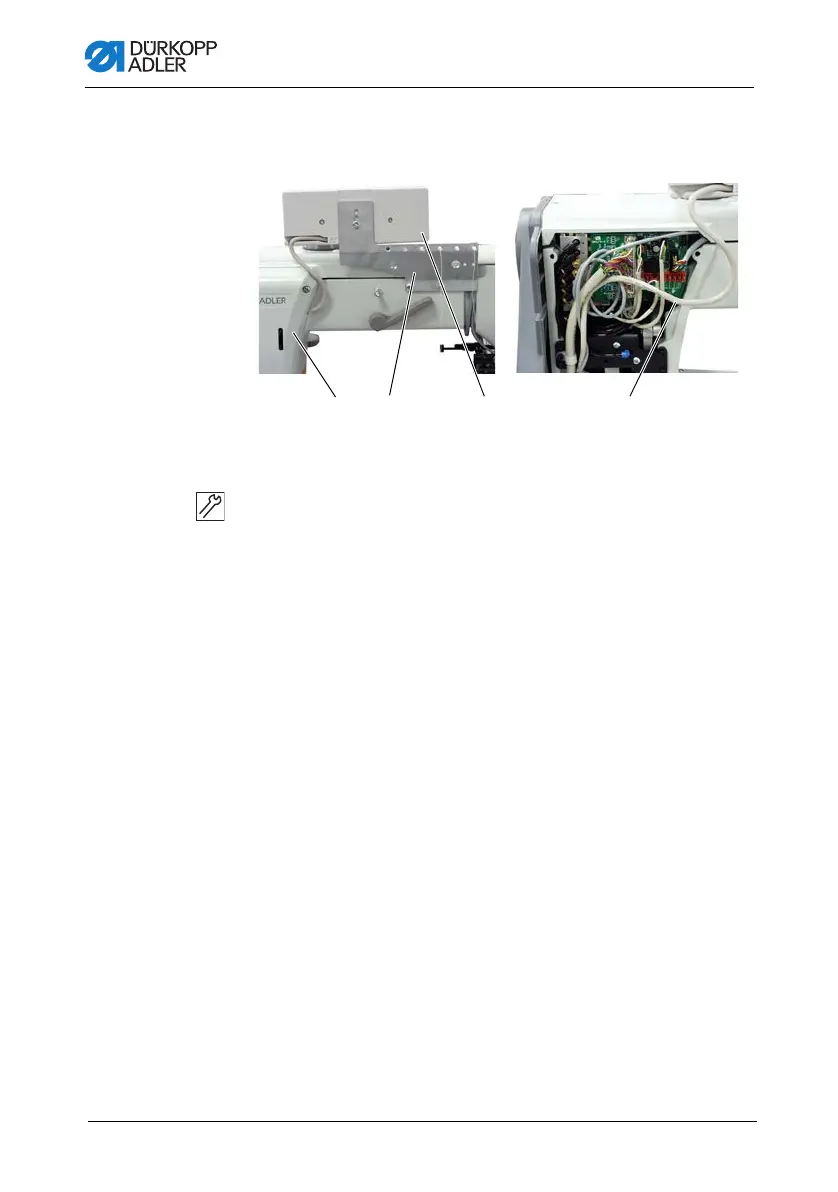

Fig. 45: Assembling the operating panel
To assemble the operating panel:
1. Screw on operating panel (1) along with the thread guide (2).
2. Take off the valve cover (3).
3. Route the cable (4) in the machine arm and then downwards
through the opening in the tabletop.
4. Plug in the cable plug into the B776 socket on the control.
5. Put the valve cover (3) back on.
(1) - Operating panel
(2) - Thread guide
(3) - Valve cover
(4) - Cable
