6.4.7 Assemble support on table plate with cut-out
(stand MG 55-3)
In order to increase the stability of the right side of the tabletop (1),
the plate is support by a junction bar (2).

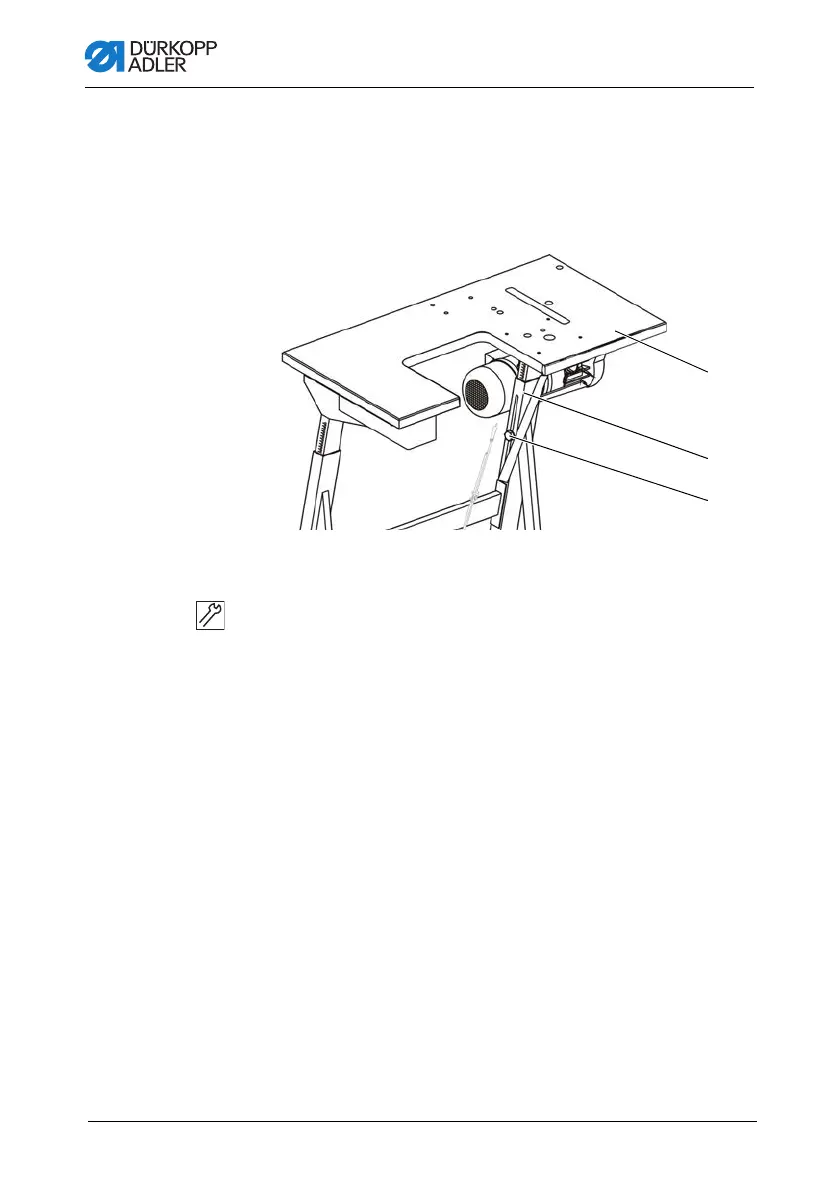

Fig. 42: Assemble support on table plate with cut-out
To assemble the support:
1. Fasten junction bar (2) to the stand using screw (3).
2. Fasten junction bar (2) to the bottom of the tabletop (1) using
wood screws.
(1) - Right side of tabletop
(2) - Junction bar
(3) - Screw
