6.4.6 Assembling the tabletop to the stand MG 56-3

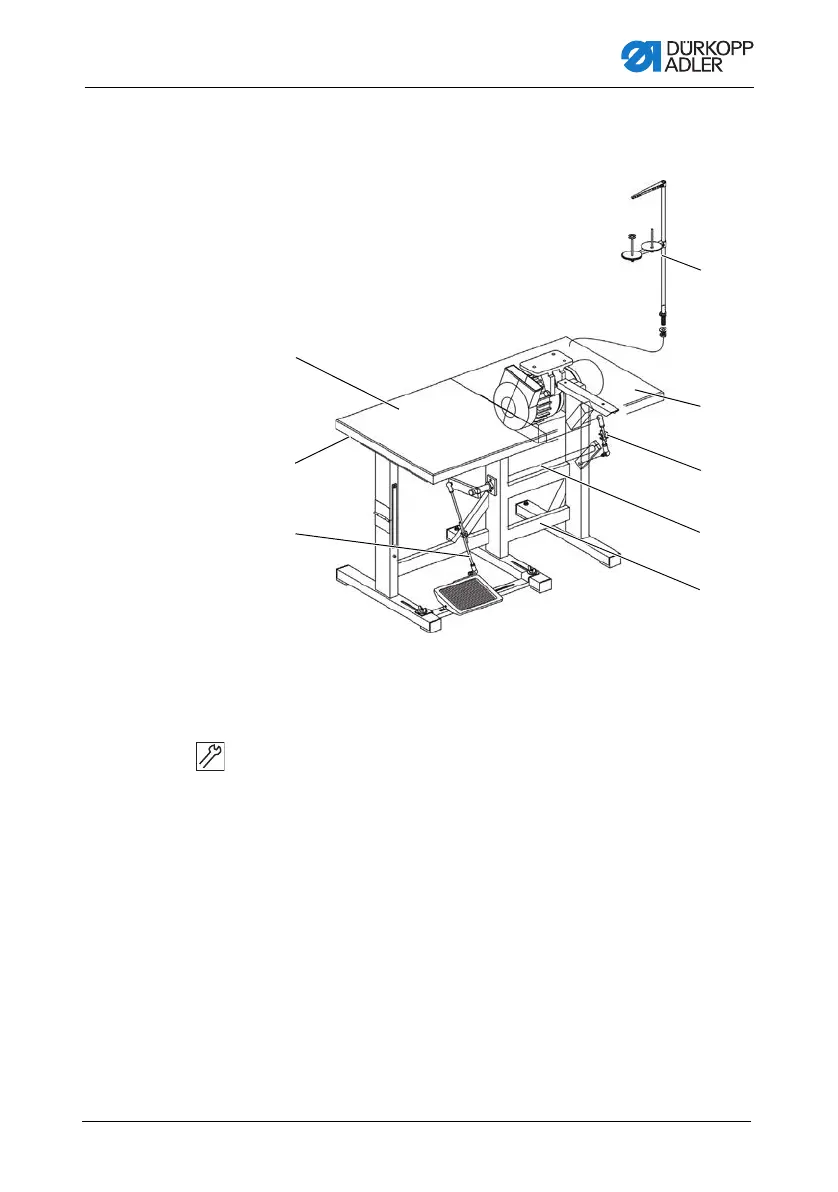

Fig. 41: Assembling the tabletop to the stand
To assemble the tabletop to the stand:
1. Fasten the tabletop (2) to the stand (5) using woodscrews.
Pre-drill the holes for the wood screws.
2. Fasten the tableplate (8) to the latch (7) using woodscrews.
3. Attach the rod (6) onto the pedal and the actuating lever (4)
(only for FIR clutch motor).
4. Attach the rod (3) onto the actuating lever (4) and motor.
5. Put the reel stand (1) into the drilled hole in the tabletop (2).
Fasten with nut and washer.
6. Mount and align the reel holders and thread guide.
The thread guide must be positioned above the reel holders.
(1) - Reel stand
(2) - Tabletop
(3) - Rod
(4) - Actuating lever
(5) - Stand
(6) - Rod
(7) - Latch
(8) - Tabletop
