4.5 BATTERY PACK 4 Replacement Procedures
PORTÉGÉ X30W-J, dynabook V*/VZ*/VC* Series Maintenance Manual (960-941) [CONFIDENTIAL] 4-21

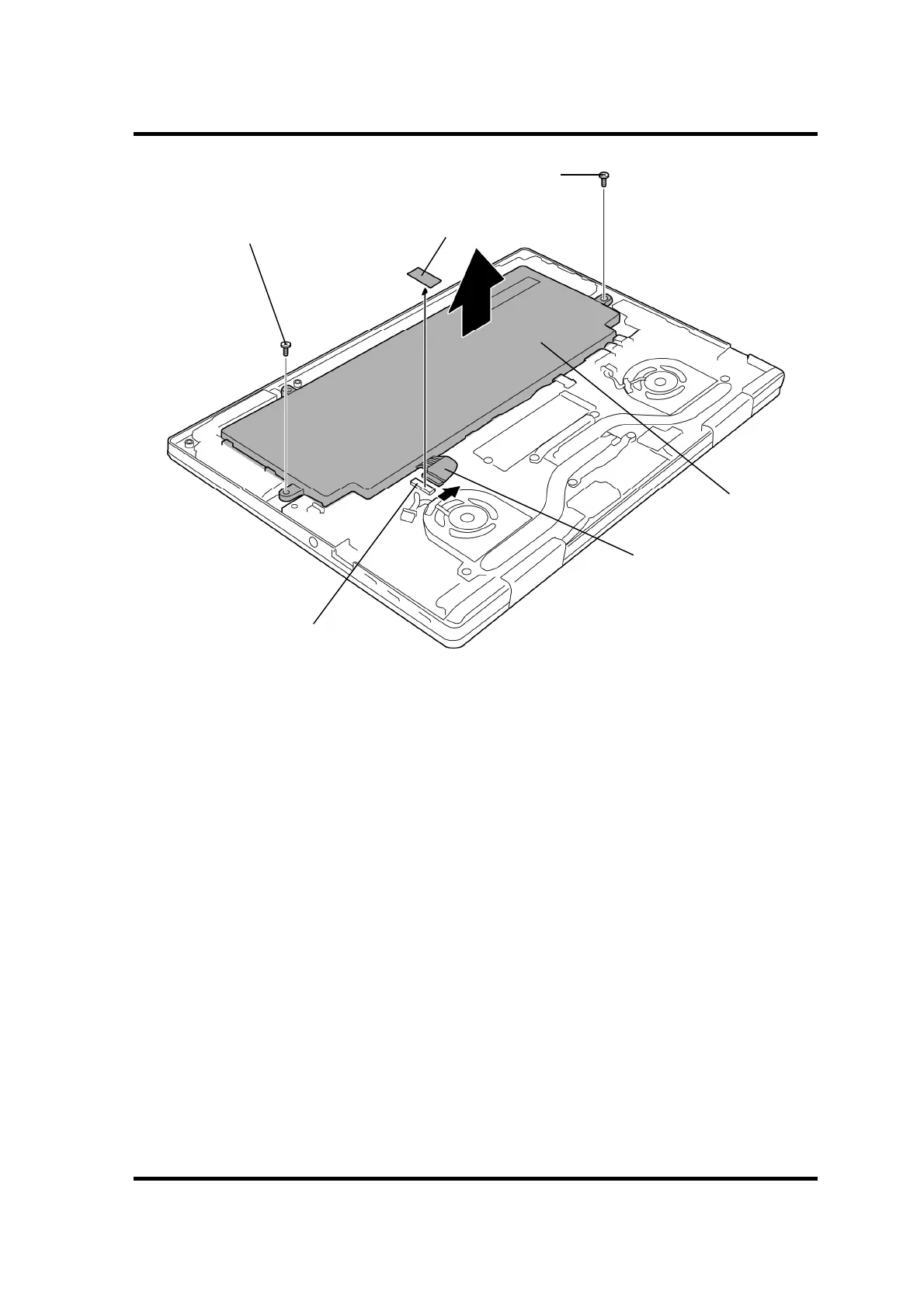

Figure 4-5 Removing the BATTERY PACK
BATTERY PACK
BATTERY HARNESS
CN8021
M2x4C S-THIN HEAD
M2x4C S-THIN HEAD
INSU SQUARE
