MODEL 424 DYNOWARE RT UPGRADE WITH EDDY CURRENT BRAKE
DynoWare RT Installation
Version 5 DynoWare RT Upgrade for Model 424x Dynamometers Installation Guide
4 Secure the split hub and disk to the dyno shaft using two 1/4-20 x 1-1/8 socket-
head screws.
5 Secure the inner bracket to the dyno using two 3/8-16 x 1-inch bolts and 
two 3/8-inch nuts.

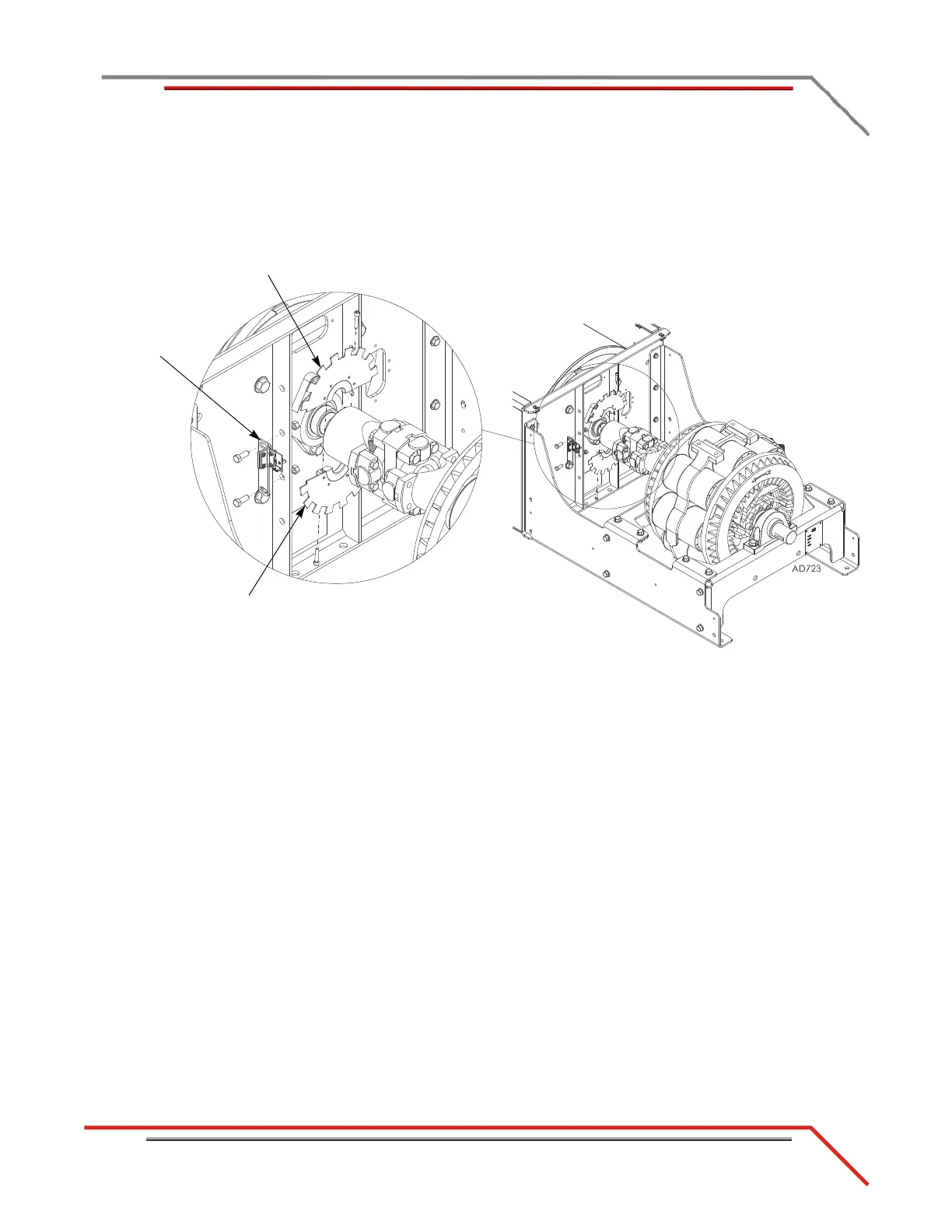

Figure 3-9: Installing the Split Disk and Speed Pickup Card
split disk
inner bracket
split disk
