CHAPTER 3
DynoWare RT Installation
DynoWare RT Upgrade for Model 424x Dynamometers Installation Guide
3-16
INSTALLING THE EDDY CURRENT BRAKE DRIVER—IN GROUND DYNOS
Install the eddy current brake driver on both the stationary and 4WD dyno.
1 Secure the mounting brackets to the eddy current brake driver using two 
4-40 x 1/4-inch screws each.
2 Secure the four bumpers to the mounting brackets using four 8-32 x 3/8-inch
screws.

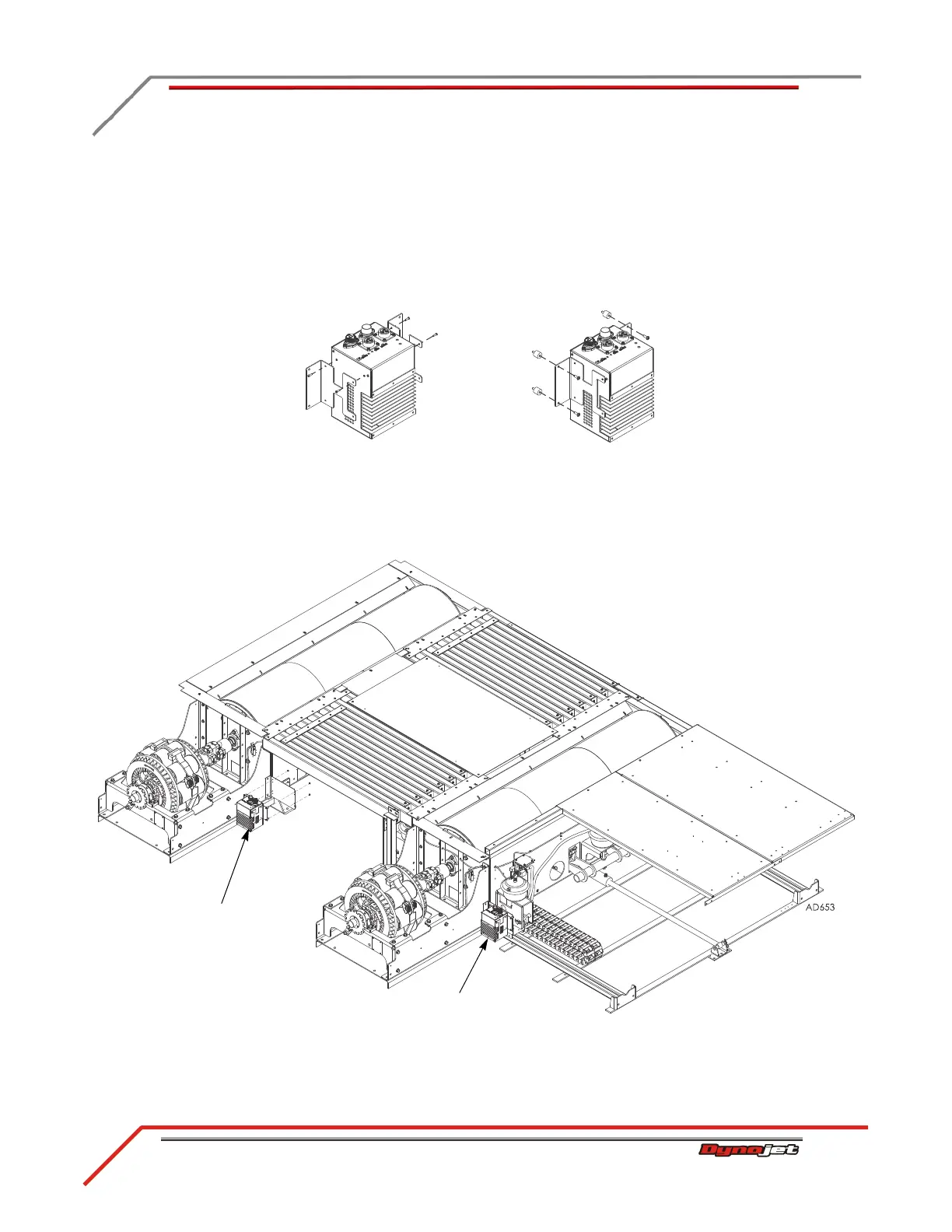

Figure 3-13: Install the Mounting Brackets and Bumpers
3 Install the eddy current brake driver to the bracket using four 8-32 nuts.
Figure 3-14: Install the Eddy Current Brake Driver—In Ground
install bumpers
install mounting
brackets
eddy current brake
driver
eddy current brake
driver
