VERIFYING THE SAAR BRAKE PRESSURE
1 Verify the SAAR brake pressure gauge reads 100psi (690kPa).
2 Using the knob, adjust the regulator until the correct pressure is achieved.

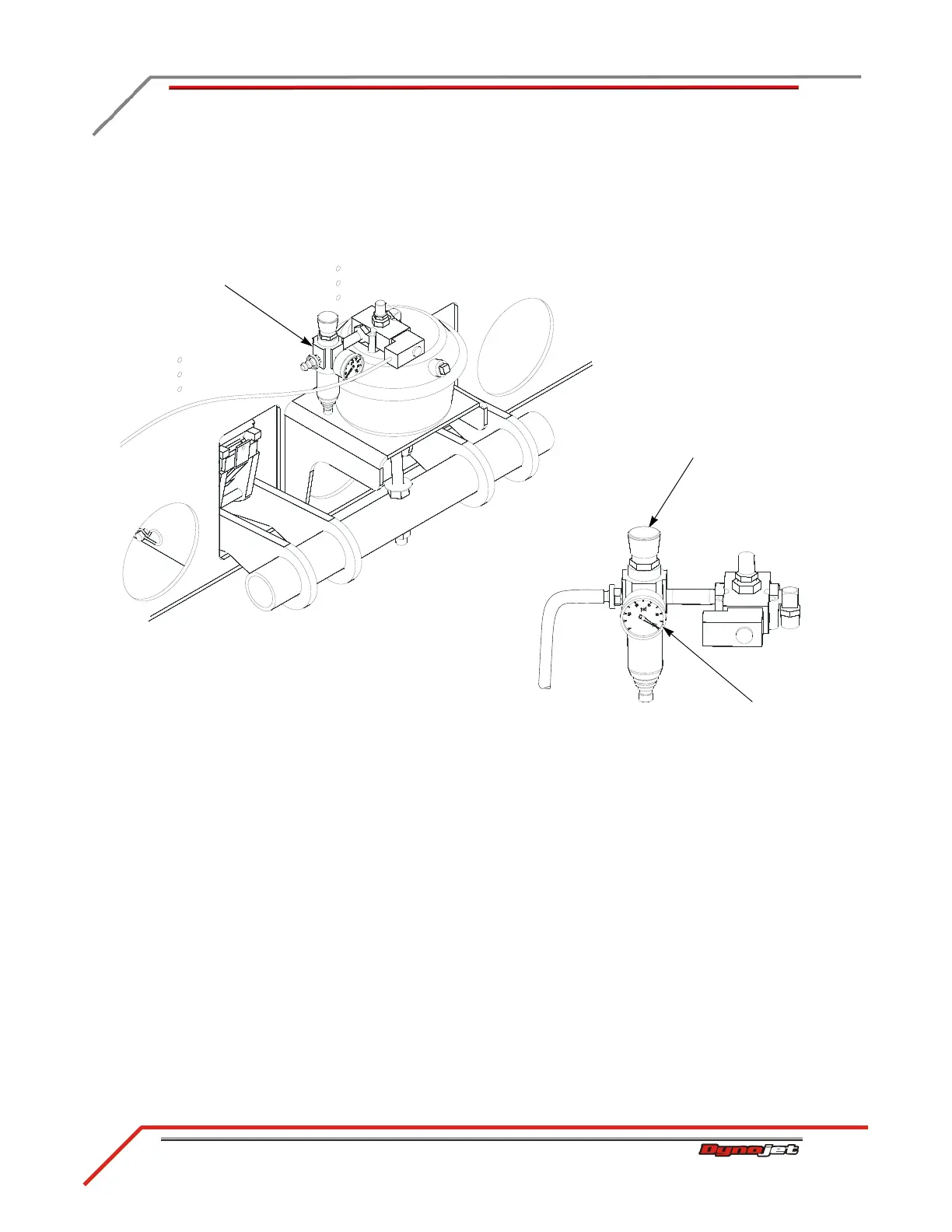

Figure 4-6: Verify the SAAR Brake Pressure and Adjust the Regulator
AB096
use the knob to adjust the
regulator until the correct
pressure is achieved
brake pressure
regulator
0
AB095
brake pressure gauge
100psi (690kPA)
